Diagram Set SD450 (Automatic Transmission Control System)
Diagram Set SD450 (Automatic Transmission Control System)
SD450-1 Automatic Transmission Control System (1):

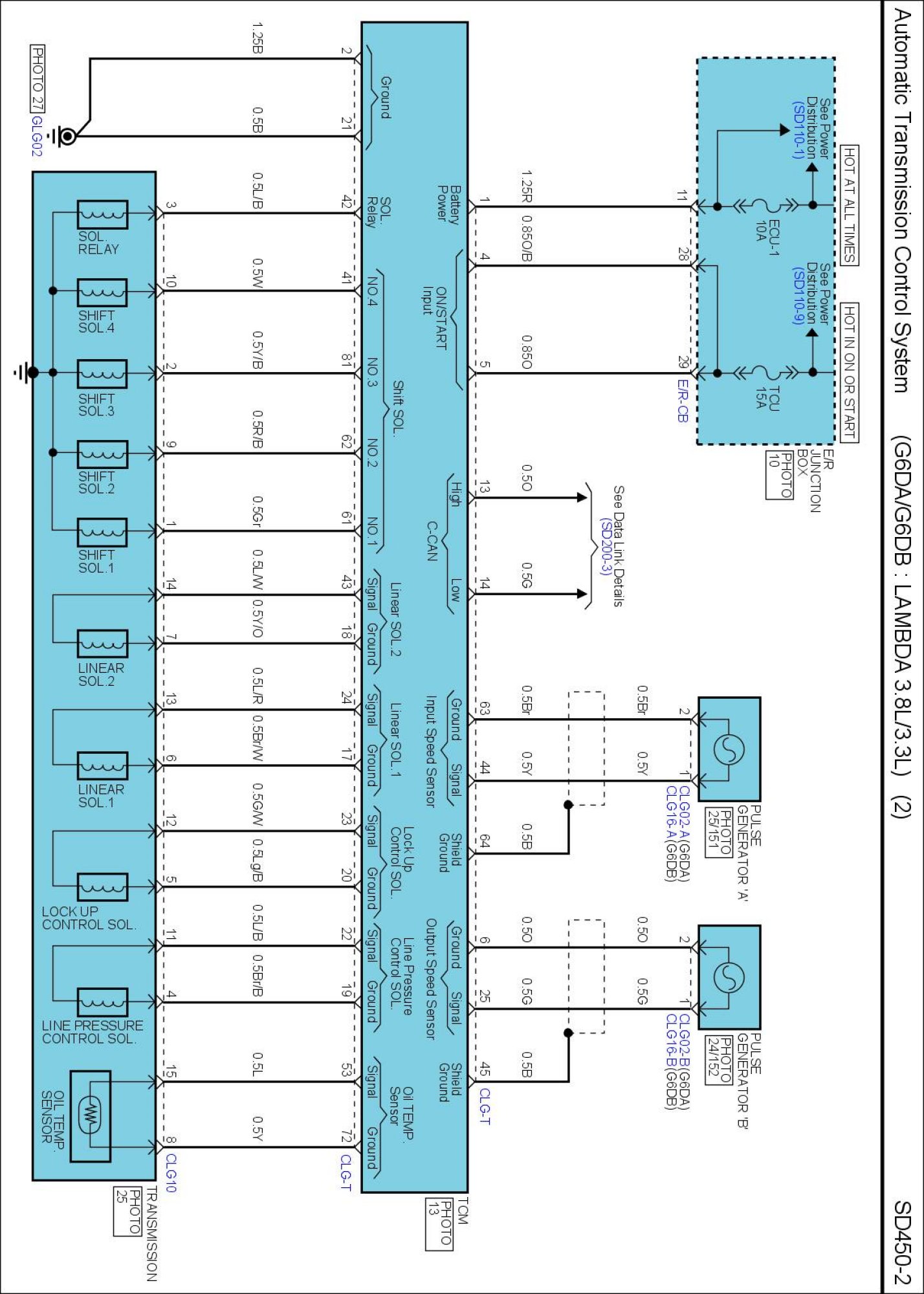

SD450-2 Automatic Transmission Control System (2):
