Diagram Set SD956 (Tire Pressure Monitoring System (TPMS))
Diagram Set SD956 (Tire Pressure Monitoring System (TPMS))

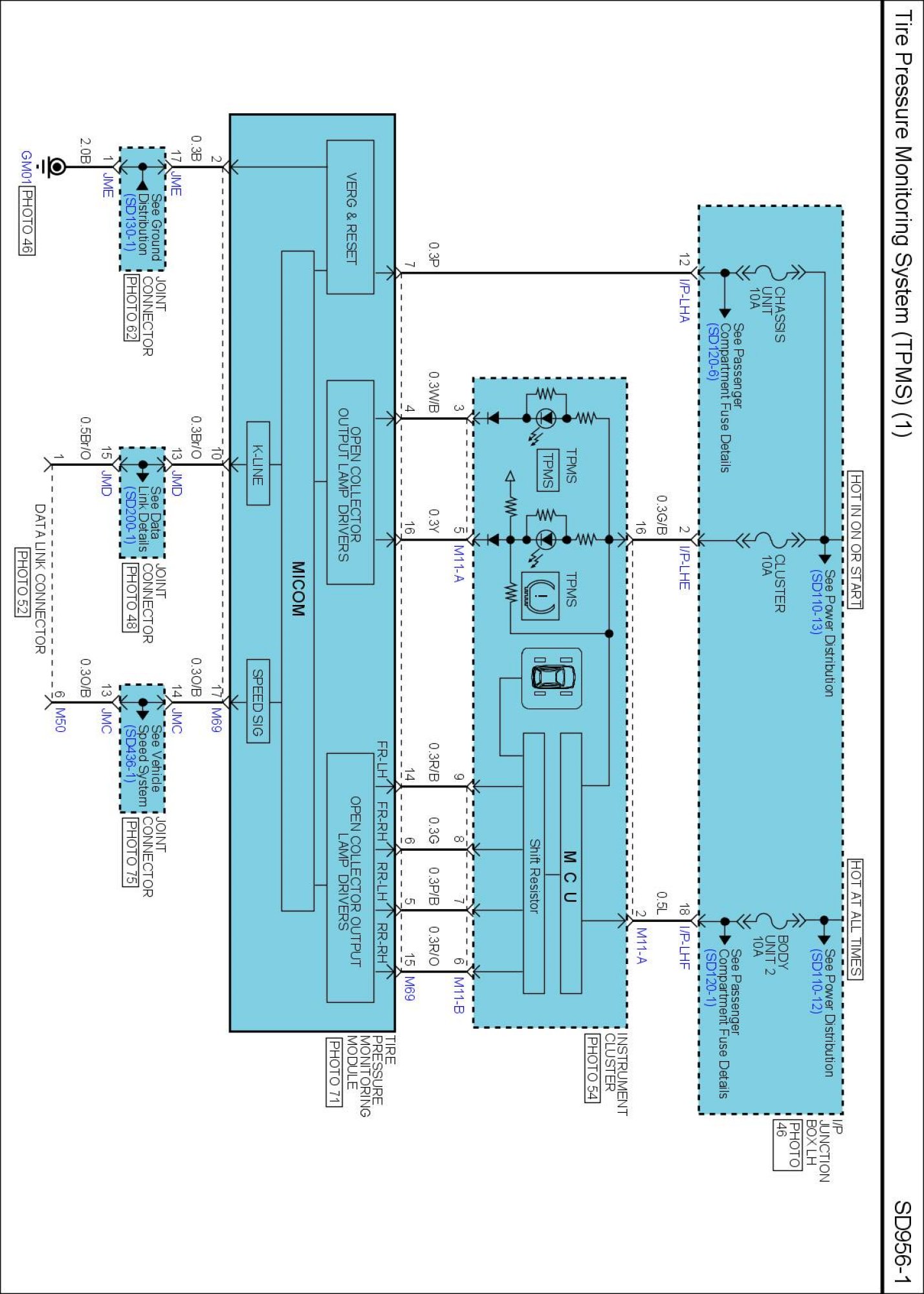

SD956-1 Tire Pressure Monitoring System (TPMS) (1):

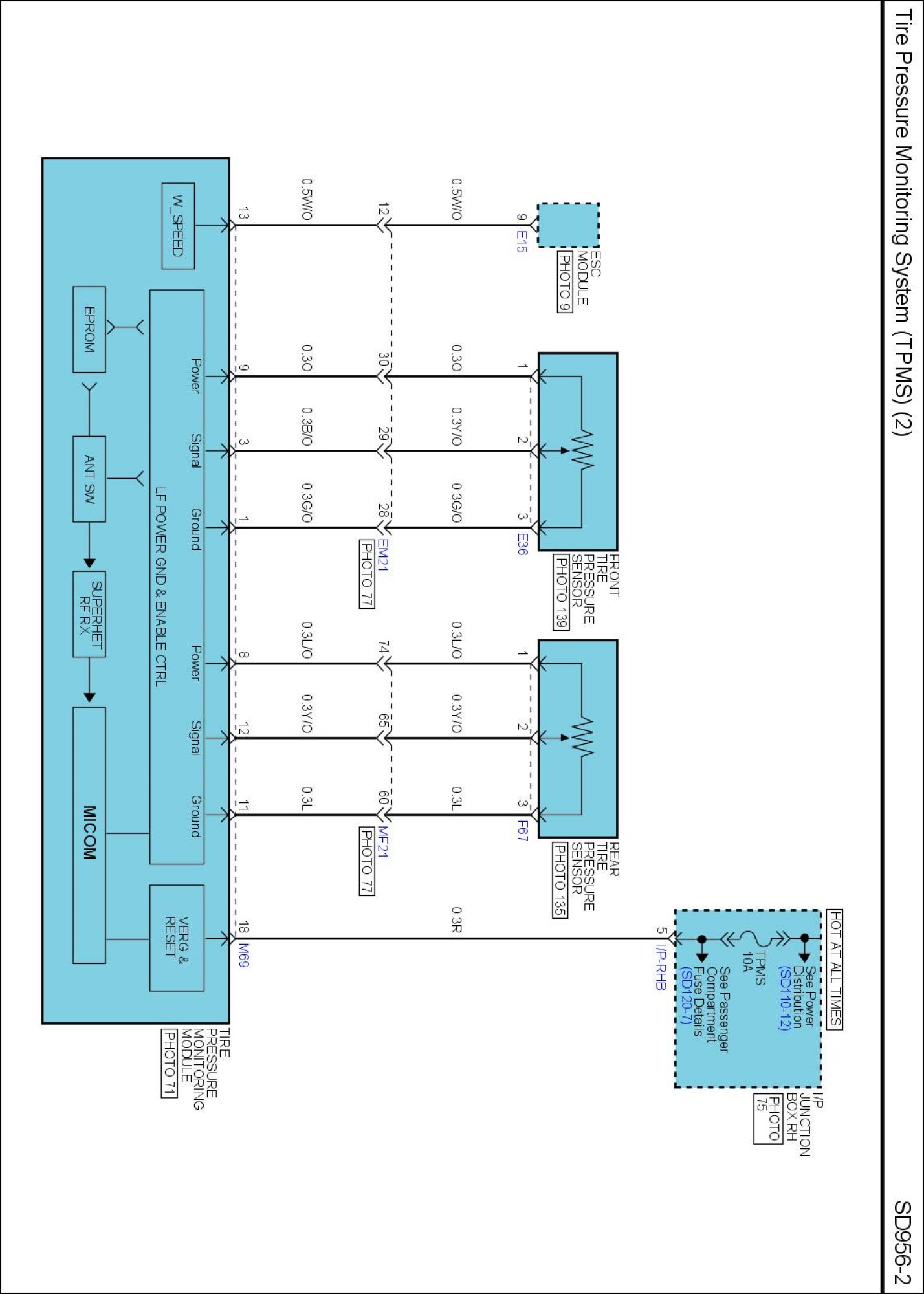

SD956-2 Tire Pressure Monitoring System (TPMS) (2):
