Auto Head Lamp Leveling System (AHLS)

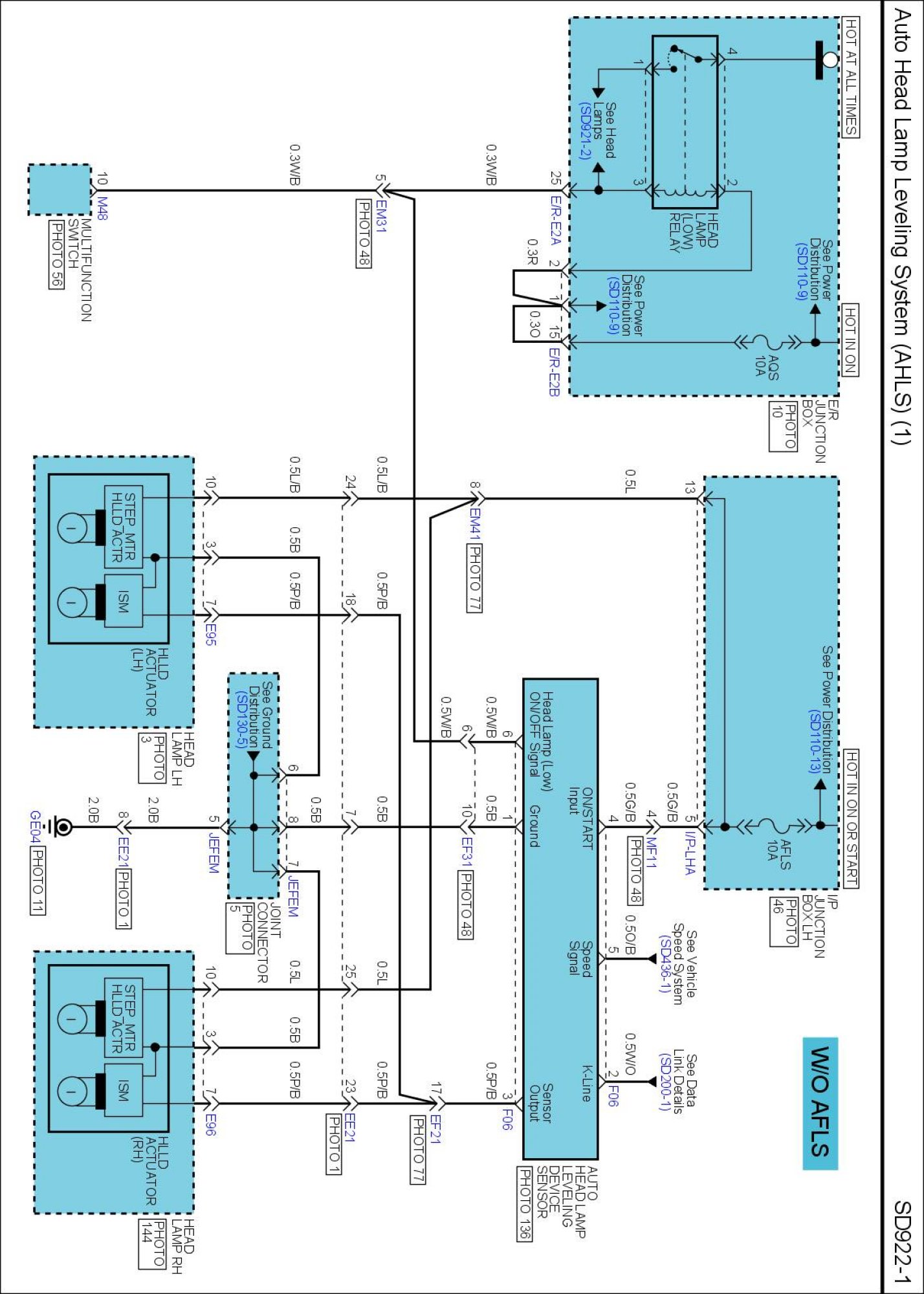

SD922-1 Auto Head Lamp Leveling System (AHLS) (1):

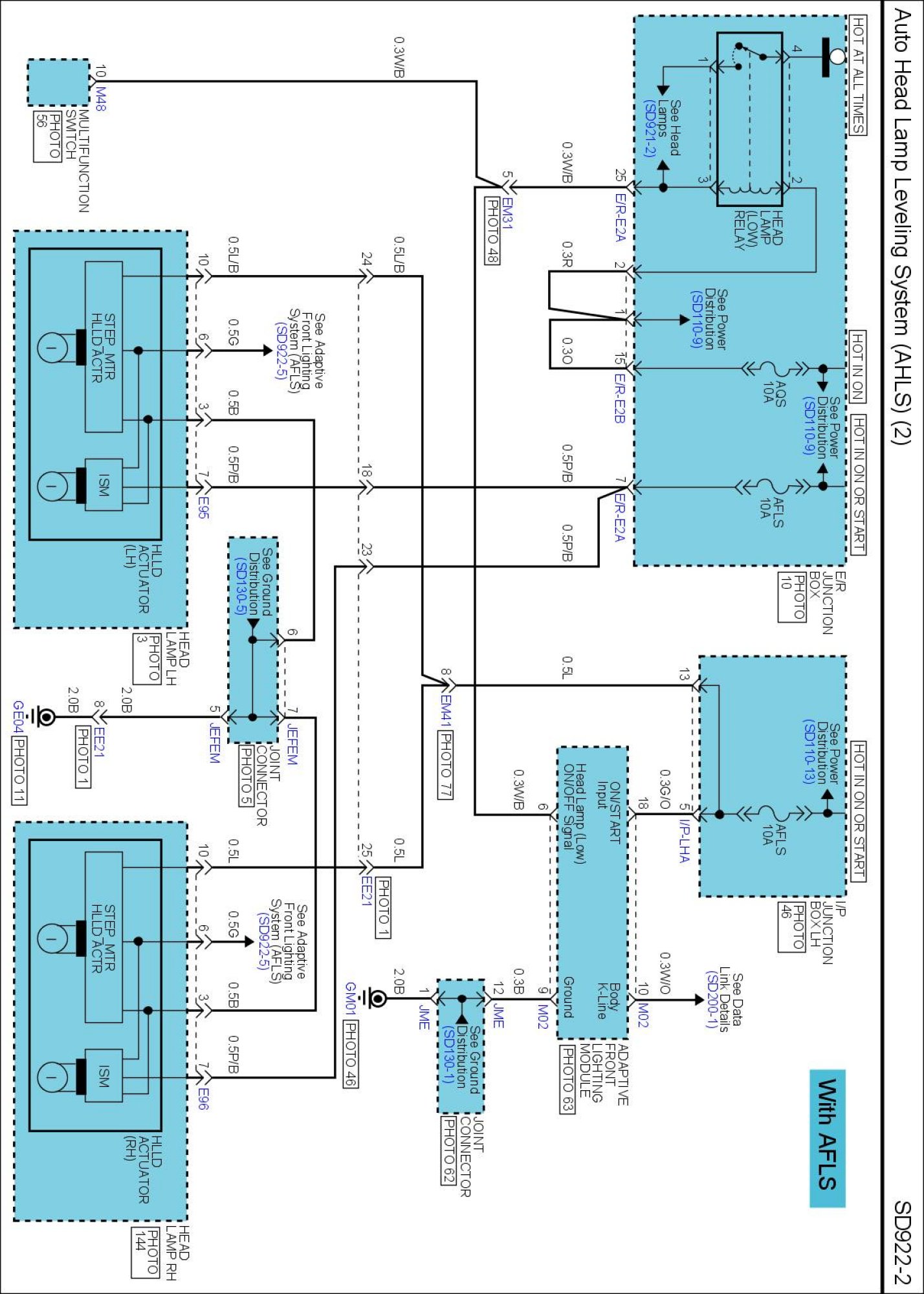

SD922-2 Auto Head Lamp Leveling System (AHLS) (2):

Auto Head Lamp Leveling System (AHLS) (3) Connector Pin Outs:

Diagrams: Other diagrams referred to by SD number (i.e. SD130-4, etc.) within these diagrams can be found at Diagrams by Number. Diagrams by Number

Locations: Location photographs (references to PHOTOS) referred to within these diagrams can be found via the photo number at the vehicle level under Locations by Photo Number. Locations by Photo Number
