Crankshaft Main Bearing

Main Bearing

Install the main bearing cap bolts.

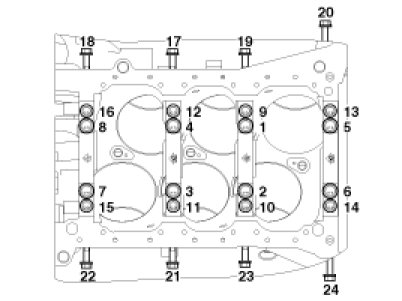

Install and uniformly tighten the bearing cap bolts, in several passes, in the sequence shown.

Tightening torque :
Main bearing cap bolt
49.0 N.m (5.0 kgf.m, 36.2 lb-ft) + 90° (1 - 8)
19.6 N.m (2.0 kgf.m, 14.5 lb-ft) + 120° (9 - 16)
29.4 - 31.4 N.m (3.0 - 3.2 kgf.m, 21.7 - 23.1 lb-ft) (17 - 24)

NOTE:
- Always use new main bearing cap bolts.
- If any of the bearing cap bolts are broken or deformed, replace it.

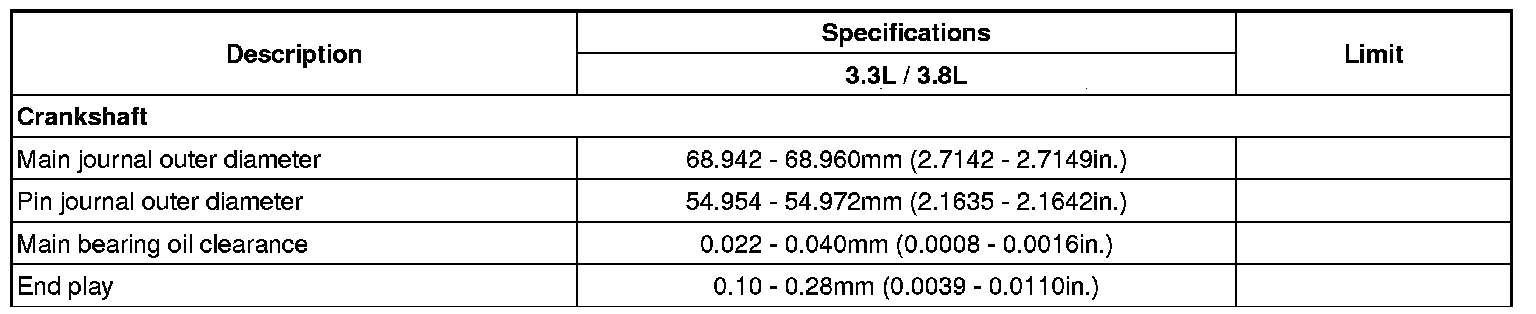

Crankshaft

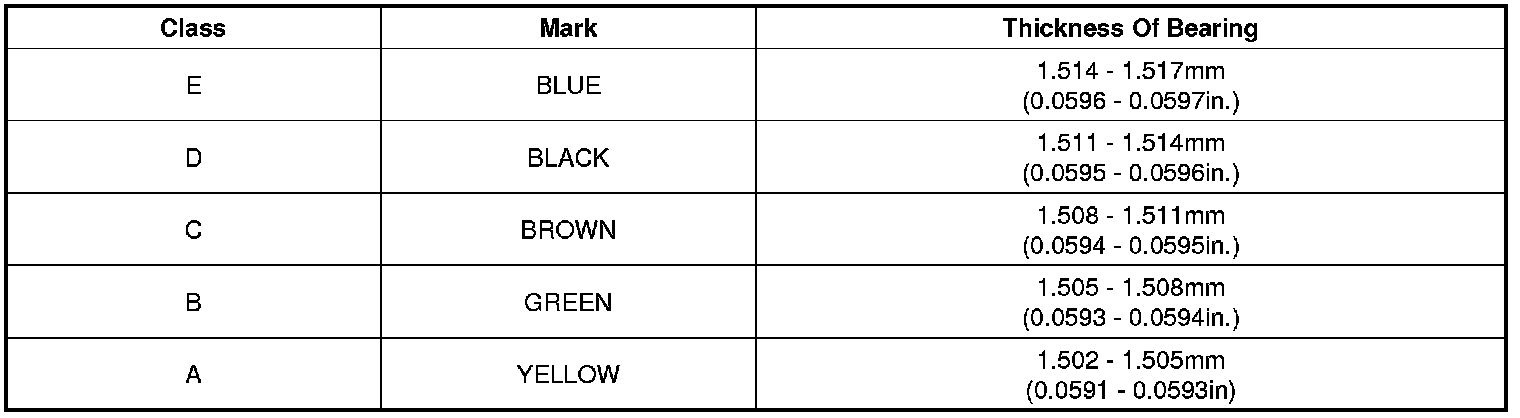

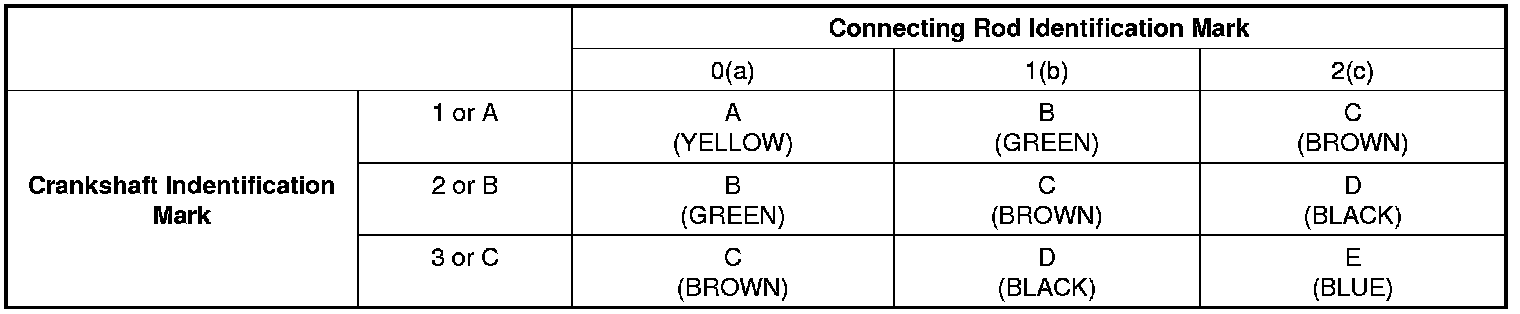

Place Of Identification Mark (Connecting Rod Bearing)
