Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2011
>>
Genesis Sedan V8-4.6L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Blower Motor Relay
>>
Locations
Blower Motor Relay: Locations
Fuse & Relay Information
E/R Junction Box View:
E/R Junction Box Circuit:

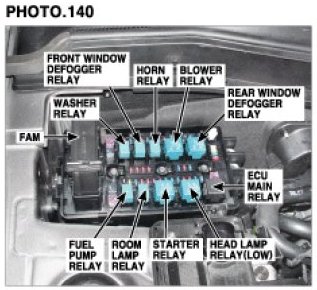

Photo 140
