Component Inspection

Engine Control

P0532 A/C Refrigerant Pressure Sensor 'A' Circuit Low Input - Component Inspection

Component Inspection

1. IG 'OFF'.
2. Connect prove to signal terminal as below and select 'Oscilloscope' menu on GDS.
Channel A (+): Signal terminal of A/C pressure sensor, (-): Ground.
3. Engine start and check the signal with operation.

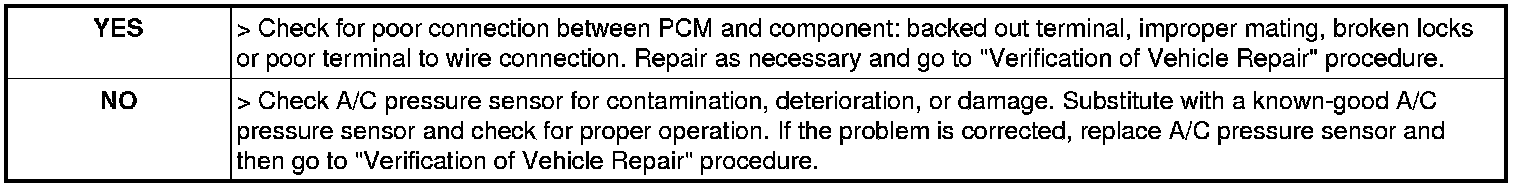

4. Is waveform within specification?
