Engine Oil Control Valve
Engine Oil Control Valve

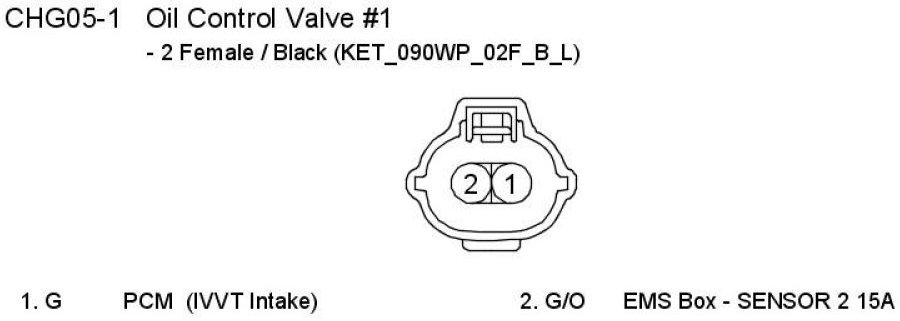

CHG05-1 Oil Control Valve # 1:

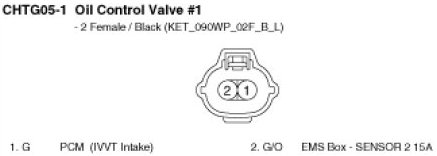

CHTG05-1 Oil Control Valve # 1:
CHG05-2 Oil Control Valve # 2:

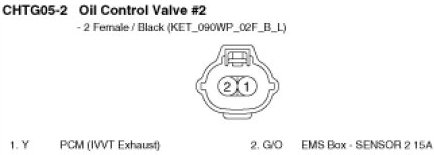

CHTG05-2 Oil Control Valve # 2:
