Home >> Hyundai >> 2011 >> Sonata L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Shift Solenoid, A/T

Shift Solenoid, A/T

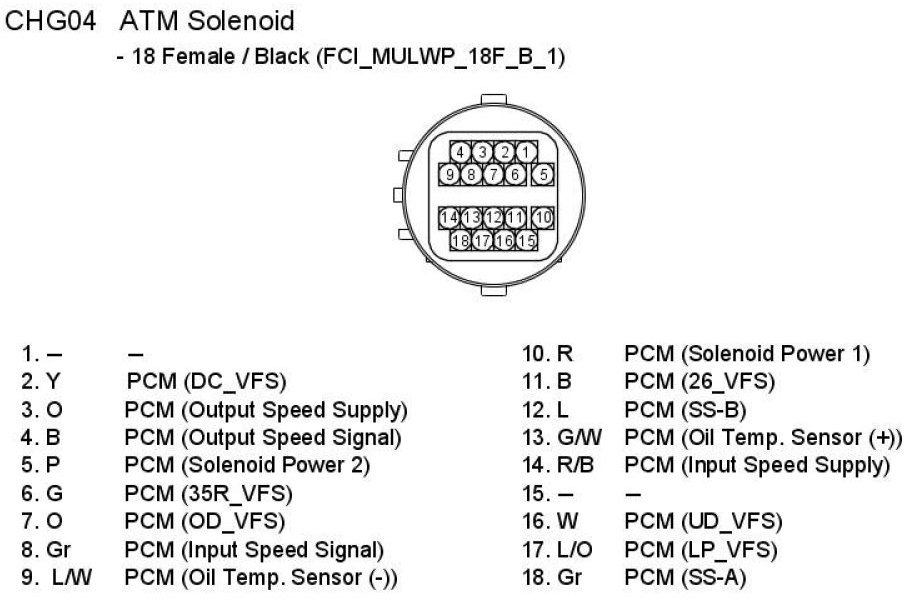

CHG04 ATM Solenoid:

CHTG04 ATM Solenoid:
