Exhaust Manifold
Turbo manifold module nuts:
49.0 - 53.9N.m (5.0 - 5.5kgf.m, 36.2 - 39.7lb-ft)

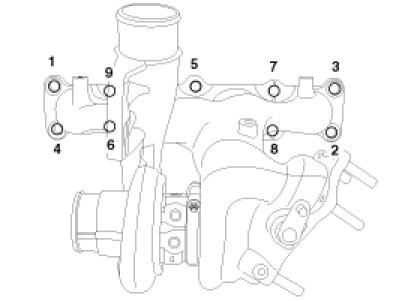

When installing the turbo manifold module , tighten the nuts with pre-torque first, and then tighten the nuts with specified torque in the sequence shown.
Turbo manifold module nuts:
49.0 - 53.9N.m (5.0 - 5.5kgf.m, 36.2 - 39.7lb-ft)
When installing the turbo manifold module , tighten the nuts with pre-torque first, and then tighten the nuts with specified torque in the sequence shown.
