Body - Front Passenger Area Creak Noise

NUMBER
11-BD-007

GROUP
BODY

MODEL(S)
SONATA (YF)

DATE
NOVEMBER, 2011

SUBJECT:
FRONT RASSENGER AREA BODY CREAK NOISE





Description:
This bulletin describes the procedure to inspect and repair vehicles that exhibit a creak noise from the front passenger area when making slow turns or going over ramps or bumps.

Applicable Vehicles:
2011 MY Sonata (YF) produced 9/1/10 through 5/12/11

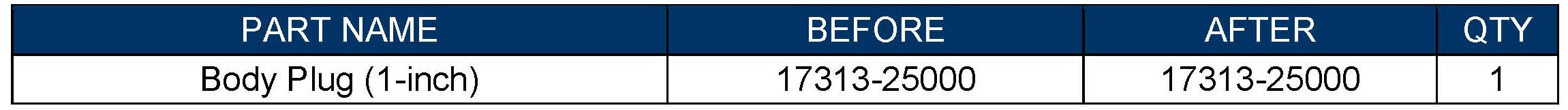

Parts Information:





Warranty Information:

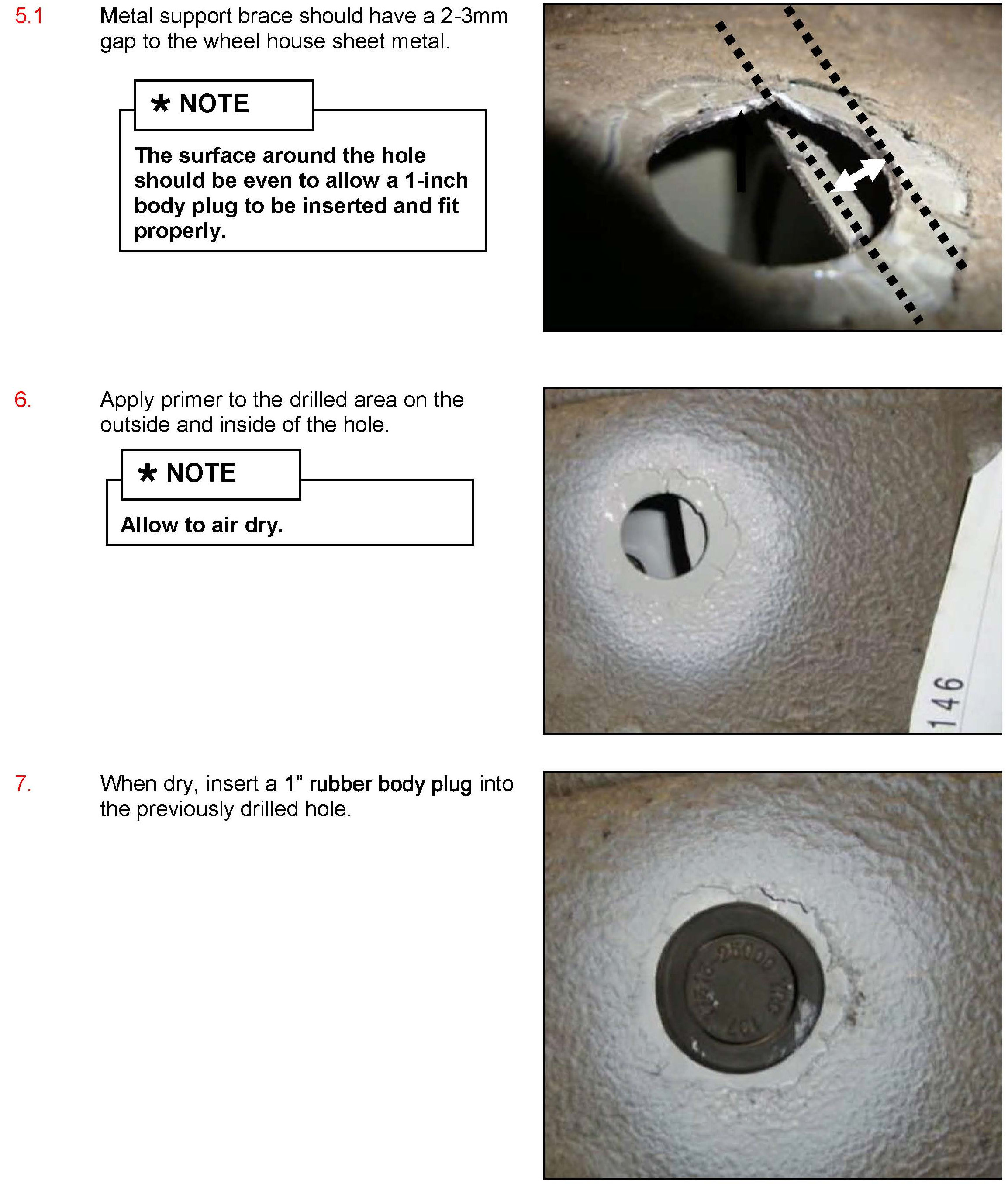

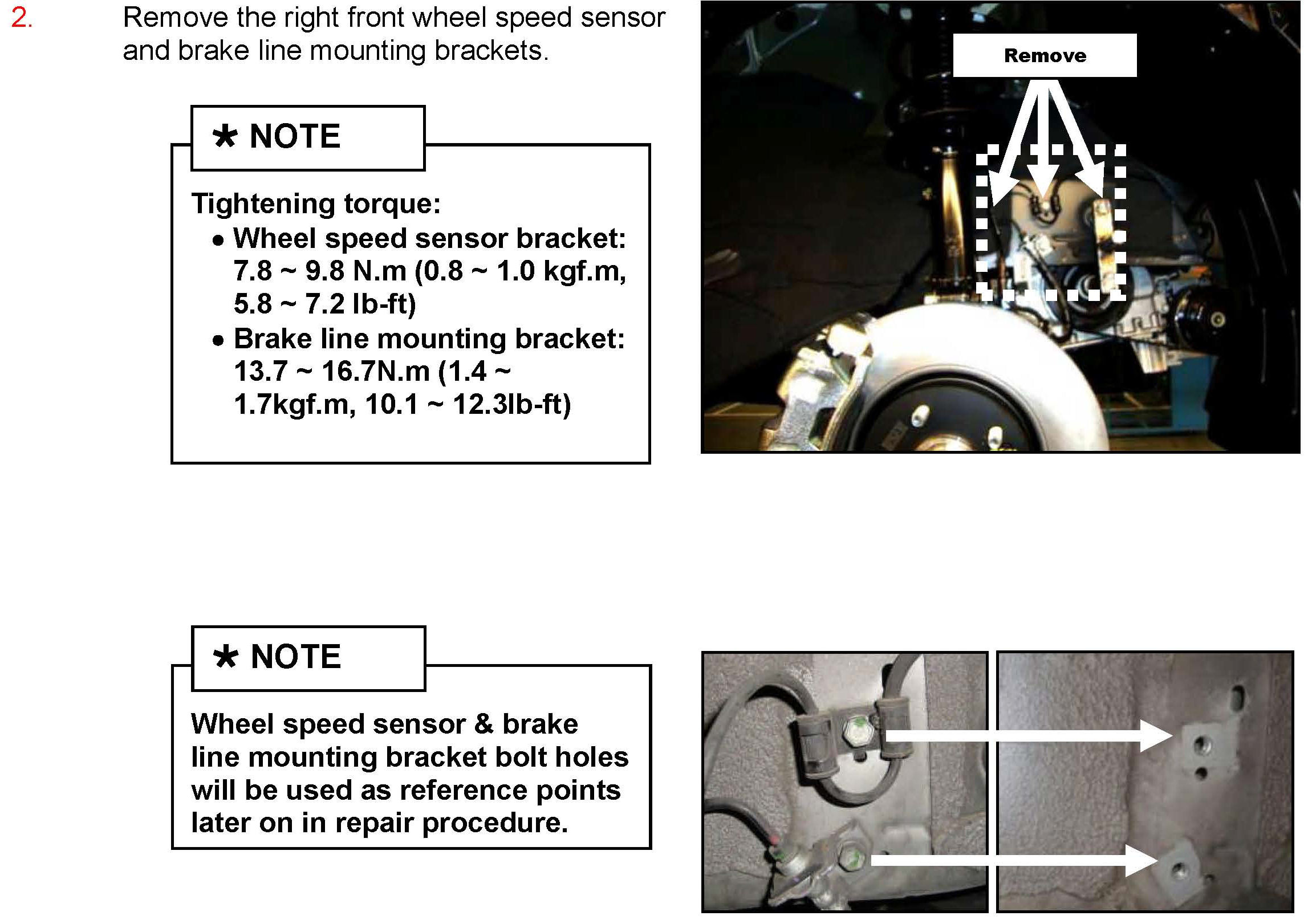

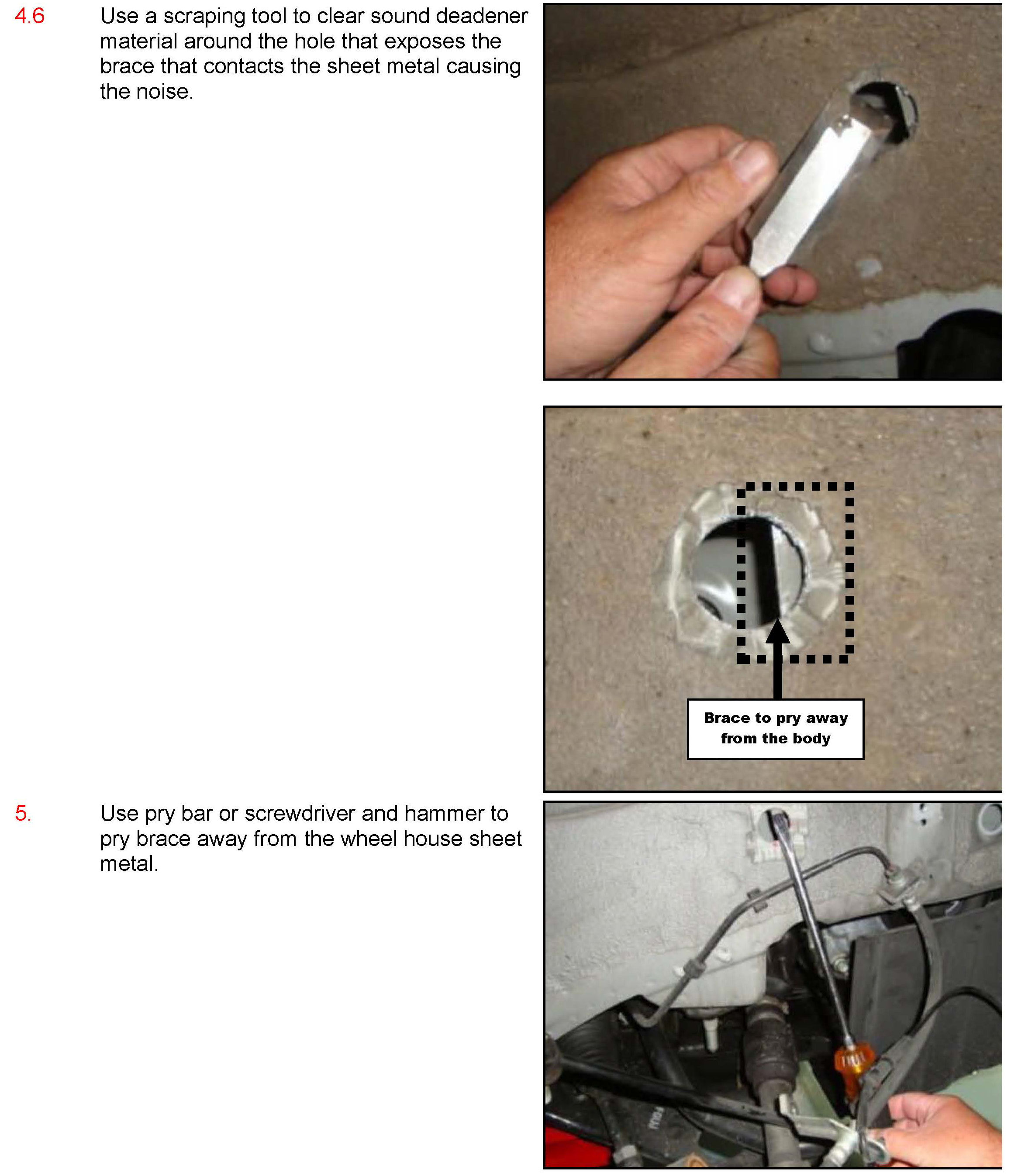

Inspection Procedure and Service Procedure
