Lighting - Headlamp Aiming Procedure
Group ELECTRICALNumber 10-BE-009
Date OCTOBER, 2010
Model SONATA (YF)
Subject
SONATA (YF) HEADLAMP AIMING PROCEDURE
DESCRIPTION
This bulletin provides instructions on how to aim the headlamps on the Sonata (YF).
VEHICLES AFFECTED:
Model: All Sonata (YF)
Applicable Vehicle Production Date Range: JOB #1 through current.
SERVICE PROCEDURE:
1. Identify a flat vertical surface or wall in a location to allow the vehicle to be parked so the headlamps are 25 feet from the wall / vertical surface.
a. The surface needs to be at least 10ft wide, 5ft to the left and right of the centerline of the vehicle.

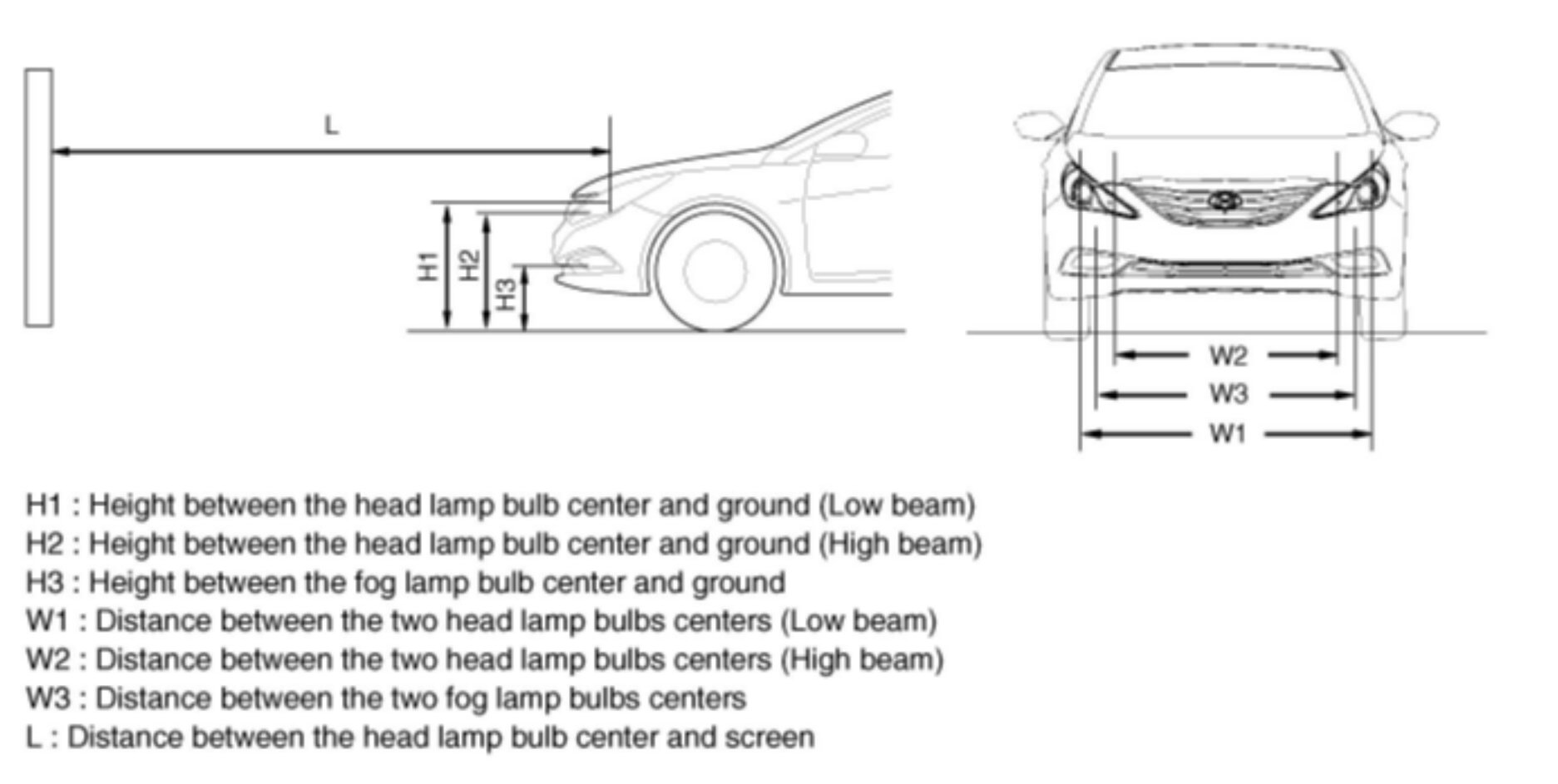

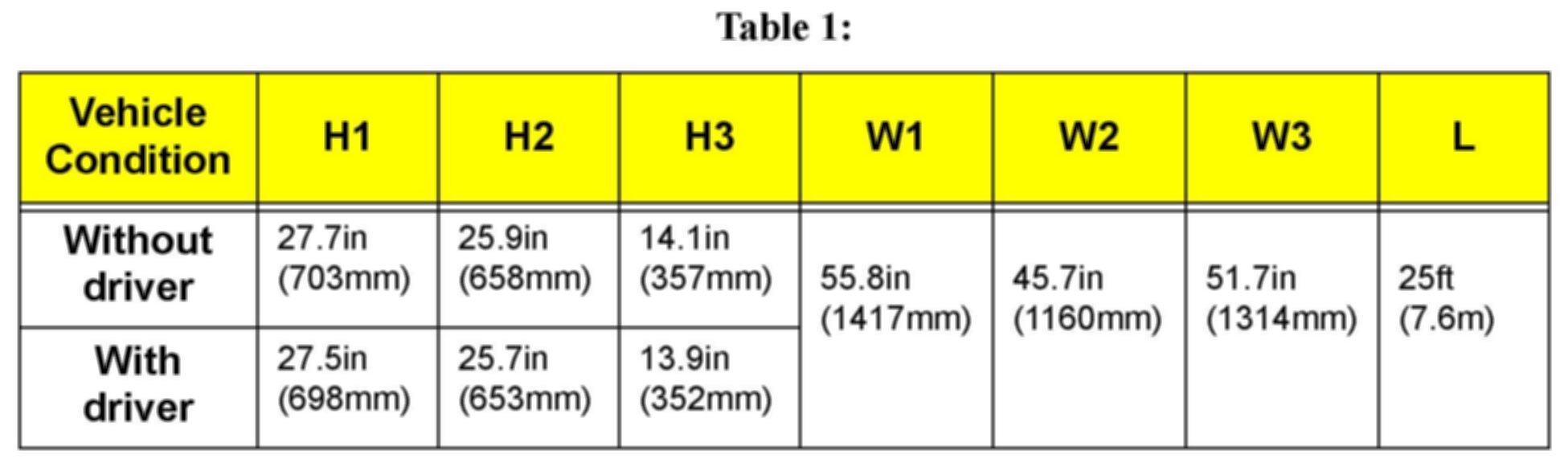

b. Transfer vertical measurements H1, H2, and H3 in Table 1 above to the vertical surface along a horizontal line using tape or an other marking.
2. Check and verify all tires are inflated to the pressures specified on the tire pressure label on the driver's door opening area.
3. Position the vehicle 25 feet from the wall/vertical surface as illustrated.

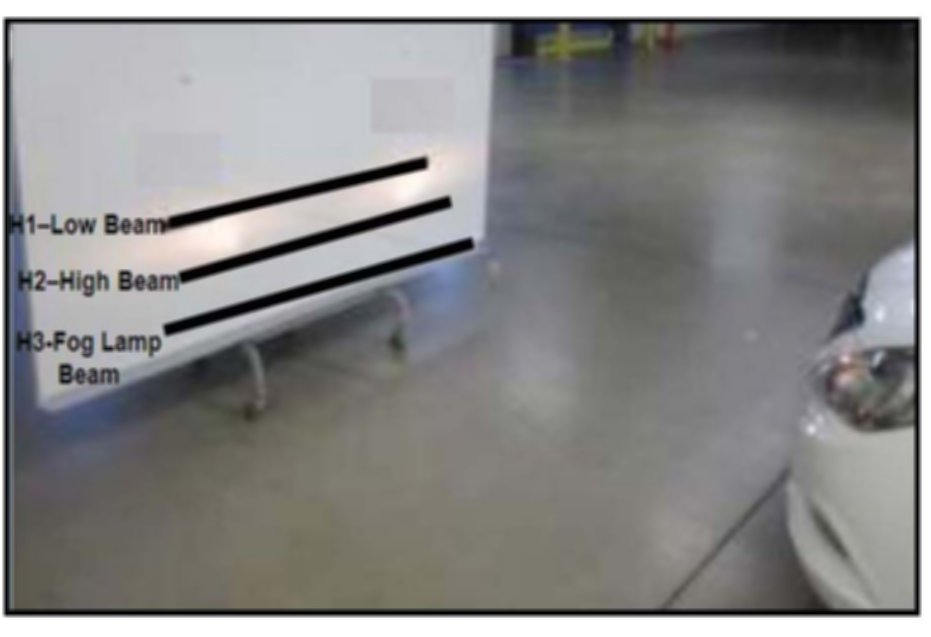

4. If the top horizontal edge (cut-off) of the headlamp does not align with the horizontal marks on the vertical surface for each corresponding beam-low, high, and fog lamp, use a long philips screwdriver to adjust the headlamps up or down as needed.

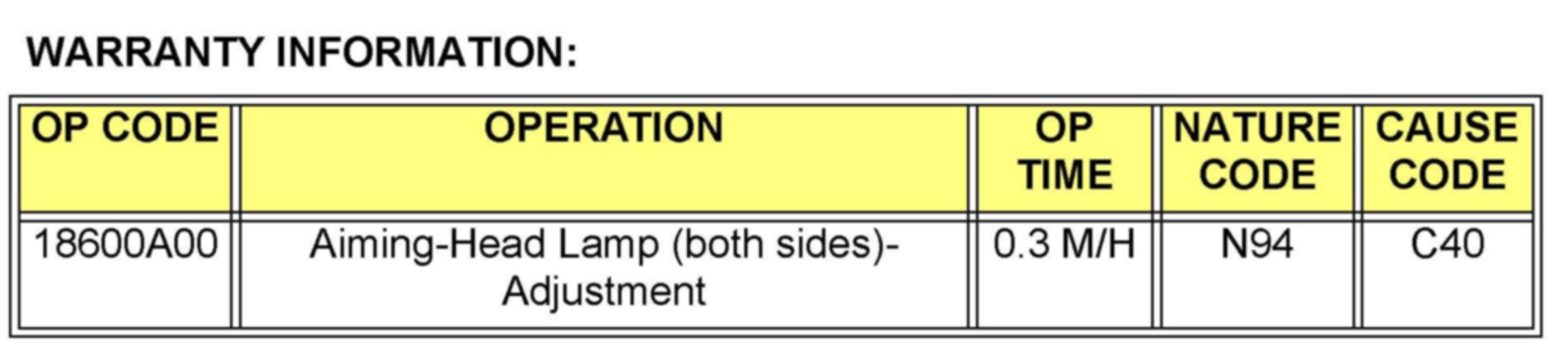

WARRANTY INFORMATION
