Campaign 927 - Vehicle Tracking Concerns

NUMBER
11-01-027

GROUP
CAMPAIGN

MODEL(S)
SONATA (YF)

DATE
AUGUST, 2011

SUBJECT
SONATA (YF) VEHICLE TRACKING DIAGNOSIS AND REPAIR
18" WHEEL VEHICLES ONLY (SERVICE CAMPAIGN 927)





Important








Description:
The following procedure describes how to diagnose and repair certain Sonata (YF) vehicles that may not track as desired.





Applicable Vehicles:





Warranty Information:








Service Procedure:





YF Sonata 2.4 and 2.0T Alignment Specifications

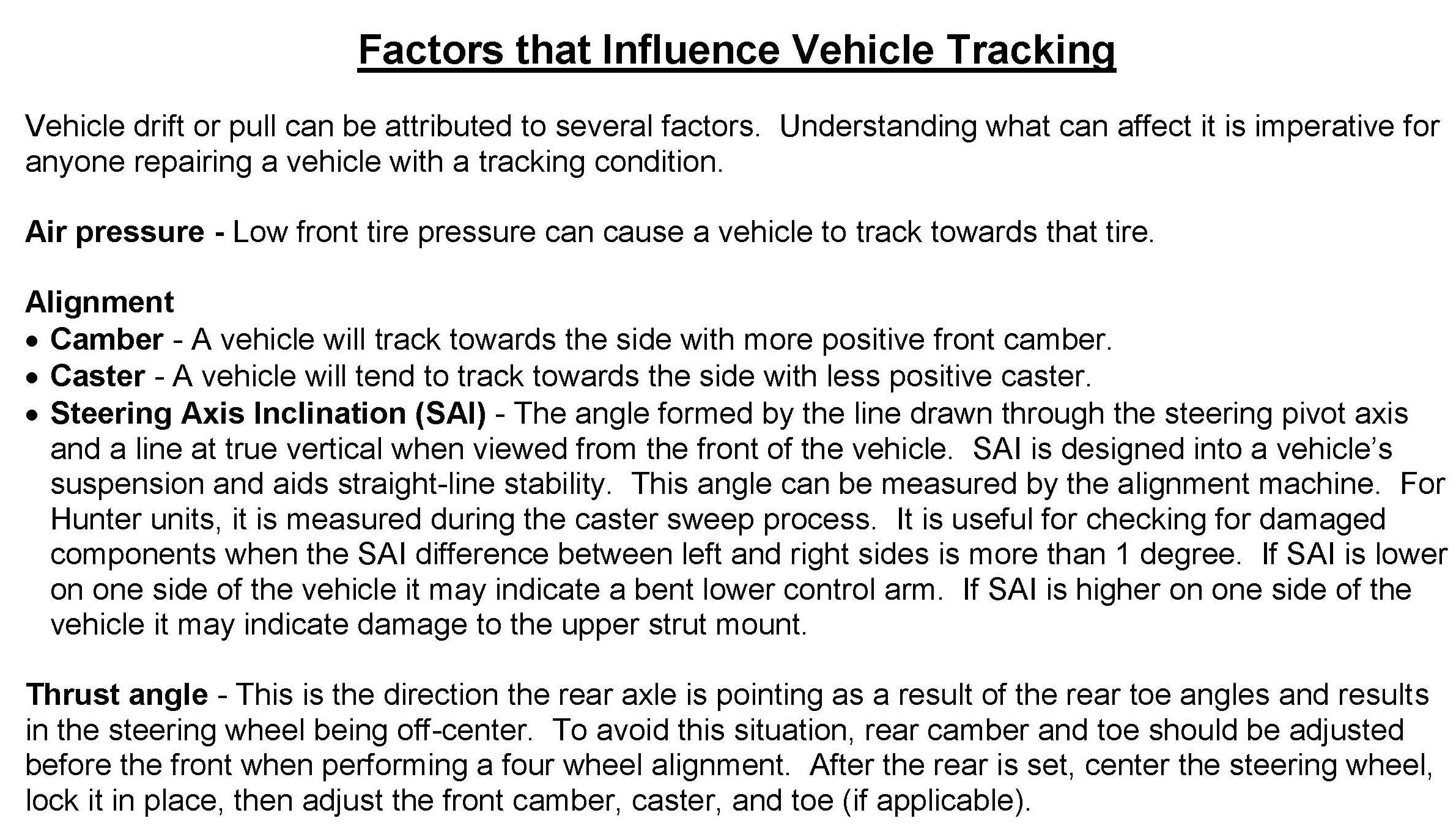

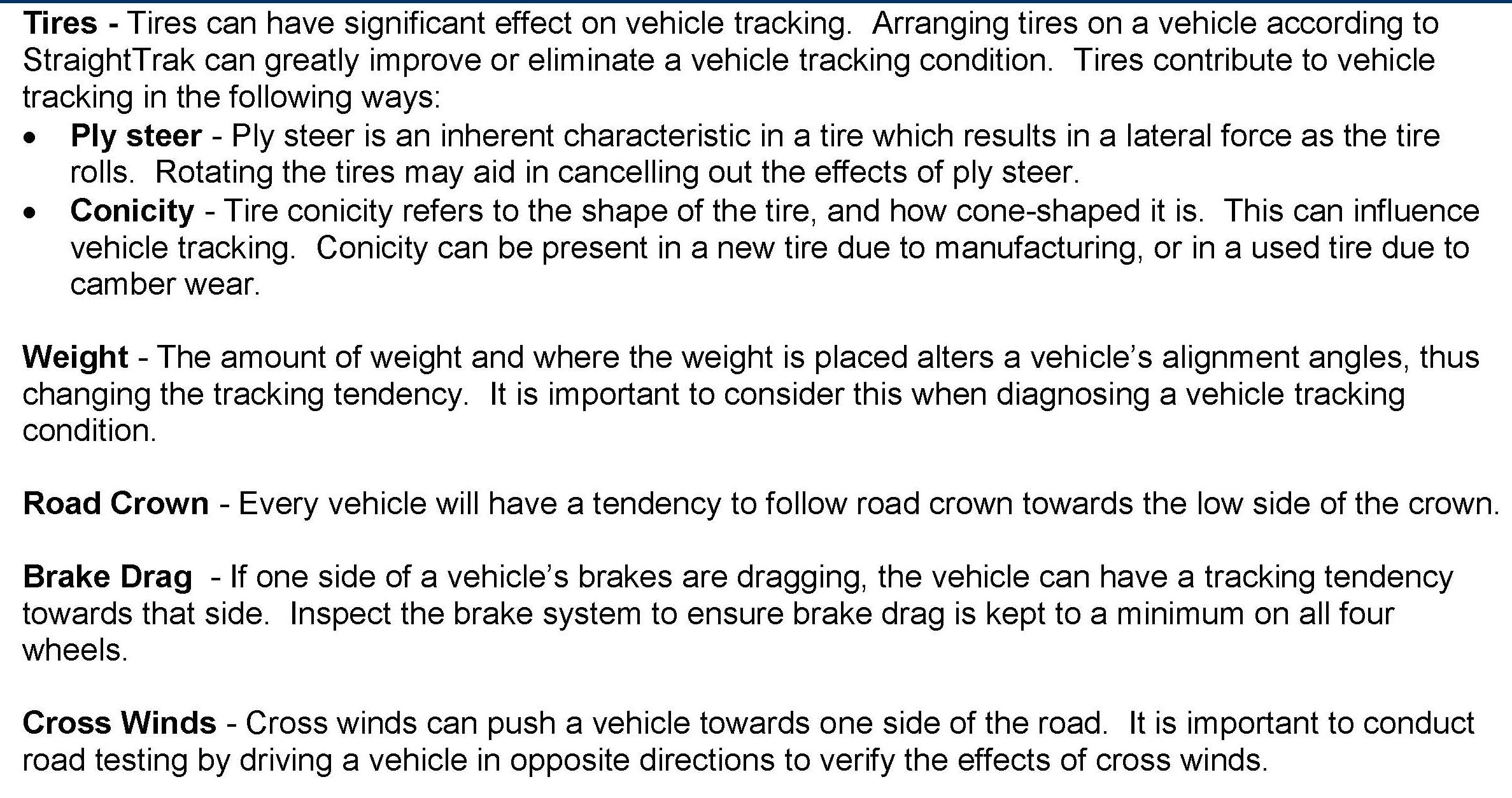

Factors That Influence Vehicle Tracking

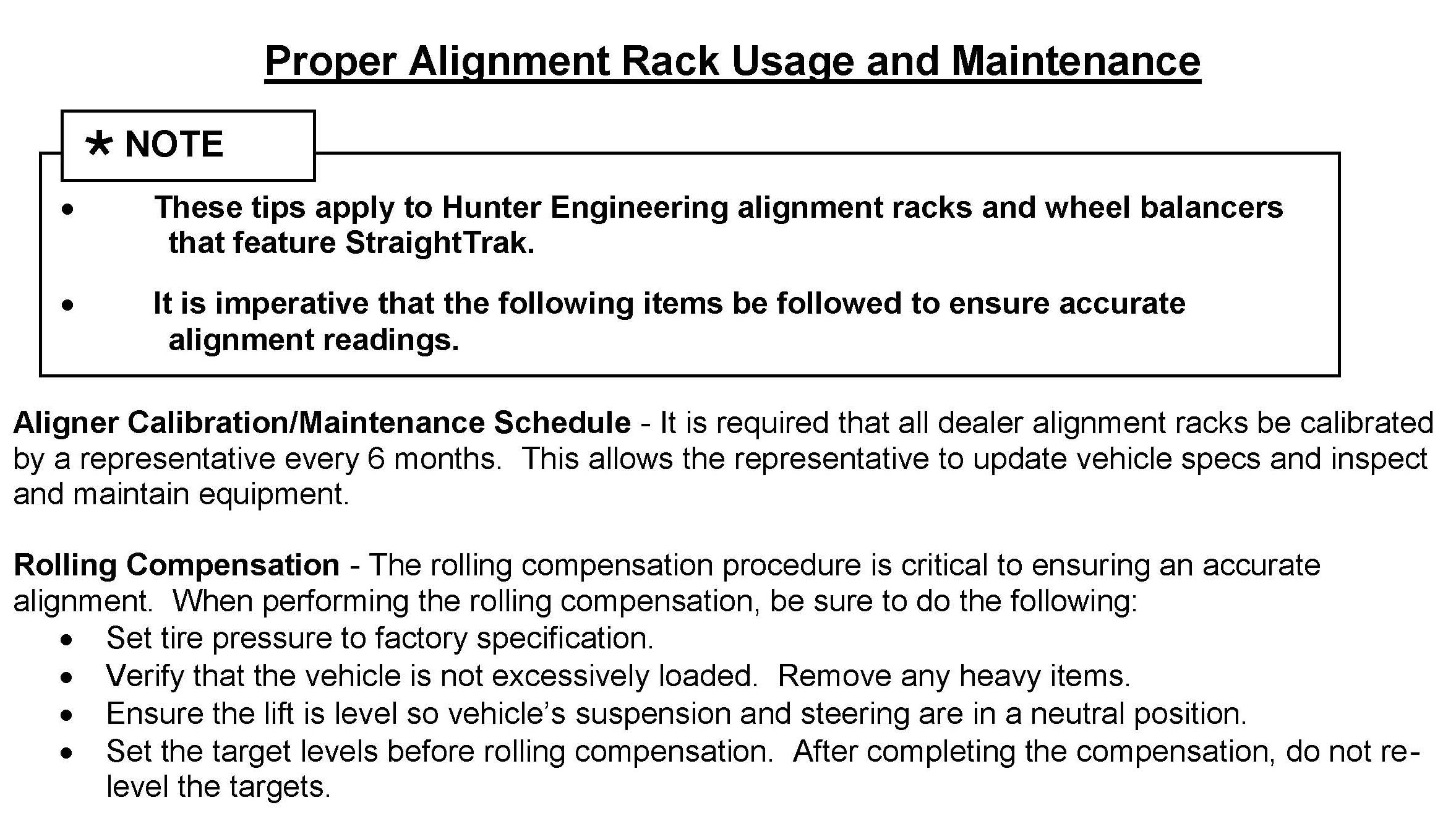

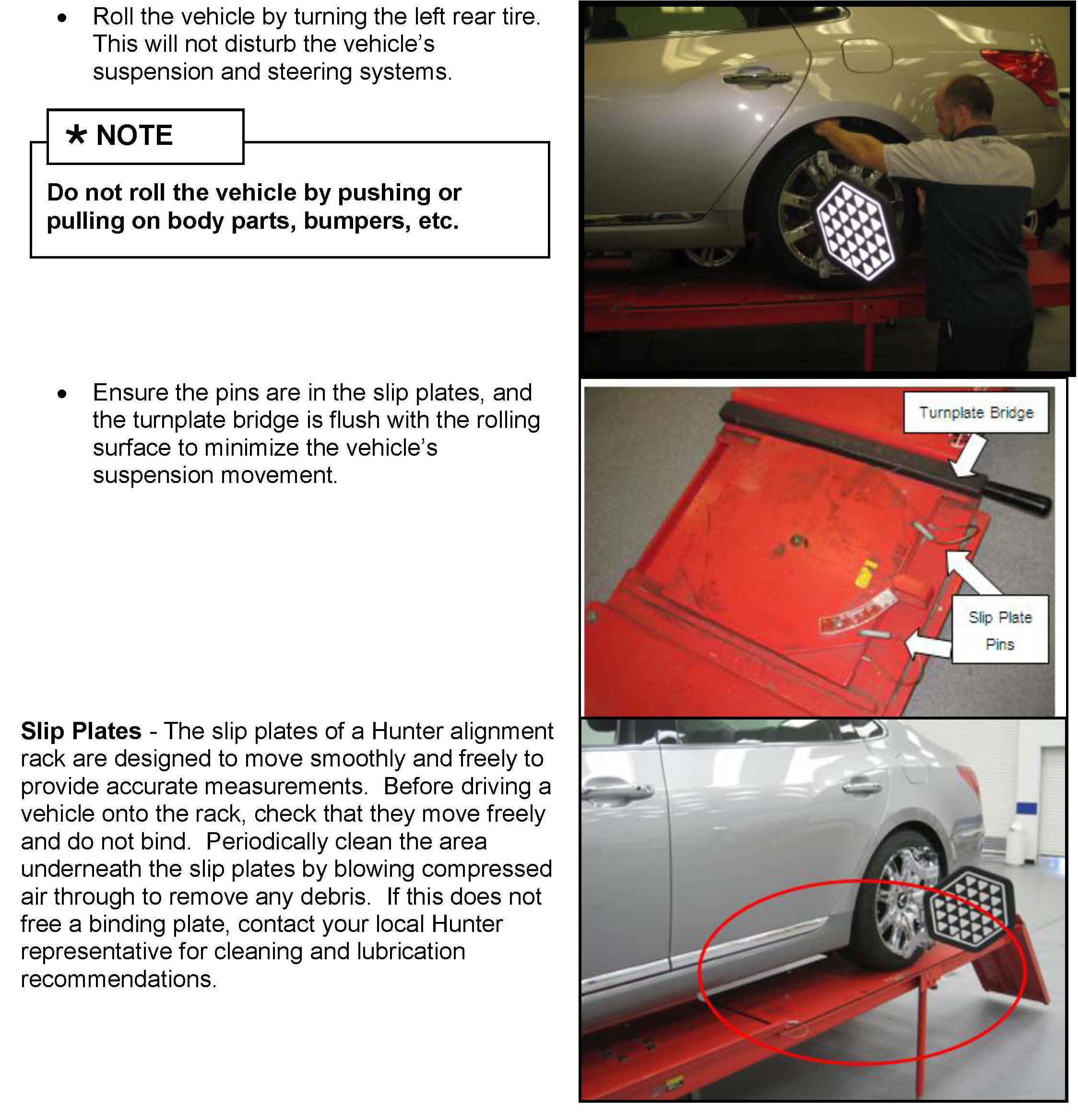

Proper Alignment Rack Usage and Maintenance

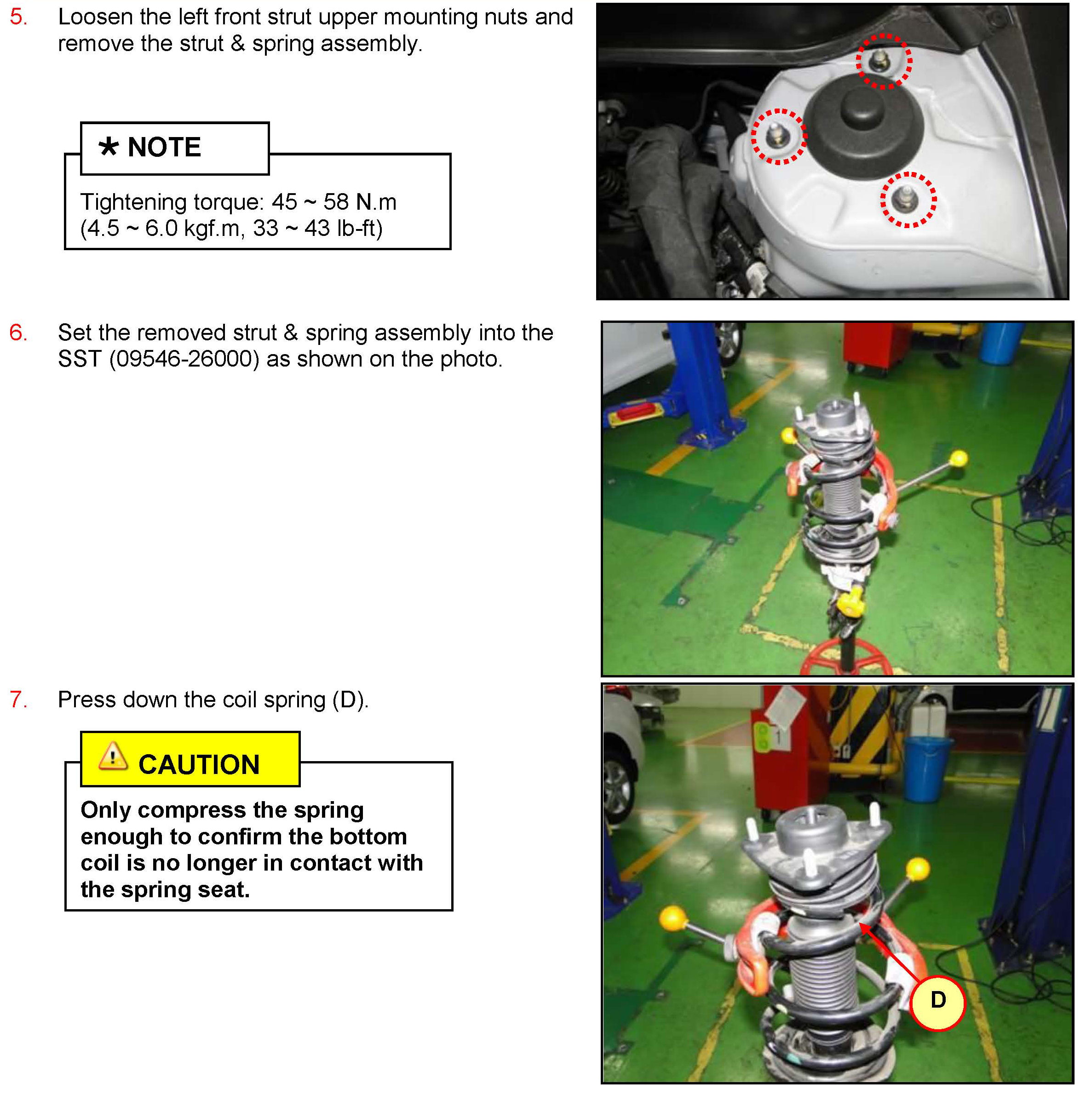

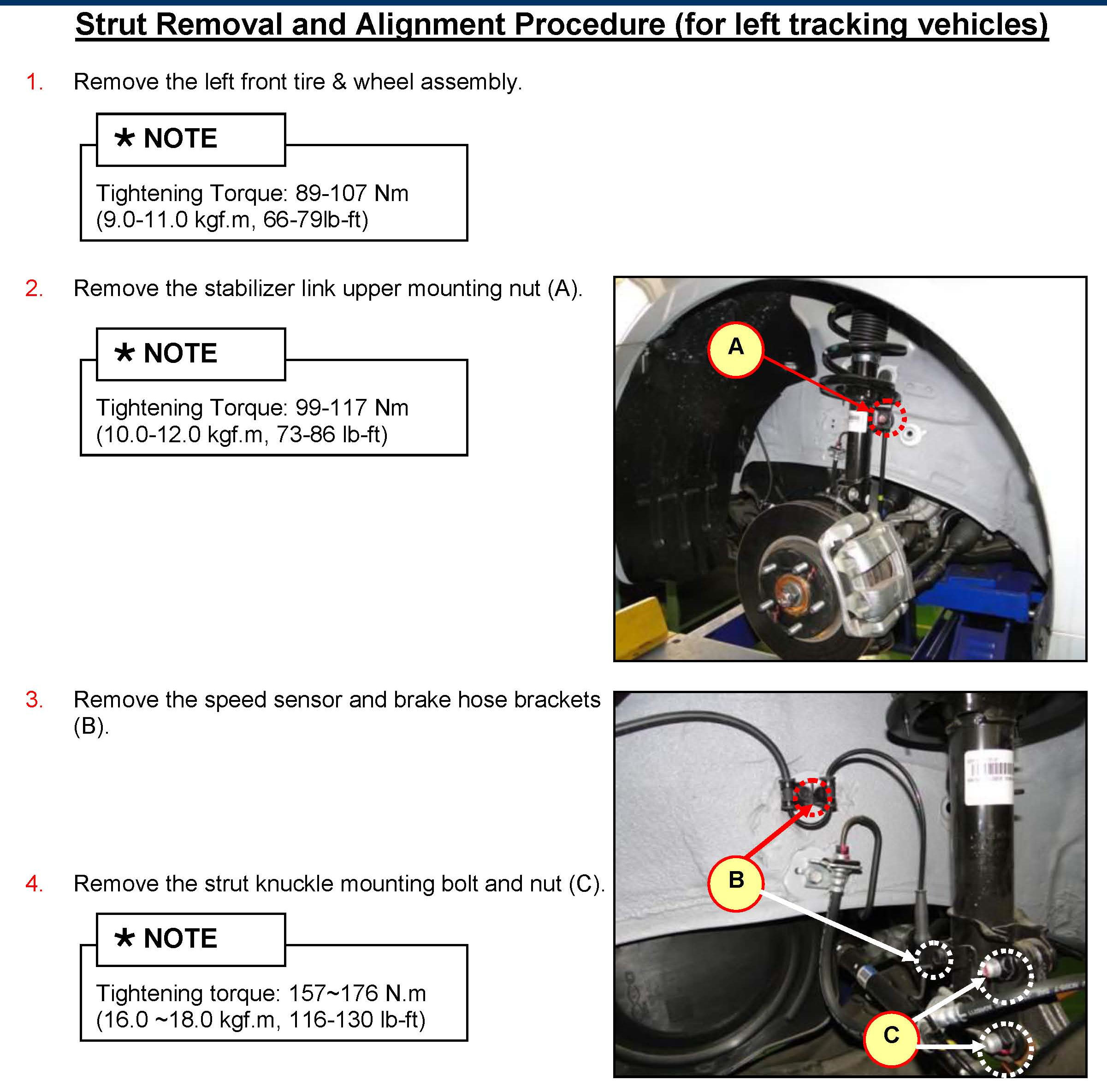

Strut Removal and Alignment Procedure (for left tracking vehicles)

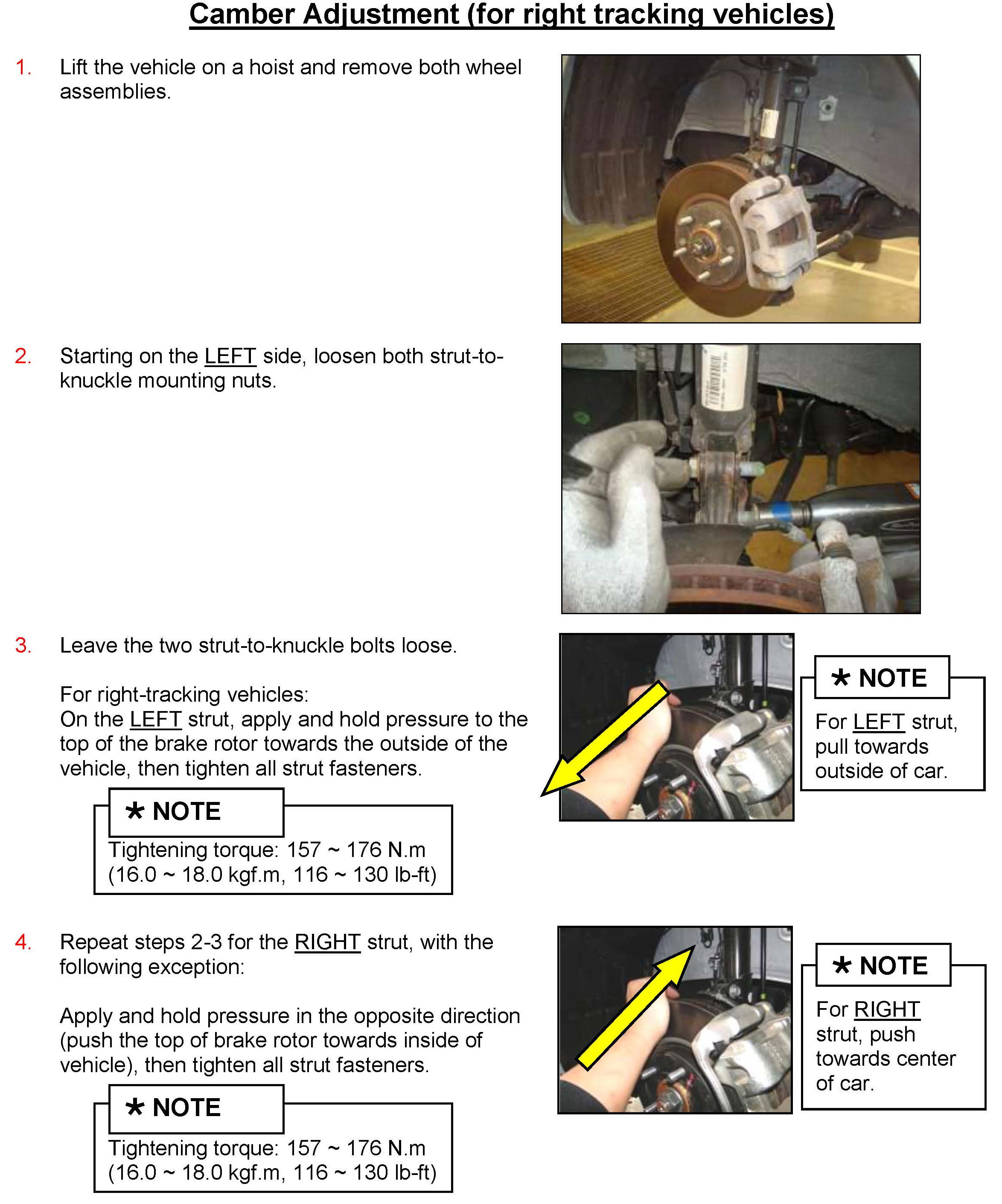

Camber Adjustment (for right tracking vehicles)

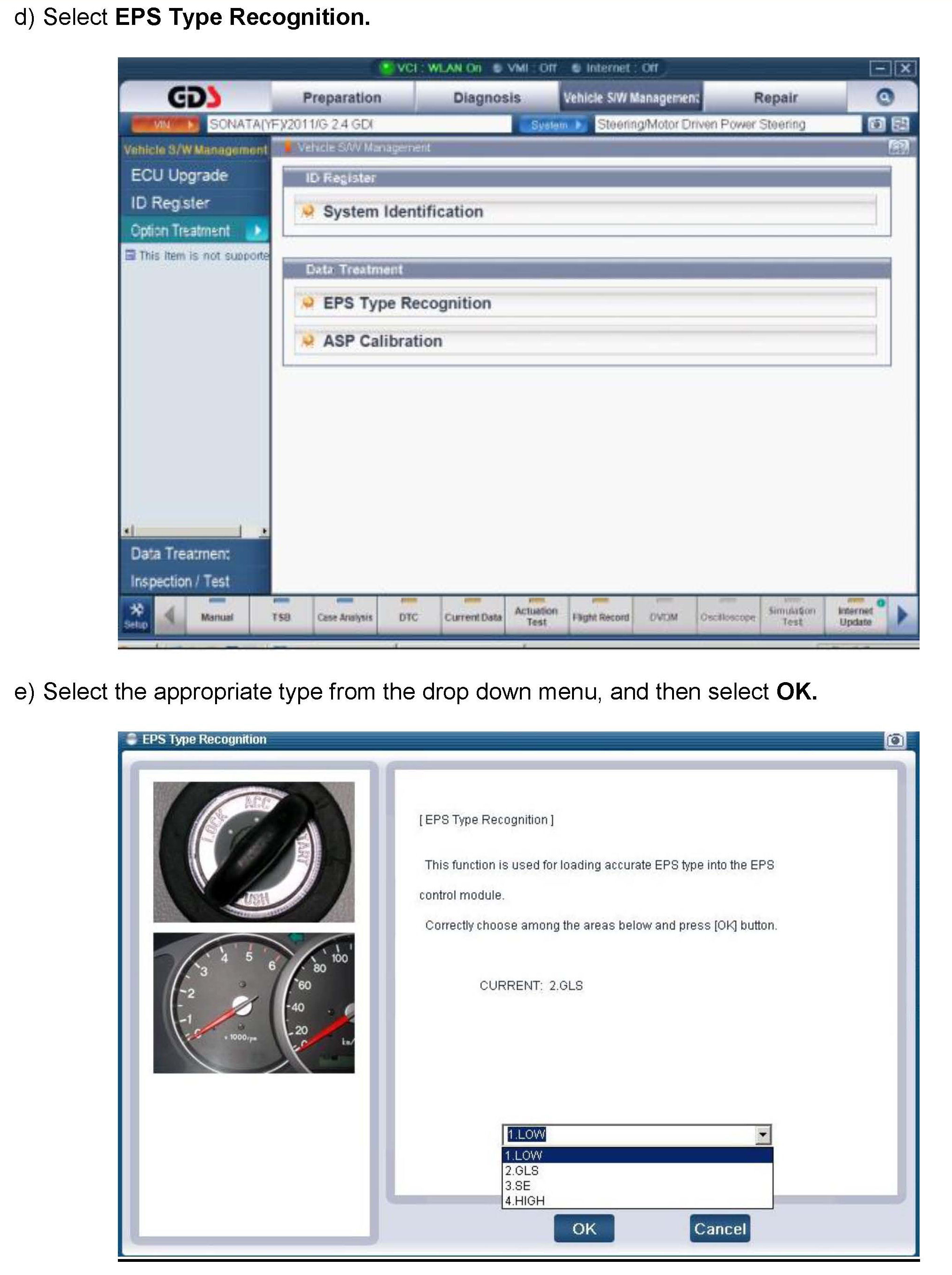

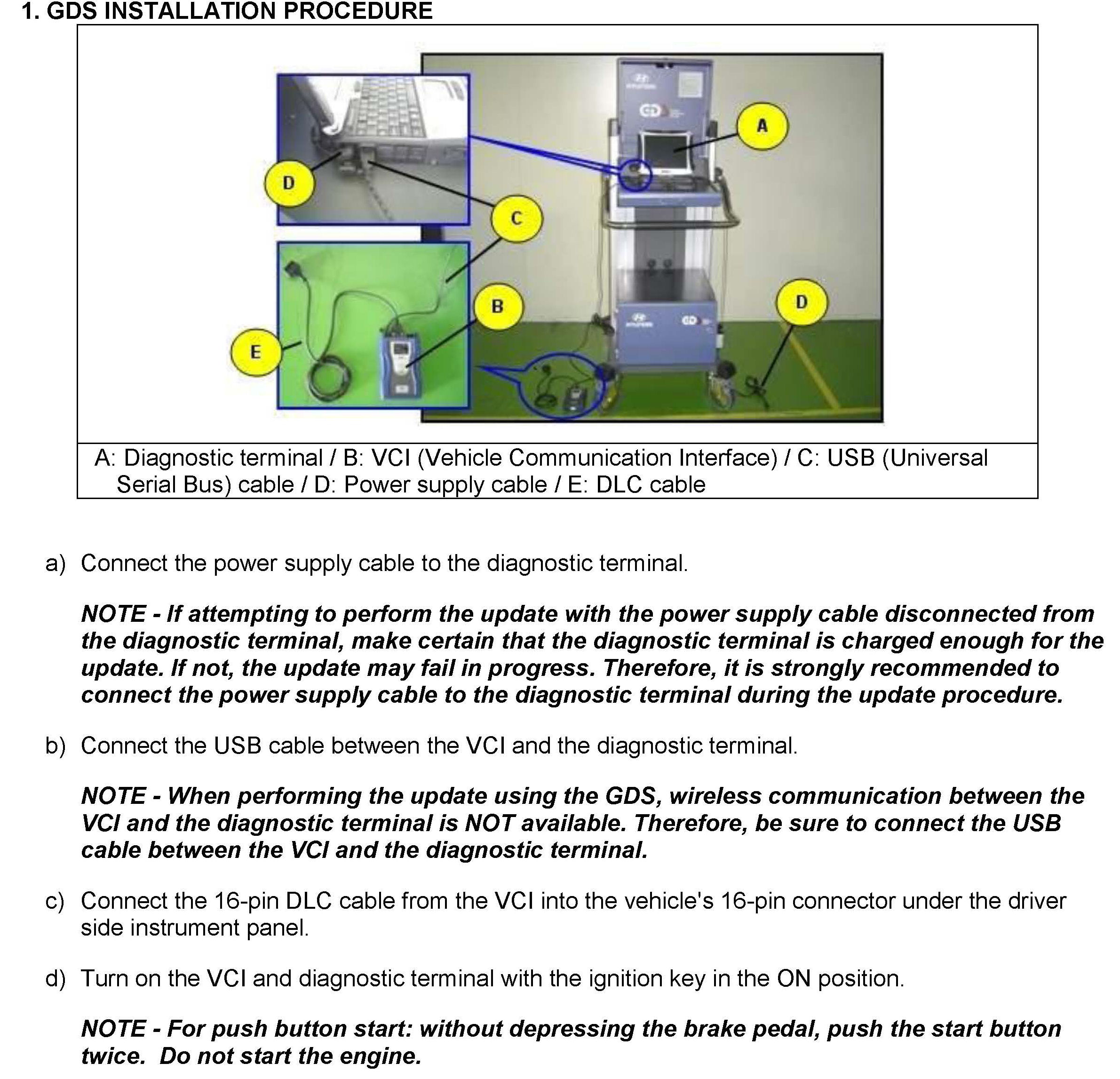

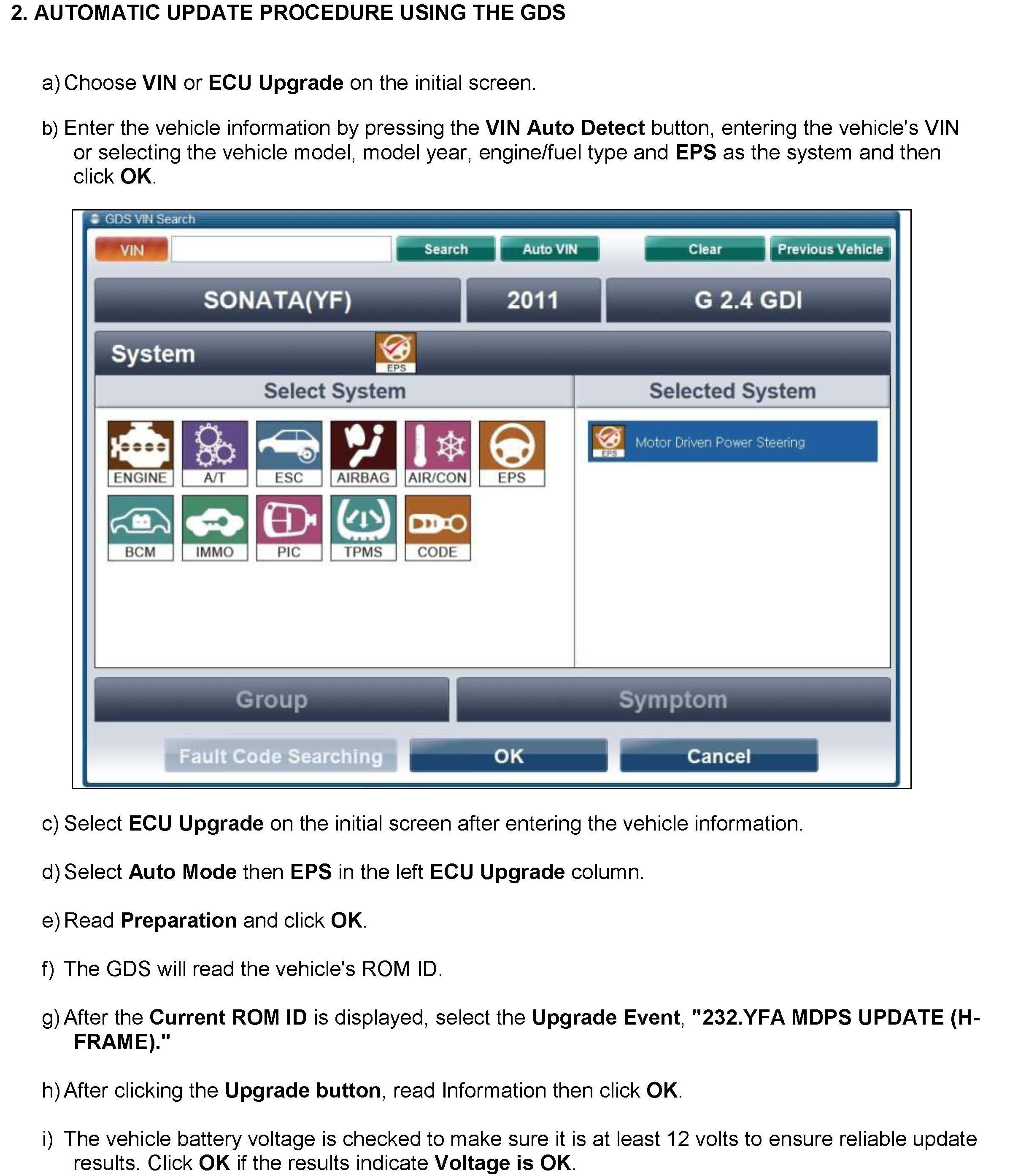

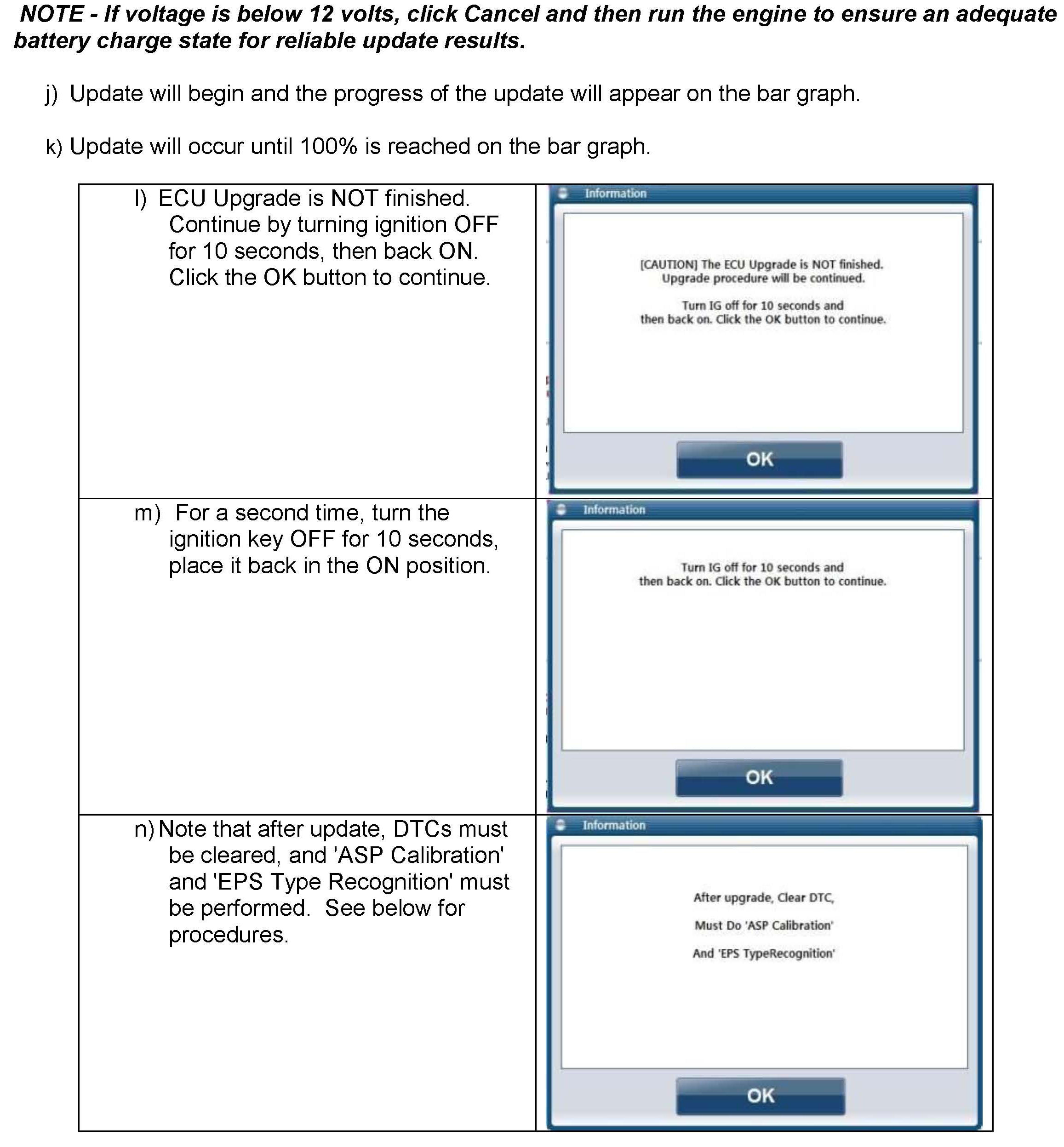

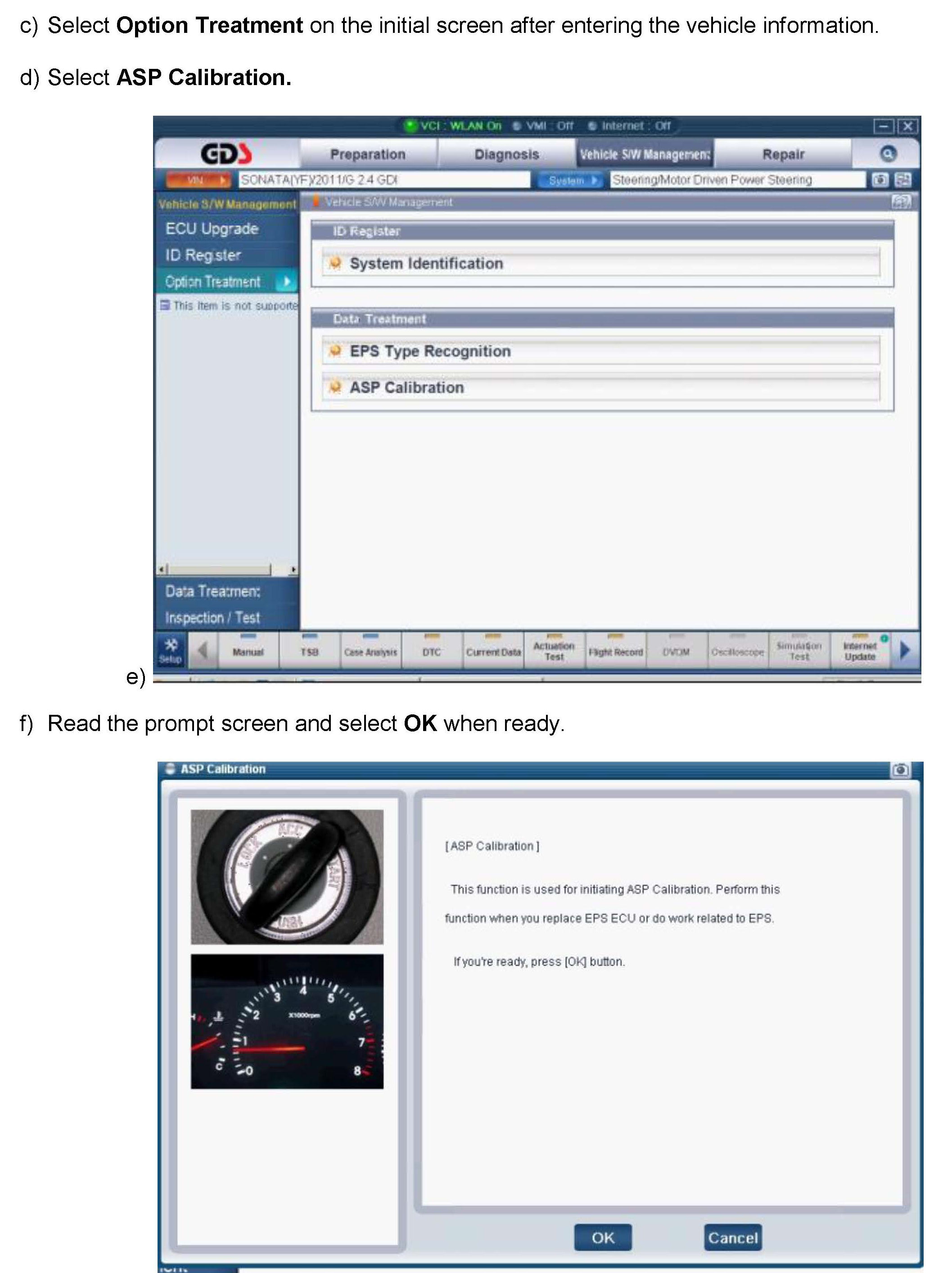

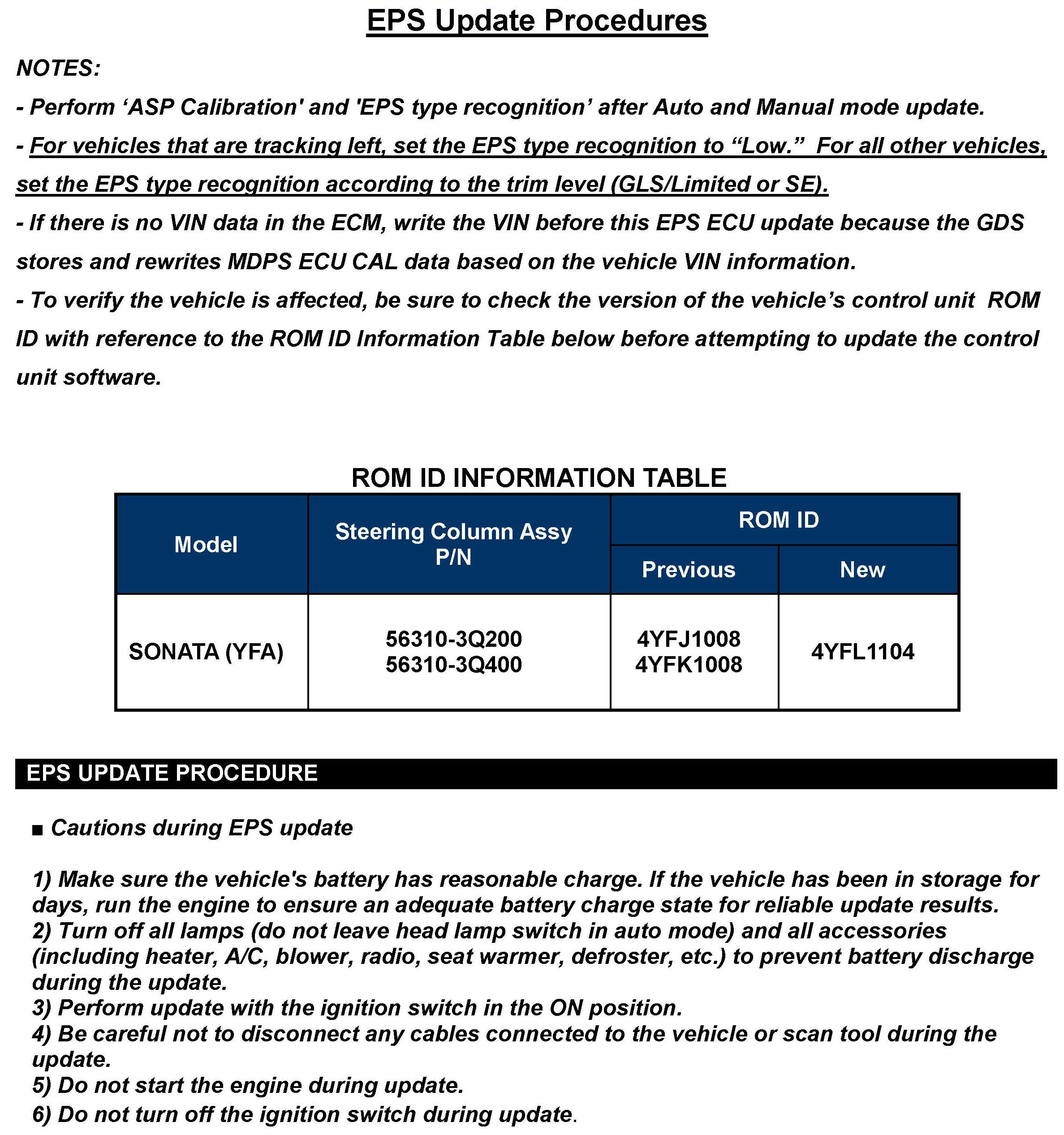

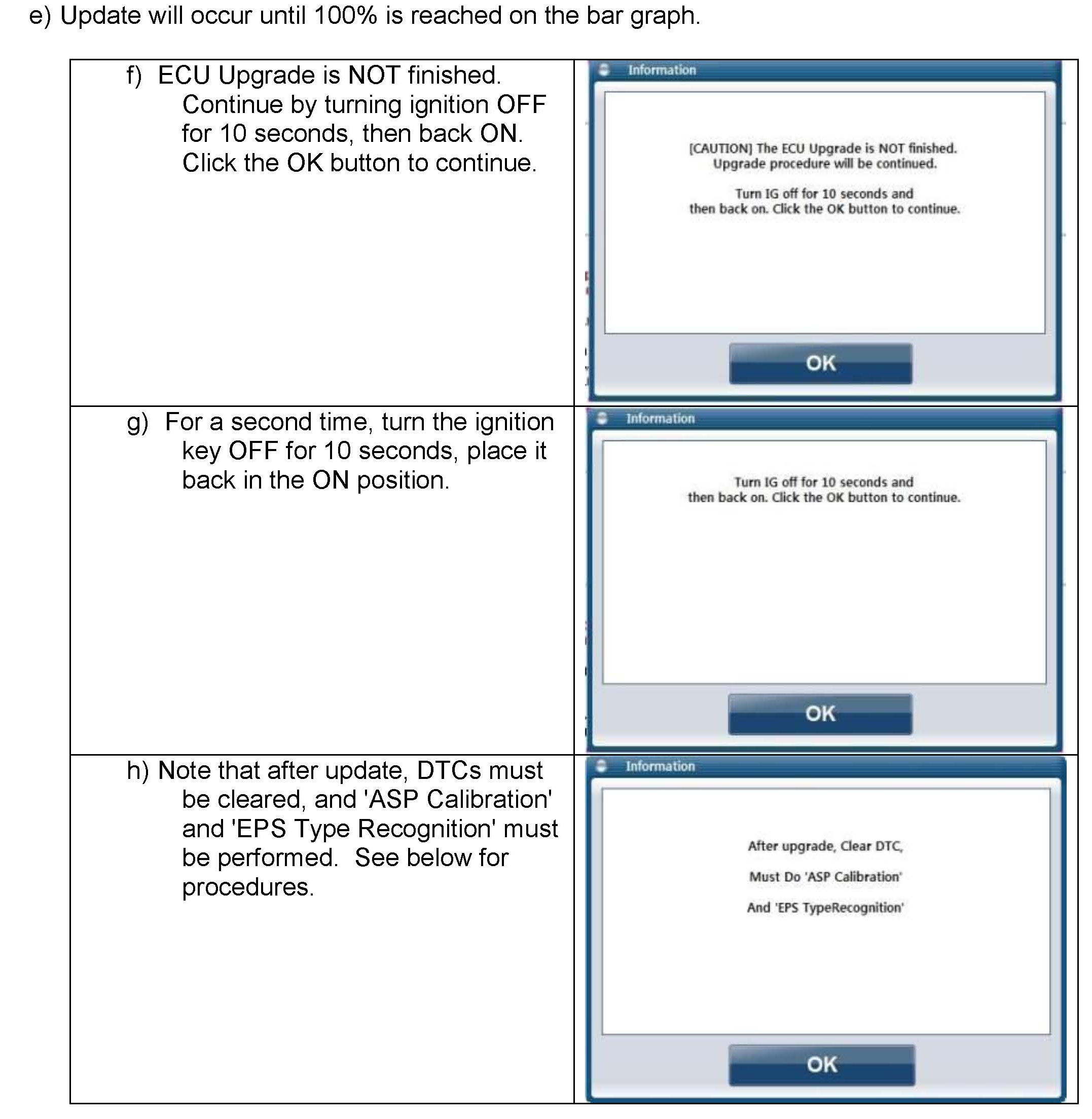

EPS Update Procedures
