Campaign TD8 - Overhead Console Replacement
Group: CAMPAIGNNumber: 10-01-046
Date: NOVEMBER 2010
Model: 2011 SONATA
Subject
OVERHEAD CONSOLE REPLACEMENT -
SUNROOF SWITCH
(SERVICE CAMPAIGN TD8)
*****DEALER STOCK ONLY*****
IMPORTANT:
DEALERS MUST PERFORM THIS CAMPAIGN ON ALL AFFECTED VEHICLES PRIOR TO CUSTOMER RETAIL DELIVERY.
IMPORTANT:
WHEN A VEHICLE ARRIVES AT THE SERVICE DEPARTMENT, ACCESS HYUNDAI MOTOR AMERICA'S "WARRANTY VEHICLE INFORMATION" SCREEN VIA DCS ON-LINE TO IDENTIFY OPEN CAMPAIGNS.
DESCRIPTION:
Some sunroof switches may intermittently stick when closing the sunroof.
This bulletin provides the inspection and repair procedure to replace the overhead console lamp assembly, which contains the sunroof switch.
VEHICLES AFFECTED:
Model: 2011 MY Sonata (YF)
Affected Vehicles: Production date range:
^ Gray or black interior and sunroof equipped: September 22, 2010 through October 8, 2010

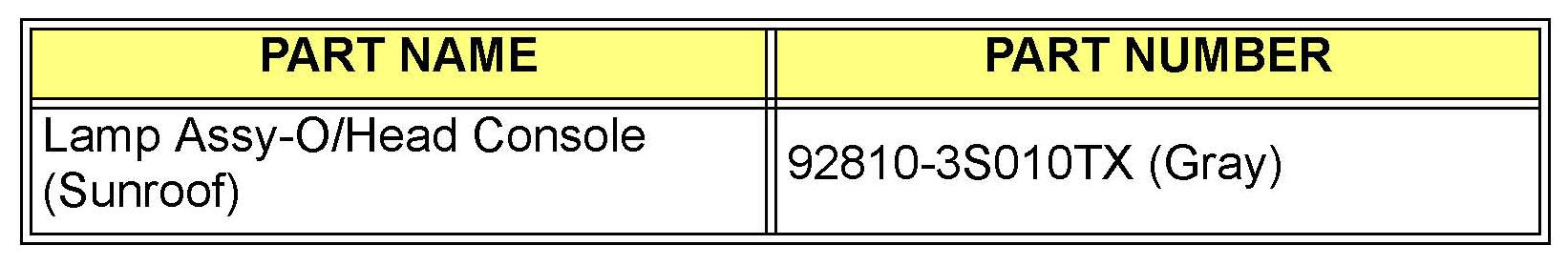

PARTS INFORMATION:
INSPECTION AND REPAIR PROCEDURE
1. After loosening the mounting screws, carefully remove the overhead console lamp assembly (A).

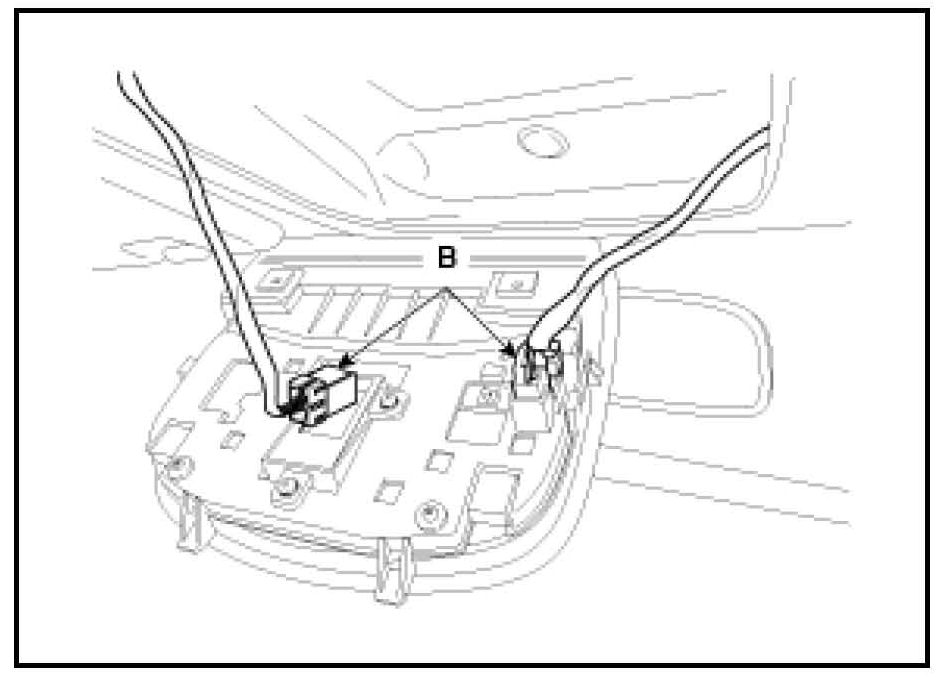

2. Disconnect the connectors (B).
a. Inspect the original overhead console lamp assembly and check the lot number (See photo).
^ If the LOT number is "100919", please place an order for the part, then call the parts call center to provide the VIN for parts release.
^ If the LOT number is NOT "100919", reinstall the original overhead console lamp assembly.
3. Check sunglass holder, map lamp and sunroof operation.

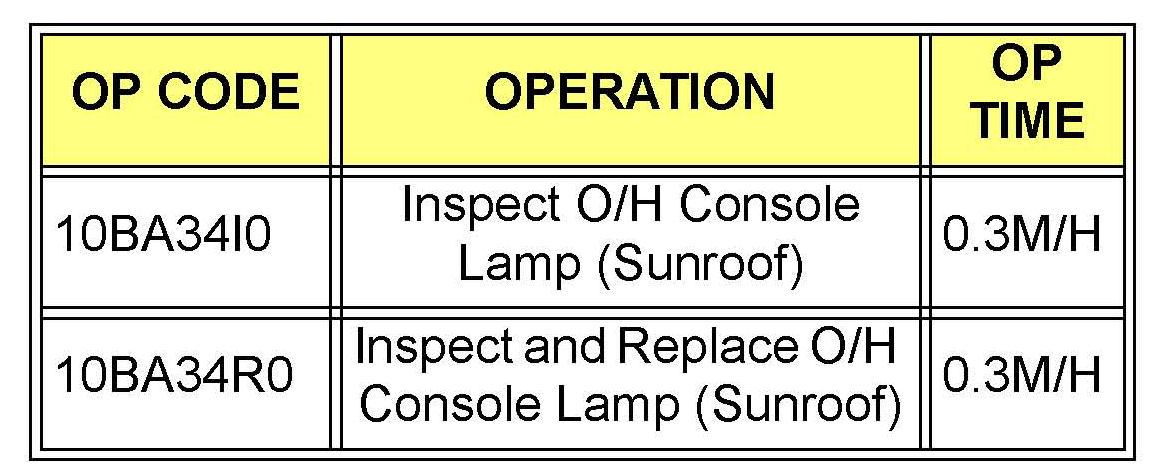

WARRANTY INFORMATION:
NOTE:
Submit claim on Campaign Claim Entry Screen.
