Campaign TD9 - Rattles From Glove Box Area
Group: CAMPAIGNNumber: 10-01-047
Date: NOVEMBER 2010
Subject
GLOVEBOX RATTLE
(SERVICE CAMPAIGN TD9)
*****DEALER STOCK ONLY*****
IMPORTANT:
DEALERS MUST PERFORM THIS CAMPAIGN ON ALL AFFECTED VEHICLES PRIOR TO CUSTOMER RETAIL DELIVERY.
IMPORTANT:
WHEN A VEHICLE ARRIVES AT THE SERVICE DEPARTMENT, ACCESS HYUNDAI MOTOR AMERICA'S "WARRANTY VEHICLE INFORMATION" SCREEN VIA DCS ON-LINE TO IDENTIFY OPEN CAMPAIGNS.
DESCRIPTION:
This bulletin provides the repair procedure for Sonata (YF) vehicles that exhibit a rattle / creak noise from the right front passenger area when the vehicle is driven on uneven or rough roads.
VEHICLES AFFECTED:
Model: Sonata (YF)
Applicable Vehicle Production Date Range: January 6, 2010 through August 30, 2010.

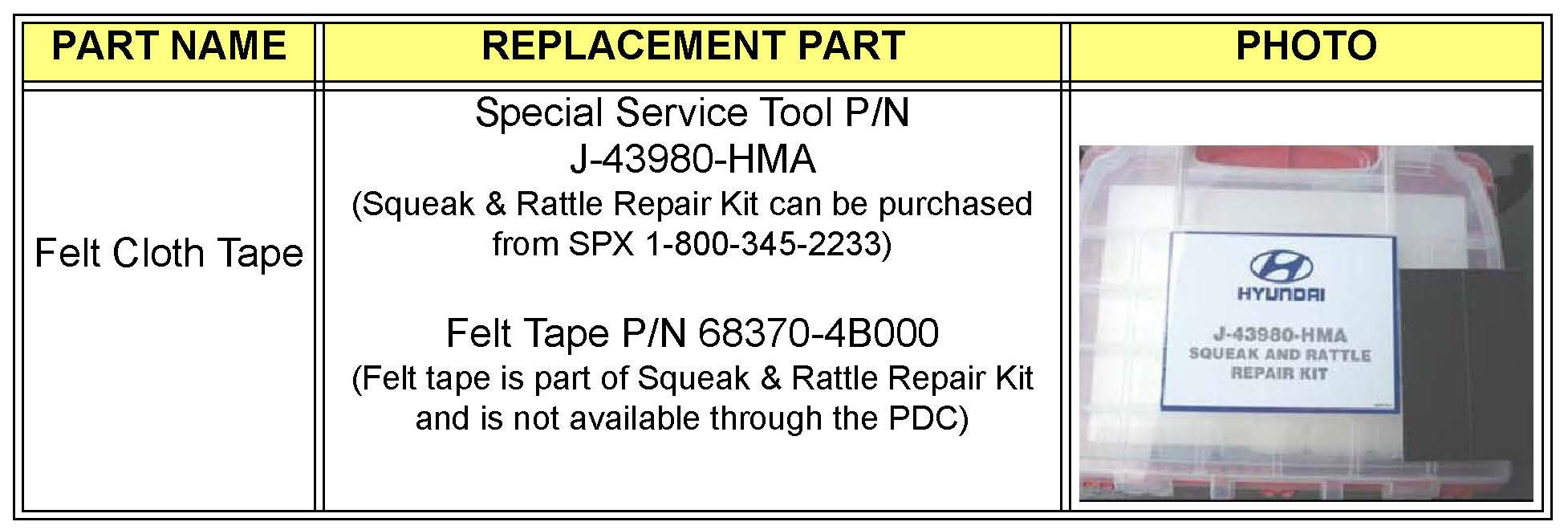

PARTS INFORMATION:
SERVICE PROCEDURE:
1. Apply felt tape to both the left and right post openings on the glove box housing as shown.
NOTE:
Felt tape size should be approximately 13.0 mm X 22.0 mm.
NOTE:
Preload glove box with glove box materials (i.e. Owner's Manual, etc.) before test driving vehicle after the repair.
2. Confirm the rattle/creak noise is eliminated after performing the repair.

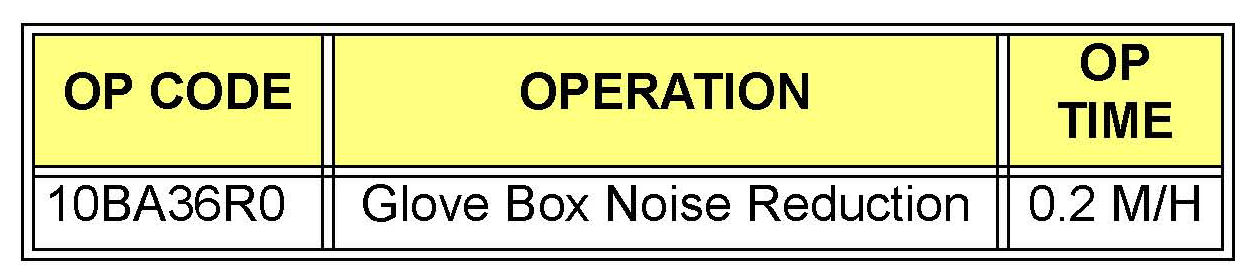

WARRANTY CLAIM INFORMATION:
NOTE:
Submit claim on Campaign Claim Entry Screen.
NOTE:
Sublet amount of $0.41 added to every claim for felt tape reimbursement.
