Campaign TE0 - Overhead Console Lamp Replacement

Group: CAMPAIGN

Number: 10-01-049

Date: DECEMBER 2010

Model: 2011 SONATA

Subject
OVERHEAD CONSOLE REPLACEMENT
- BEIGE INTERIOR WI SUNROOF (SERVICE CAMPAIGN TE0)

*****DEALER STOCK ONLY*****

IMPORTANT:
DEALERS MUST PERFORM THIS CAMPAIGN ON ALL AFFECTED VEHICLES PRIOR TO CUSTOMER RETAIL DELIVERY.

IMPORTANT:
ACCESS HYUNDAI MOTOR AMERICA'S "WARRANTY VEHICLE INFORMATION" SCREEN VIA DCS ON-LINE TO IDENTIFY OPEN CAMPAIGNS.

DESCRIPTION:

This bulletin provides the repair procedure to replace the overhead console lamp assembly on 2011 MY Sonatas identified below.

VEHICLES AFFECTED:

Model: 2011 MY Sonata (YF)

Affected Vehicles: Production date range:

^ Beige interior and sunroof equipped: January 15, 2010 through August 3, 2010.





PARTS INFORMATION:

REPAIR PROCEDURE





1. After loosening the mounting screws, carefully remove the overhead console lamp assembly (A).





2. Disconnect the connectors (B).

3. Install the new overhead console lamp assembly in reverse order of the removal process.

4. Check sunglass holder, map lamp and sunroof operation.

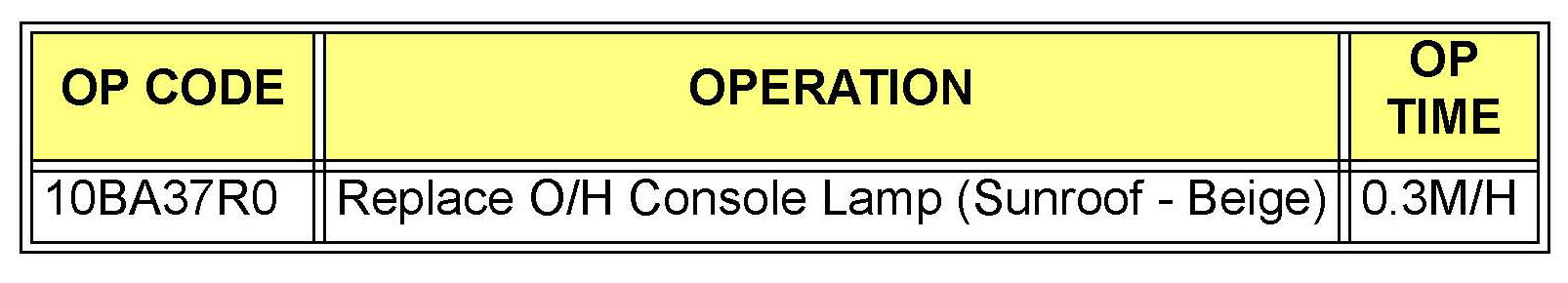

WARRANTY INFORMATION:

NOTE:
Submit claim using the Campaign Claim Entry Screen.
