Combination Switch

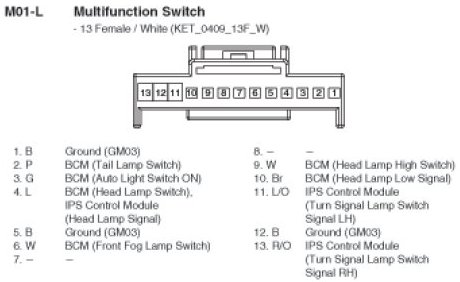

M01-L Multifunction Switch:




M01-R Multifunction Switch (Remote Control):

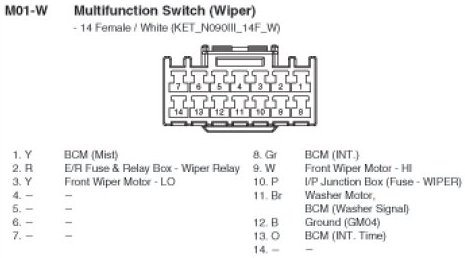

M01-W Multifunction Switch (Wiper):
