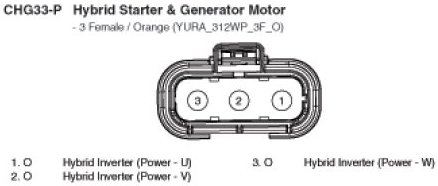

CHG33-P Hybrid Starter & Generator Motor
CHG33-P Hybrid Starter & Generator Motor
CHG33-P Hybrid Starter & Generator Motor:
