Home >> Hyundai >> 2011 >> Sonata L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> F20 Passenger Seat Belt Buckle Switch

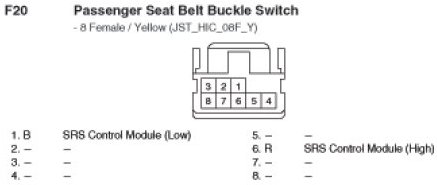

F20 Passenger Seat Belt Buckle Switch

F20 Passenger Seat Belt Buckle Switch:
