Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2011
>>
Sonata L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Component Connectors
>>

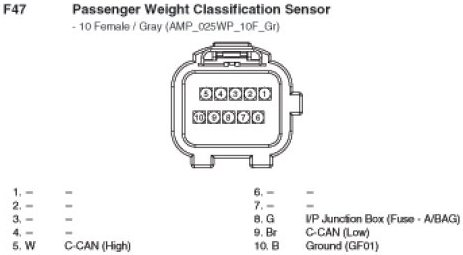

F47 Passenger Weight Classification Sensor
F47 Passenger Weight Classification Sensor
F47 Passenger Weight Classification Sensor:
