Diagram Set SD941 (Illumination)

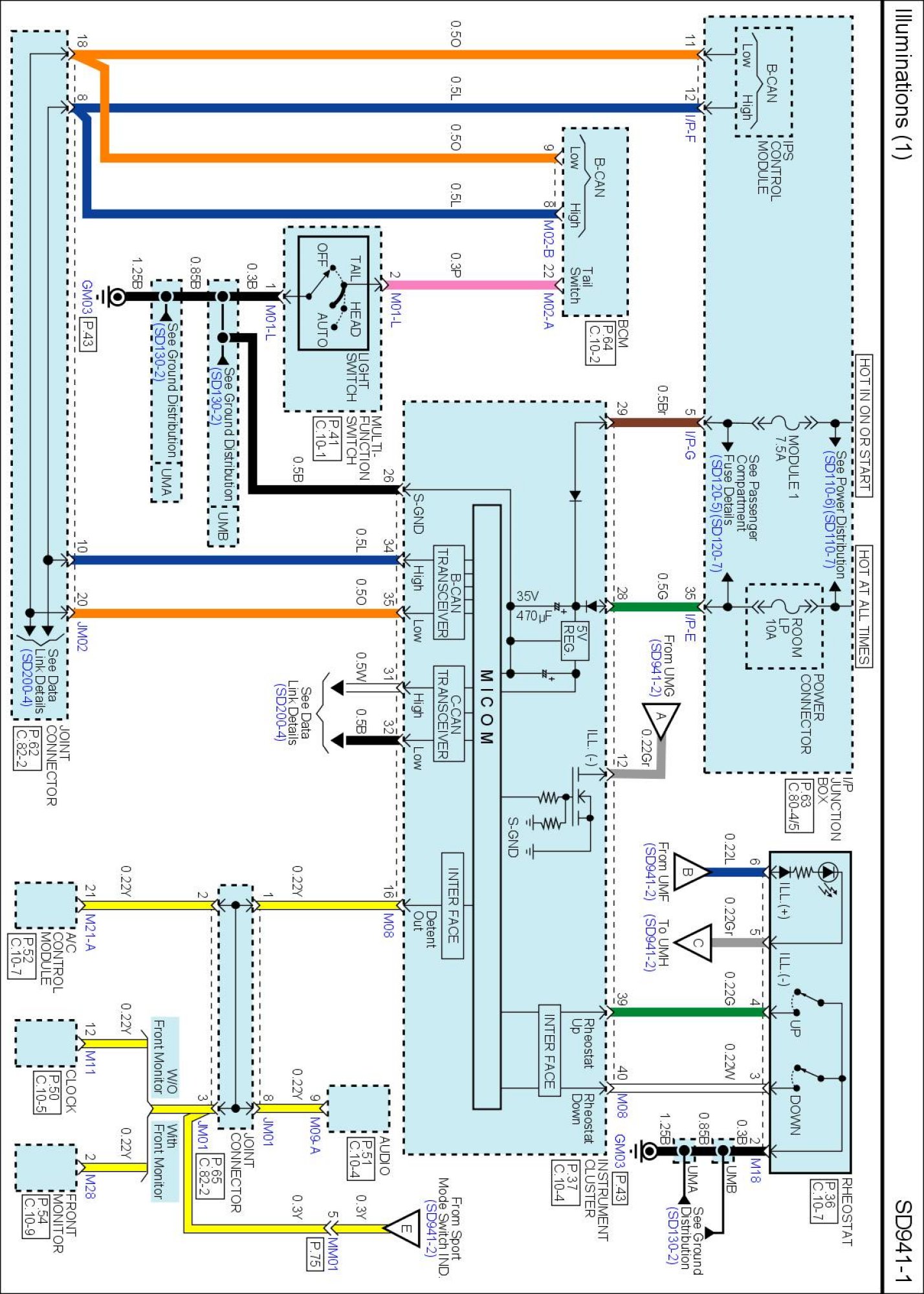

SD941-1 Illumination (1):

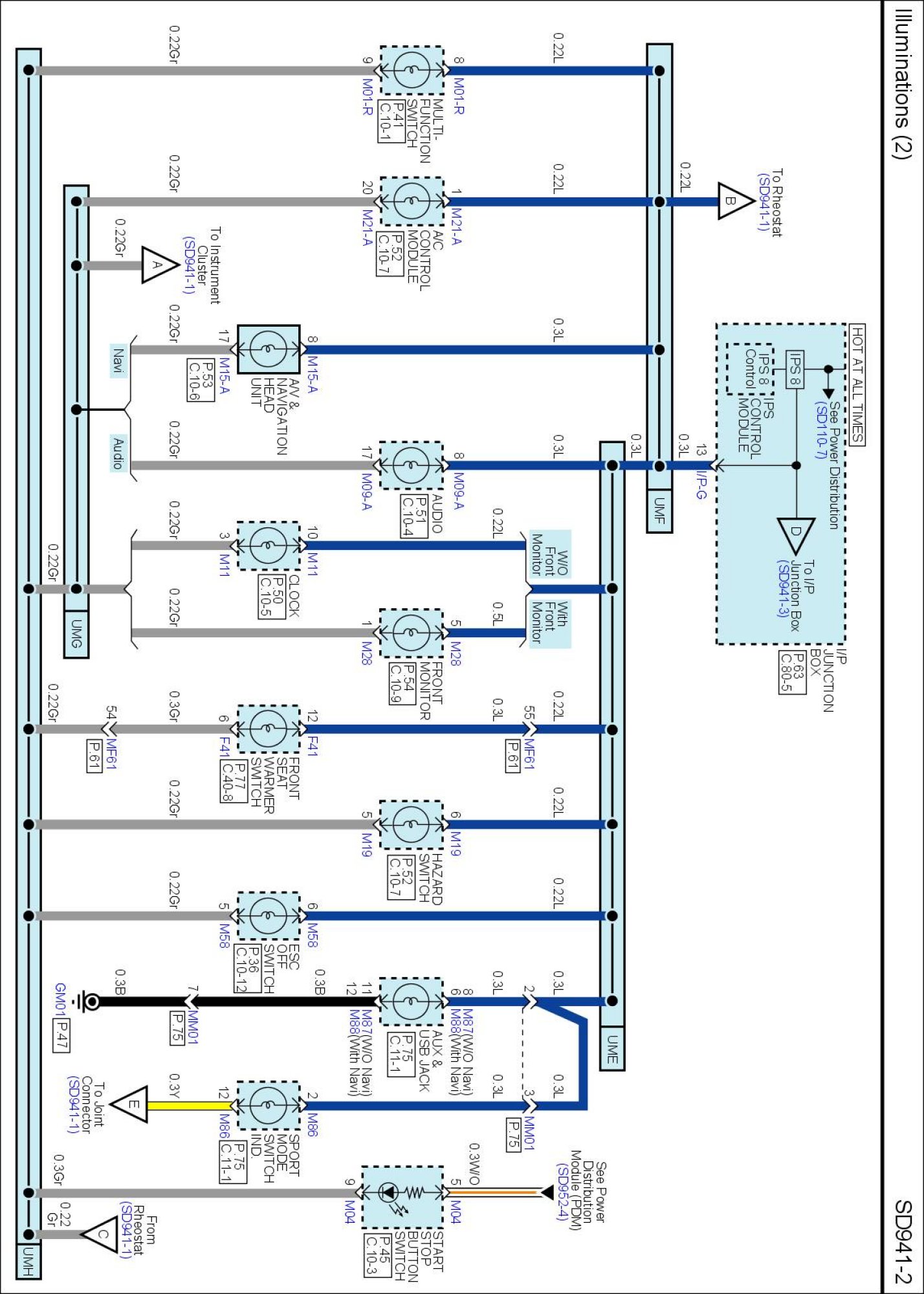

SD941-2 Illumination (2):

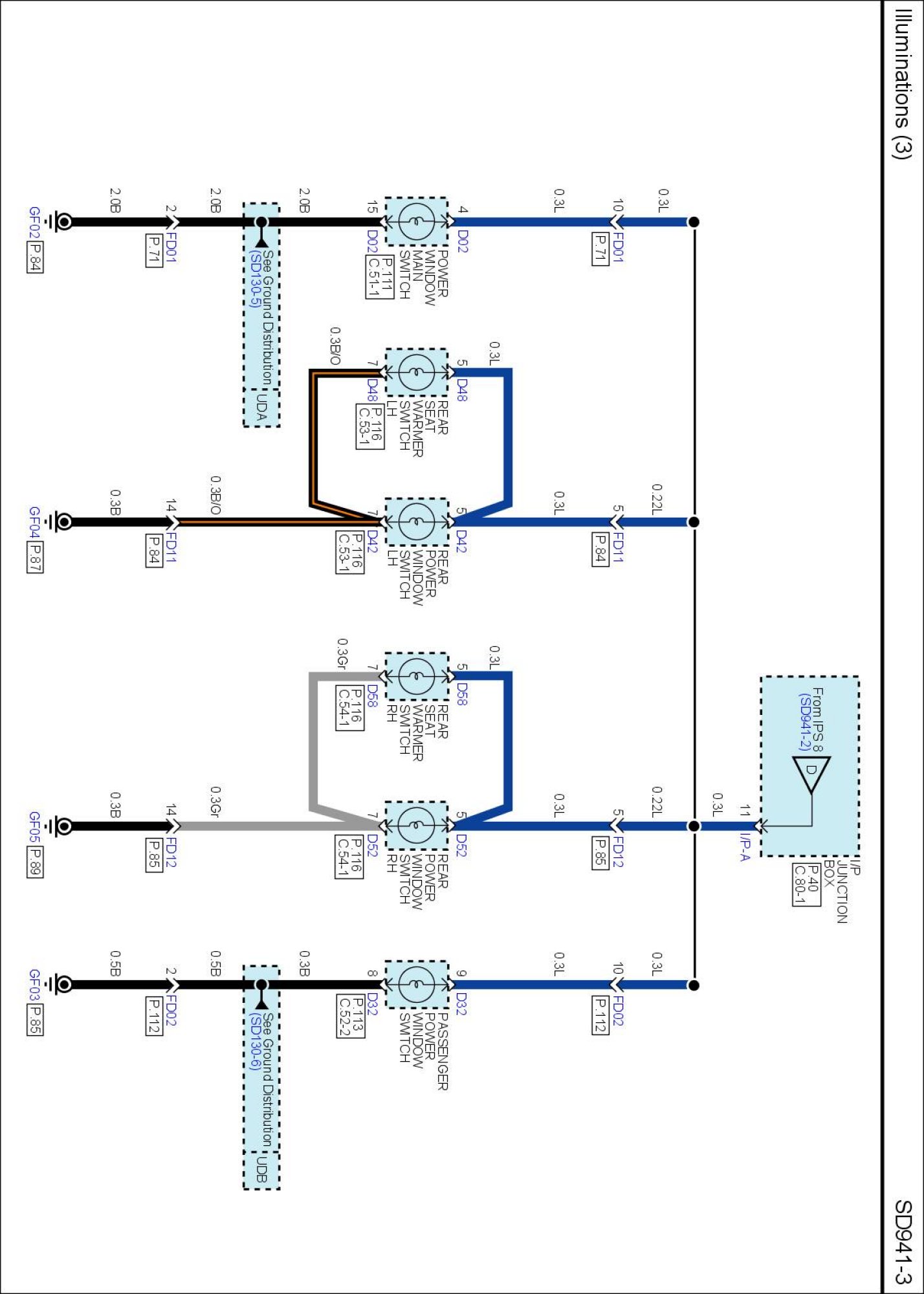

SD941-3 Illumination (3):
