Diagram Set SD969 (A/V and Navigation)

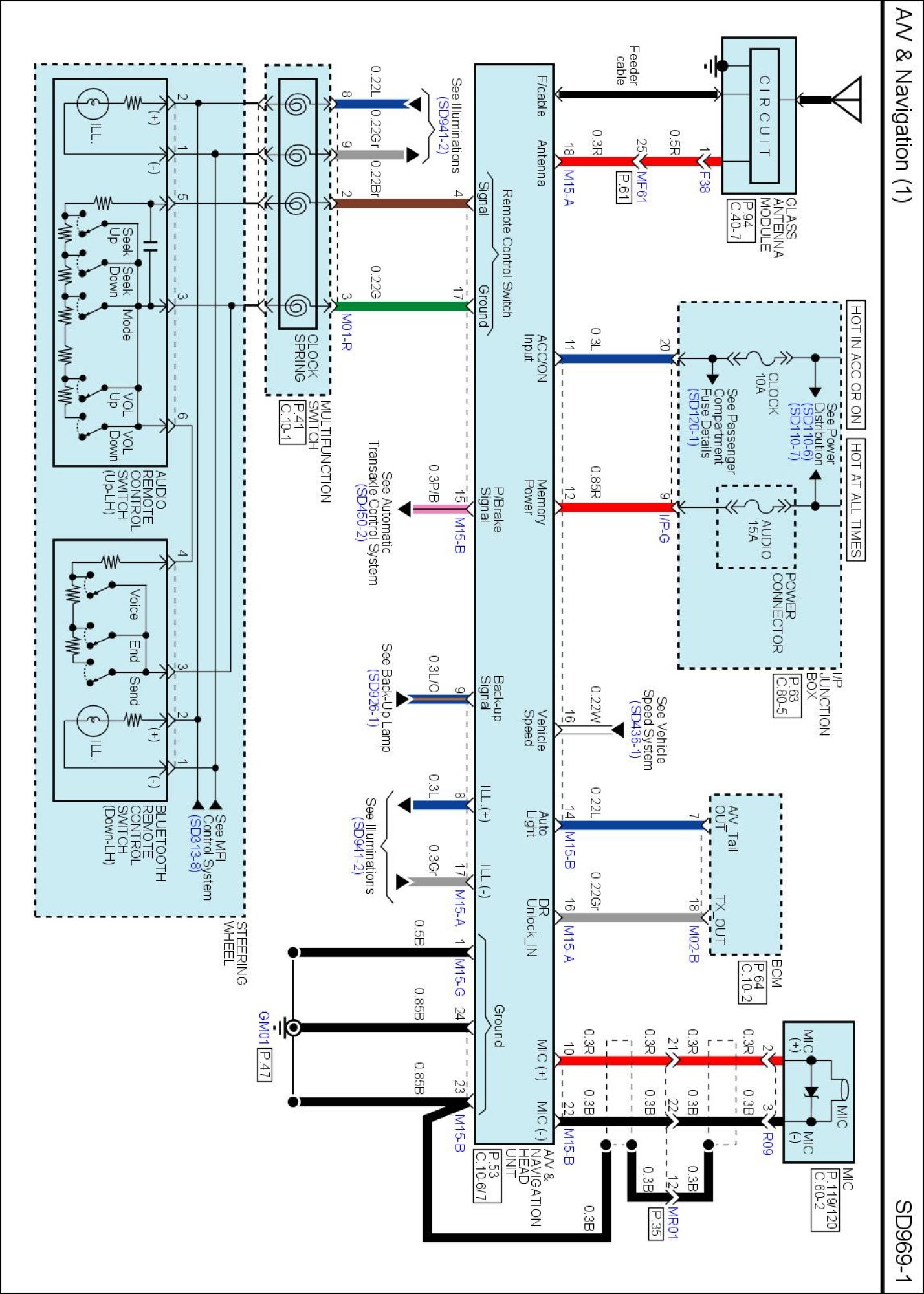

SD969-1 A/V & Navigation (1):

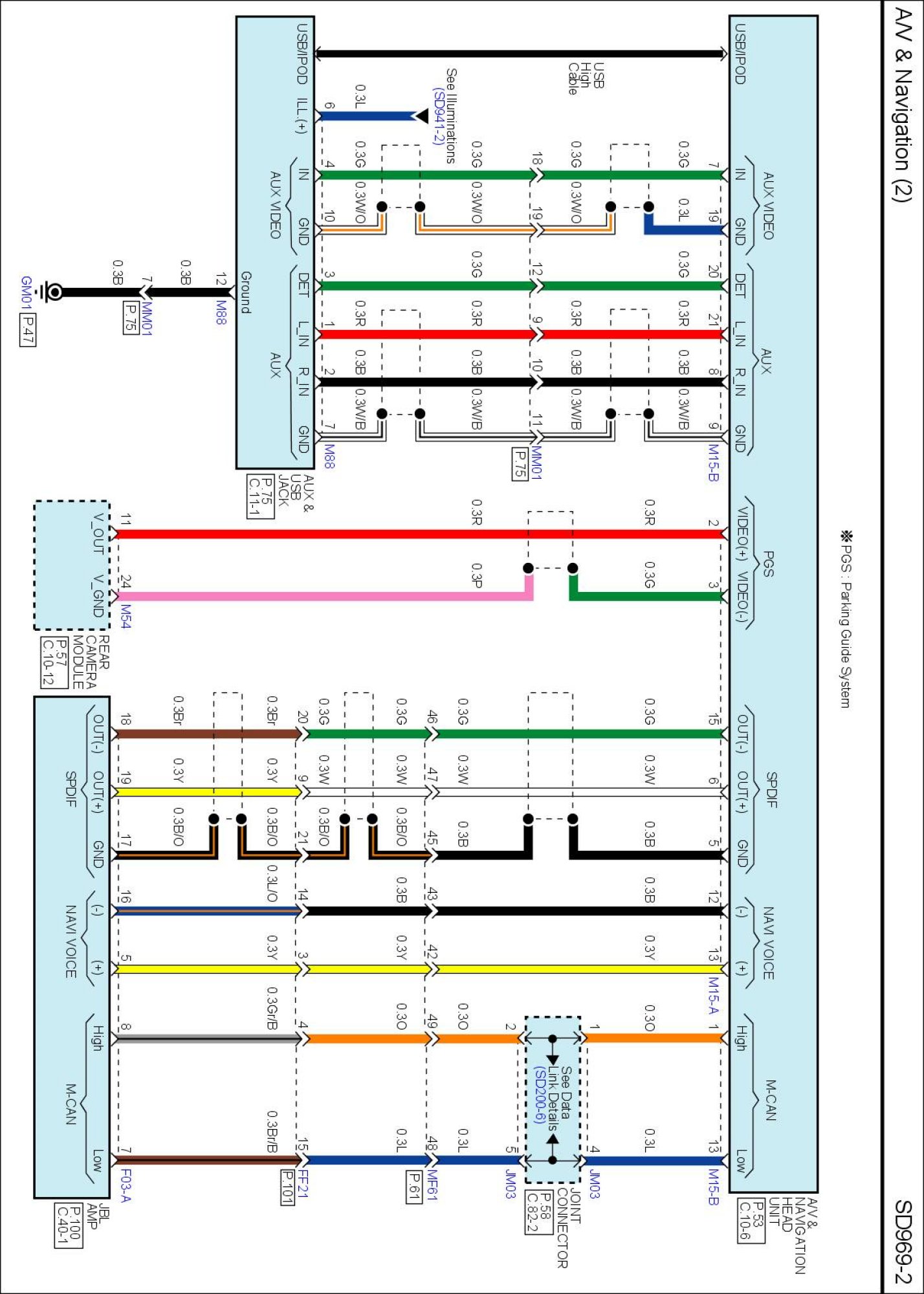

SD969-2 A/V & Navigation (2):

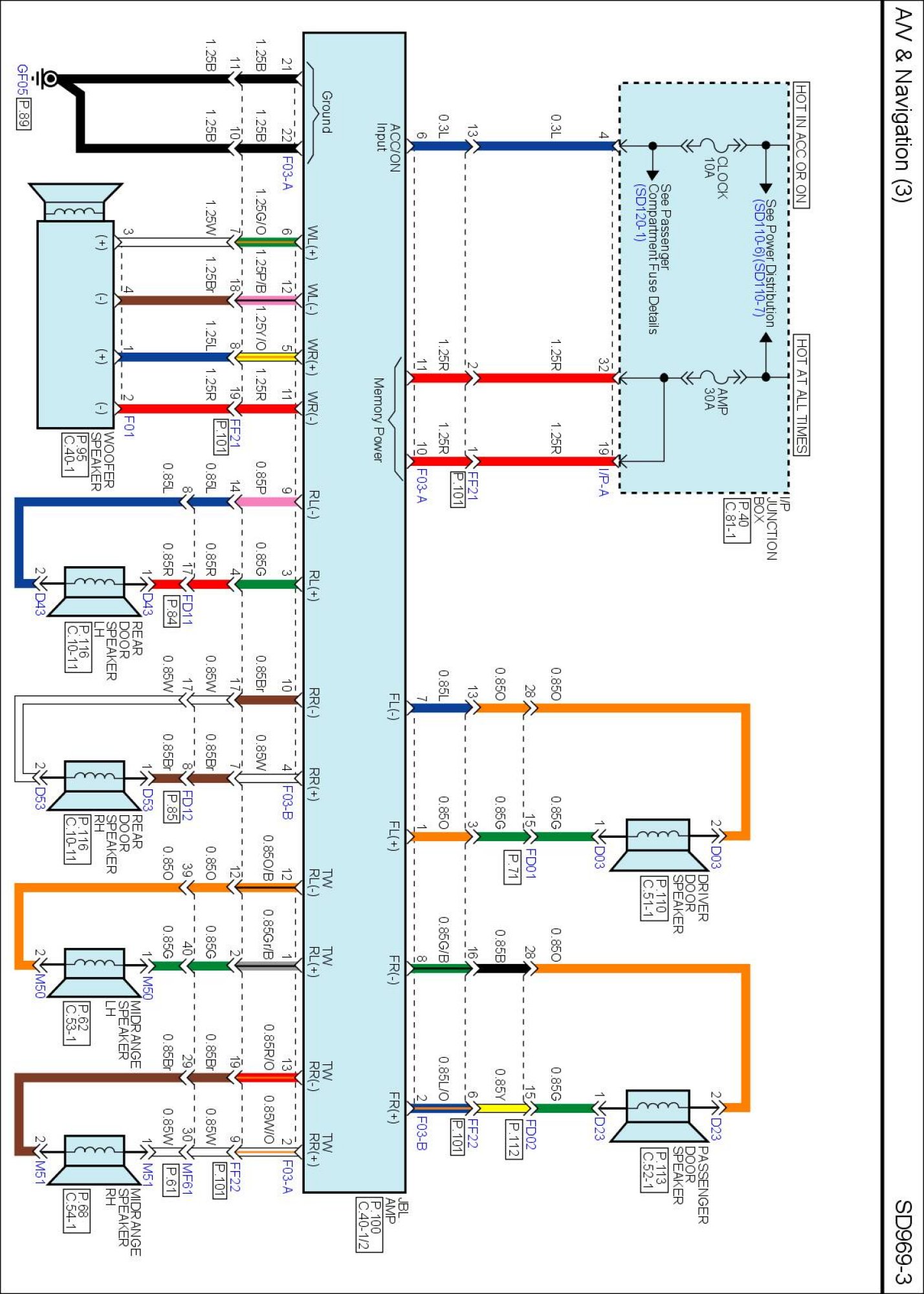

SD969-3 A/V & Navigation (3):
