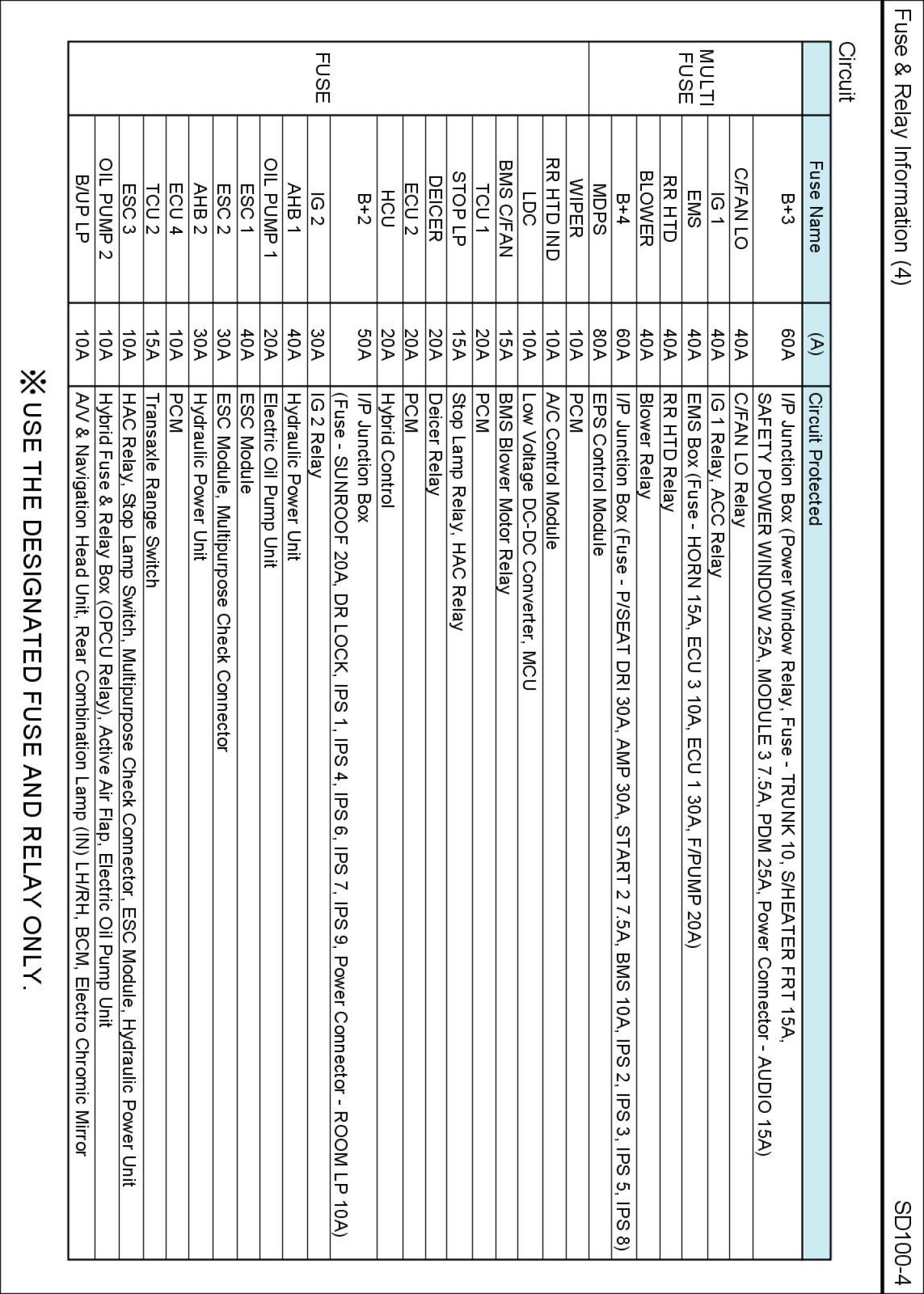

Fuse: Application and ID

I/P Junction Box Circuit Details:

E/R Fuse & Relay Box View:

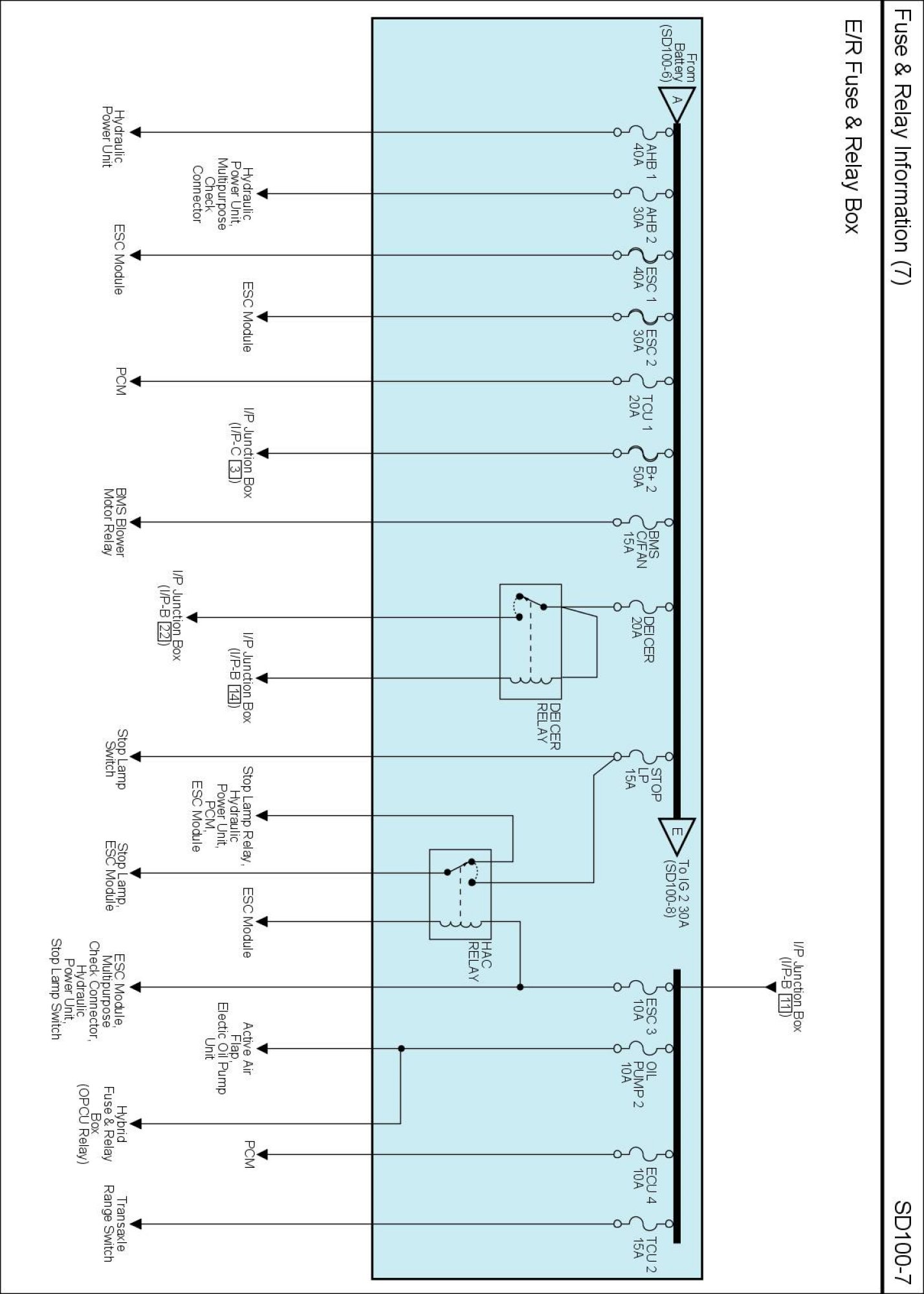

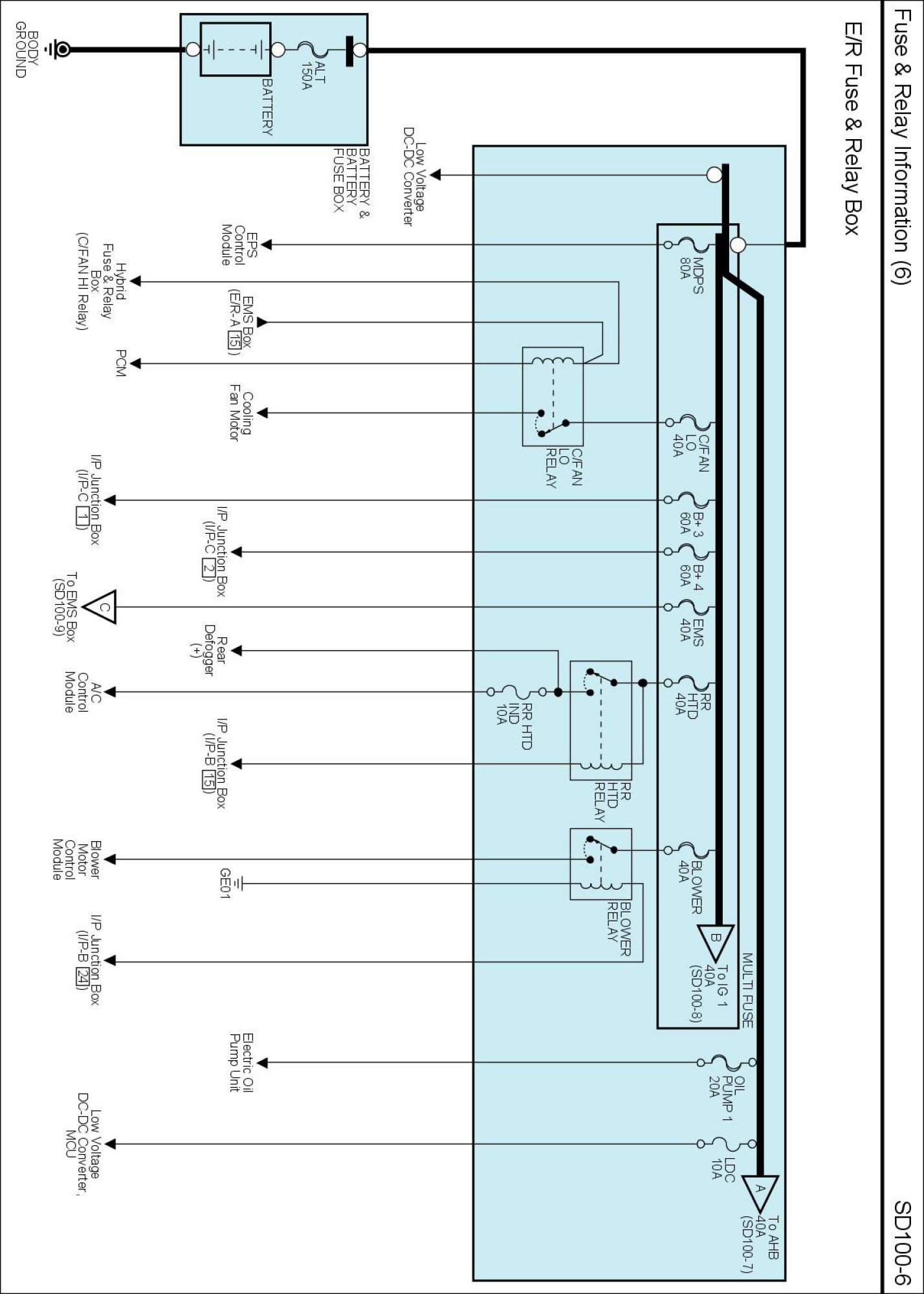

E/R Fuse & Relay Box Circuit Details:

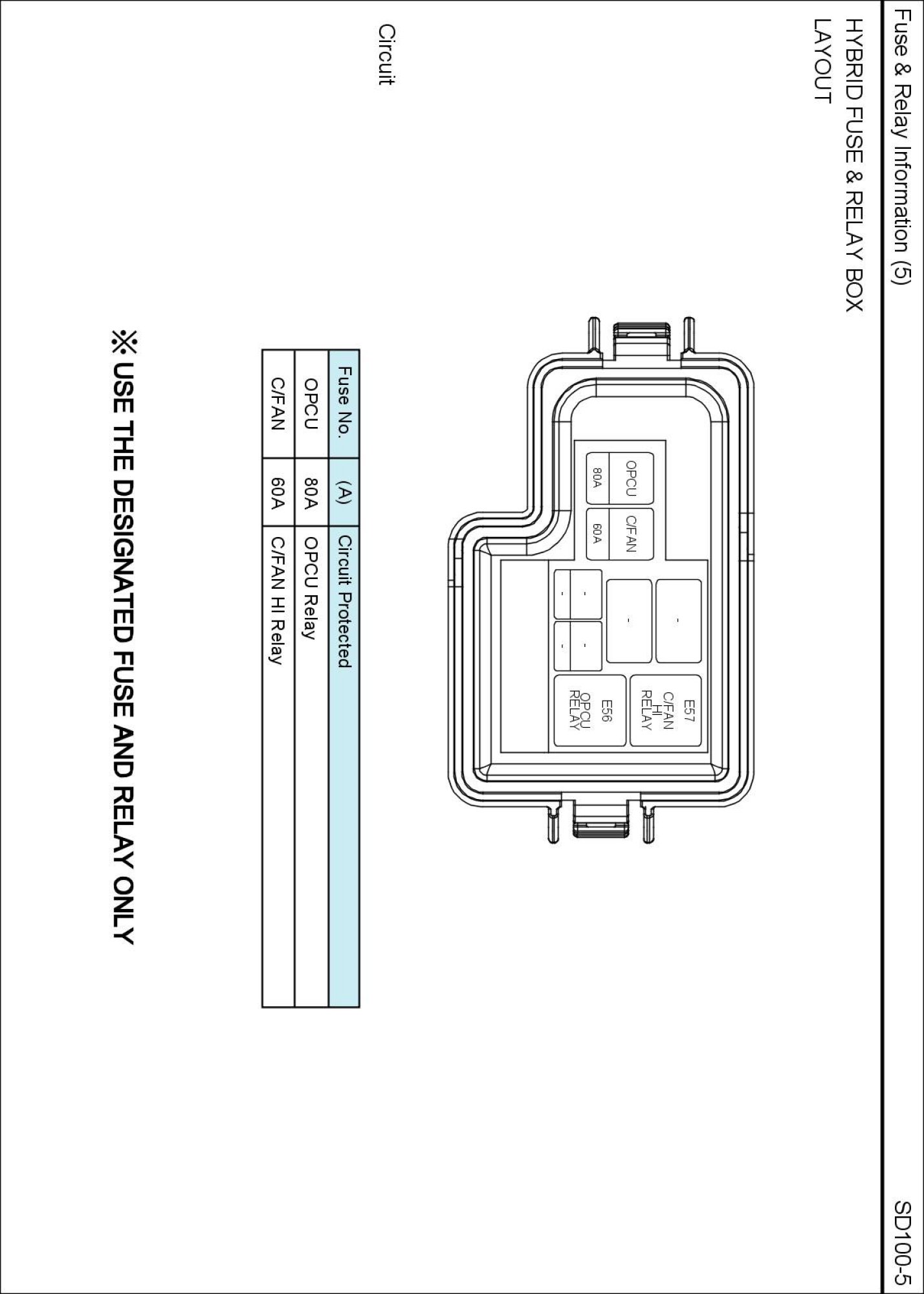

Hybrid Fuse & Relay Box View:

E/R Fuse & Relay Box View:

E/R Fuse & Relay Box View:

E/R Fuse & Relay Box View:

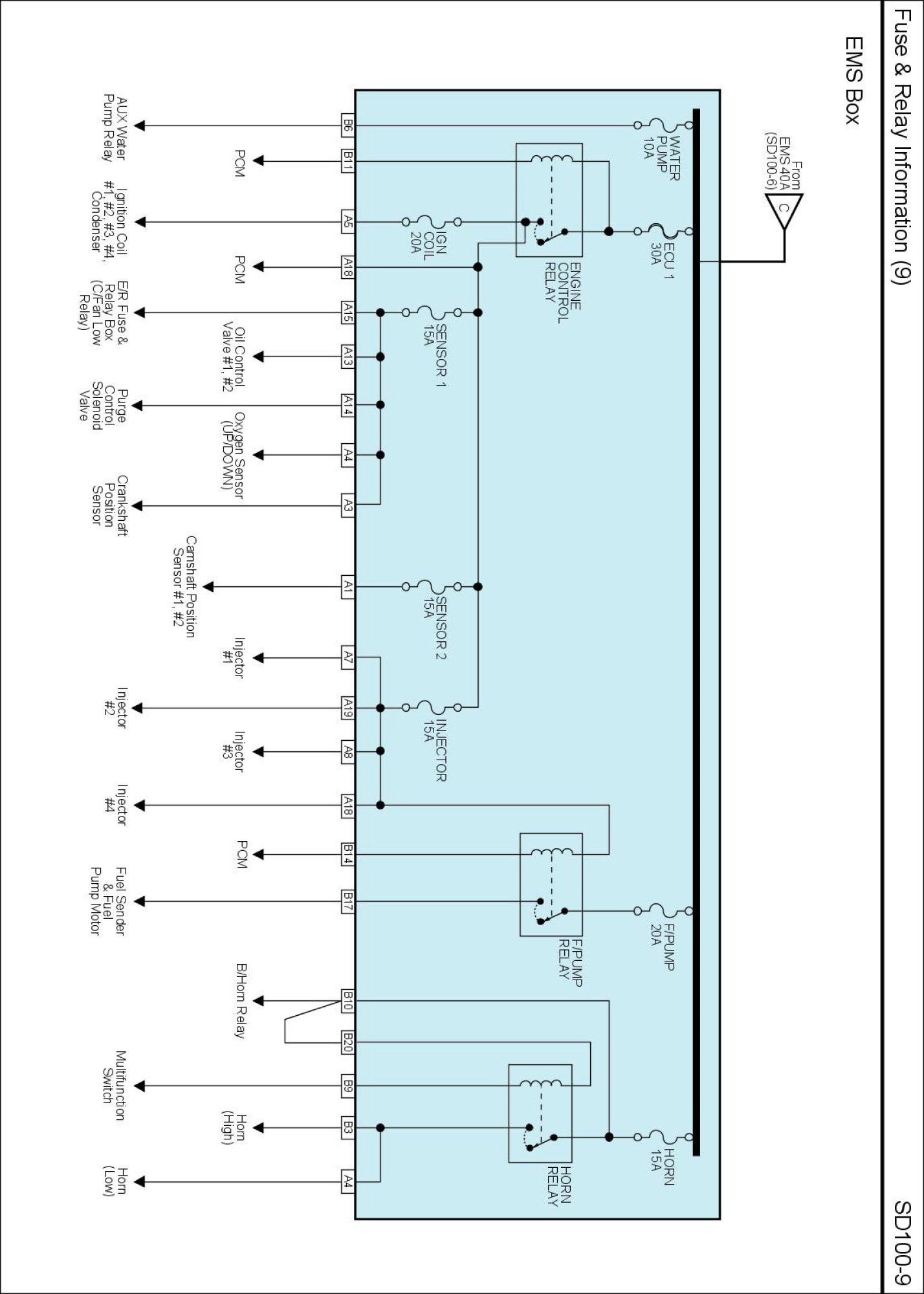

EMS Box View:
