Axle Nut





Axle Nut

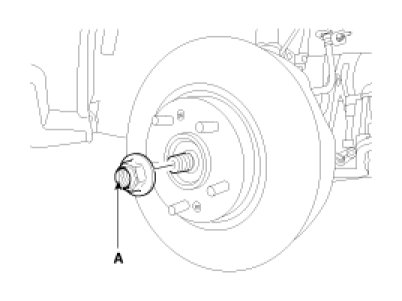

Remove driveshaft nut (A) from the front hub under applying the brake.

Tightening torque 215.7 - 254.9 N.m (20.0 - 26.0 kgf.m, 159.1 - 188.0 lb-ft)
