Repair Procedures

Replacement

Door Scuff Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim (A).

2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Front Pillar Trim

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front pillar trim (A).

2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Cowl Side Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front door scuff trim.
2. Remove the cowl side trim (A).

3. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Center Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front seat belt lower anchor.
2. Remove the door scuff trim.
3. Remove the center lower pillar trim (A).
4. Remove the center upper pillar trim (B).

5. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Rear Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the rear pillar lower trim (A).

2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Luggage Side Trim Replacement
1. Remove the rear seat.
2. Remove the rear seat belt lower anchor.
3. Remove the upper cover (A).

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not to bend or scratch the trim and panels.

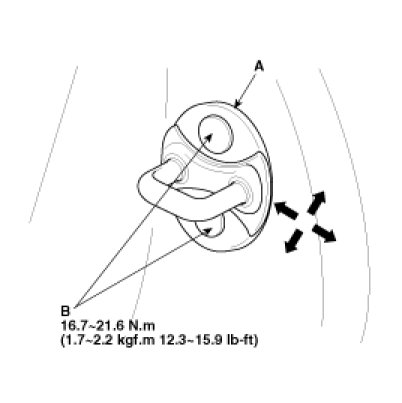

4. Remove the striker cover (B).
5. Remove the transverse trim (A).

6. After loosening the mounting screws and bolts, then remove the luggage side trim (A).

7. Installation is the reverse of removal.

Luggage Side Trim Replacement (Wagon)

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the luggage front covering trim (A).
