Fuel Tank Pressure Sensor
>>
Diagrams
>>
Connector Views
Connector Views

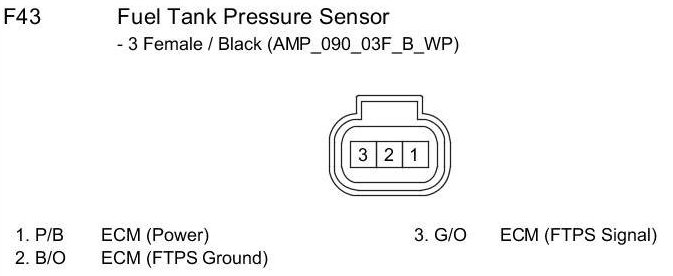

F43 Fuel Tank Pressure Sensor:
