Power Seat Switch
>>
Diagrams
>>
Driver Lumbar Support Switch
Driver Lumbar Support Switch

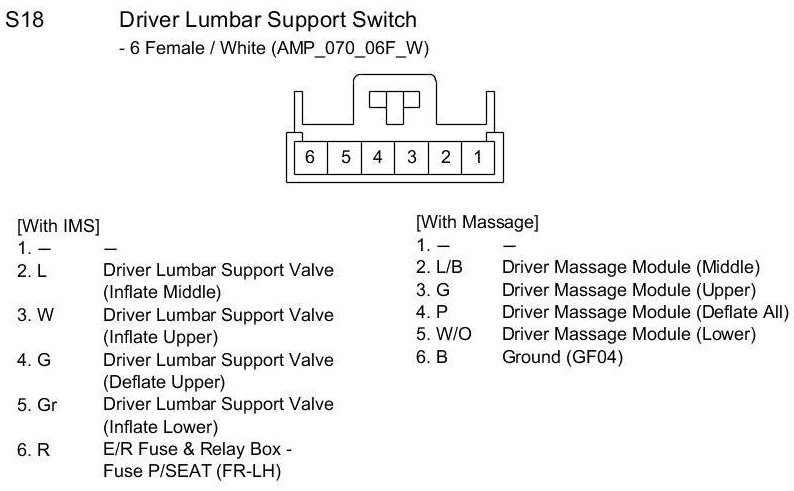

S18 Driver Lumbar Support Switch:
