Smart Key Unit
>>
Components And Components Location
Components And Components Location
Components (1)

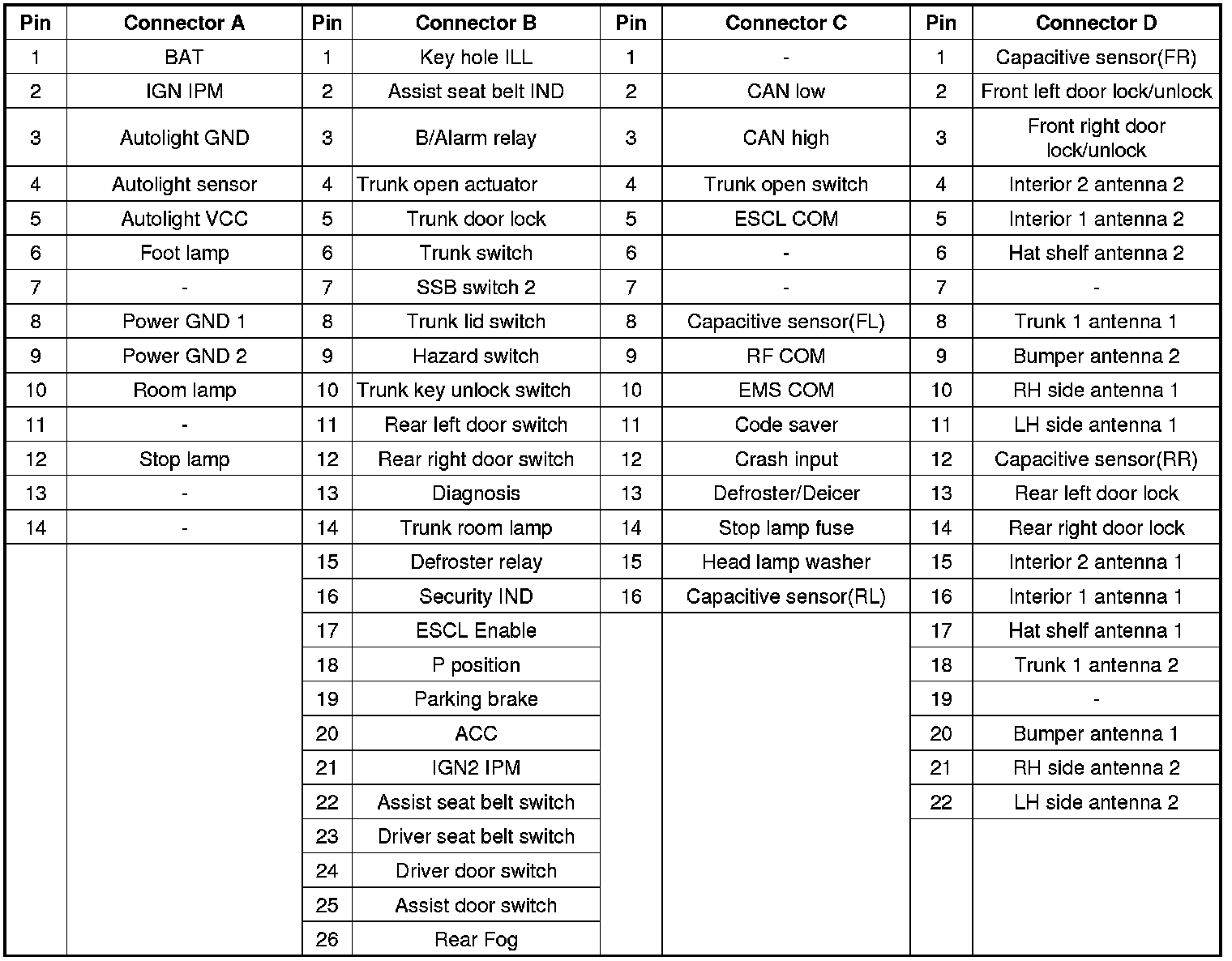

Connector Pin Information
Components(2)
