Circuit Diagram

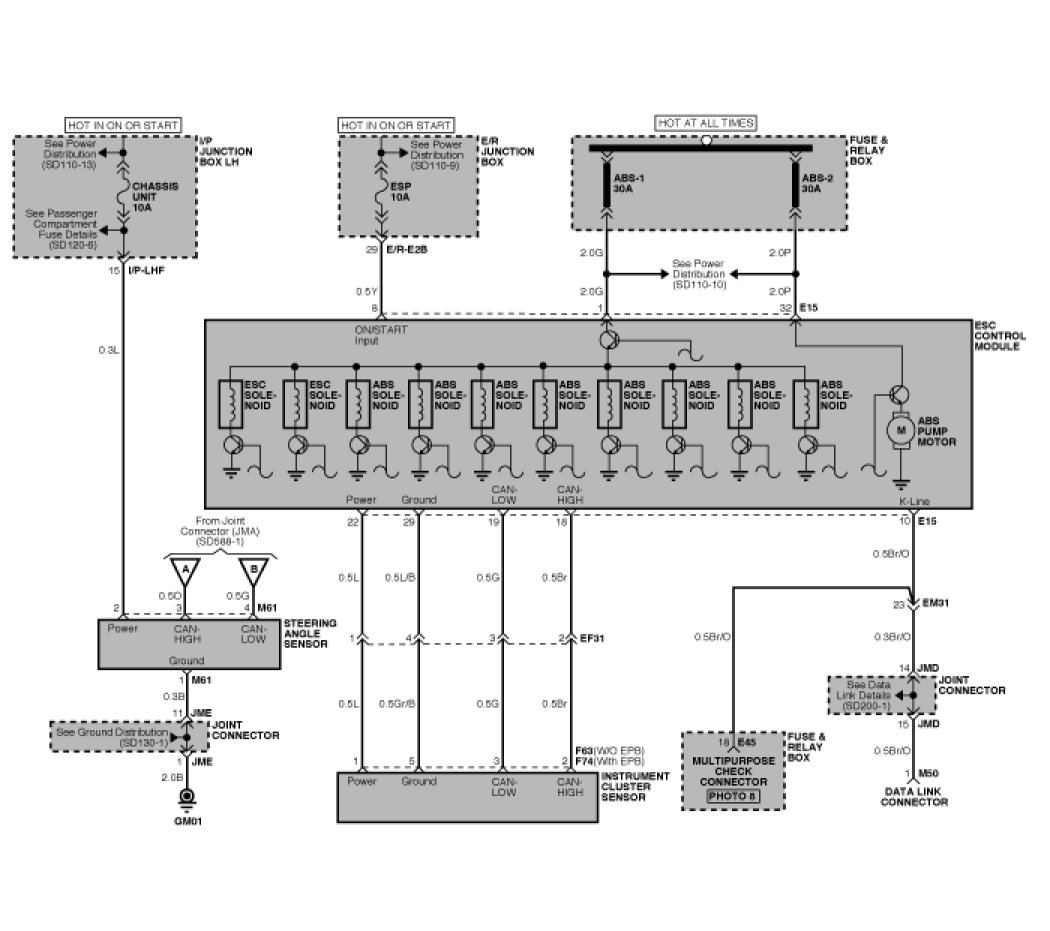

ESC Circuit Diagram (1)





ESC Circuit Diagram (2)





ESC Circuit Diagram (3)

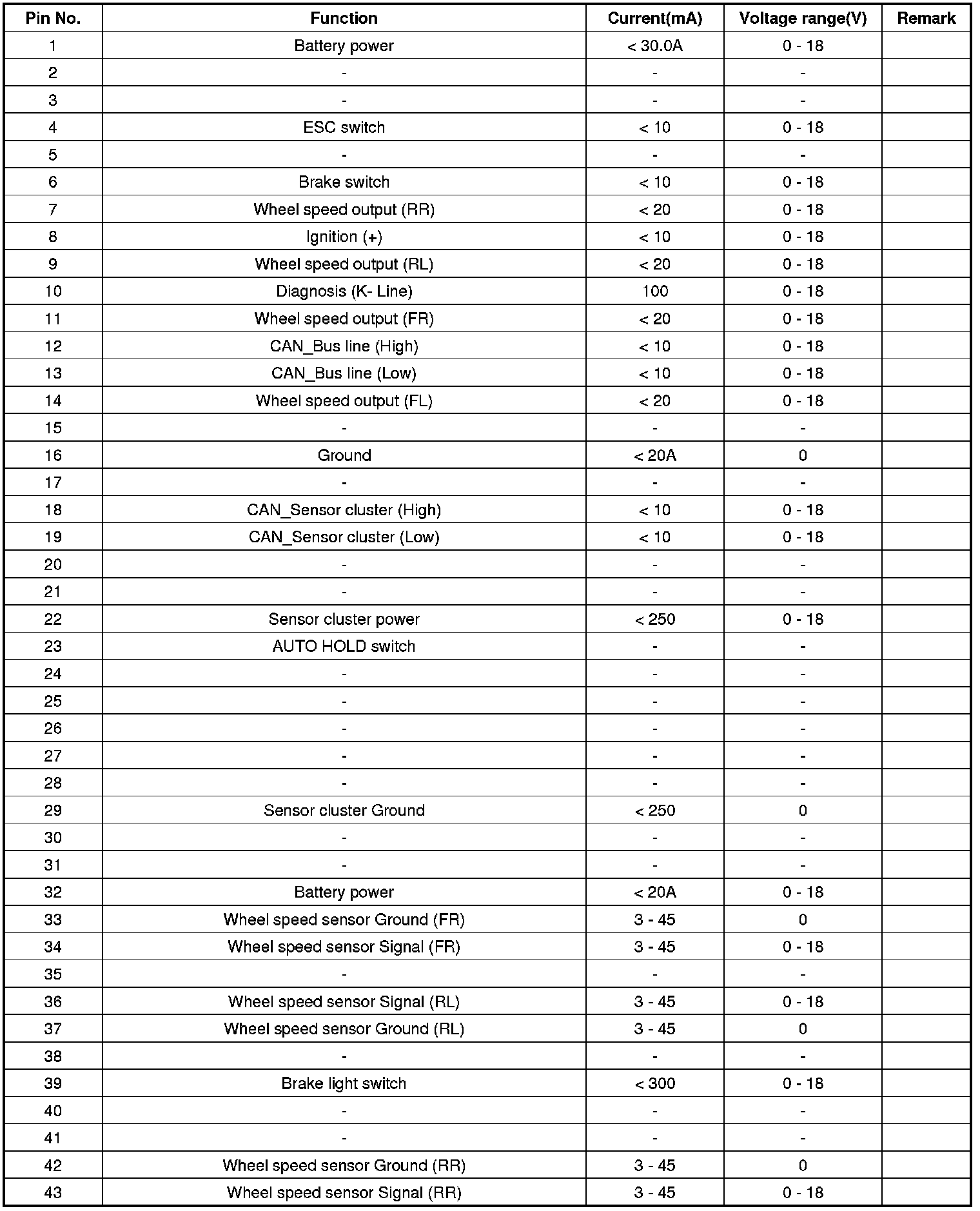

ESC Connector Input/Output
