Diagram Set SD110 (Power Distribution)

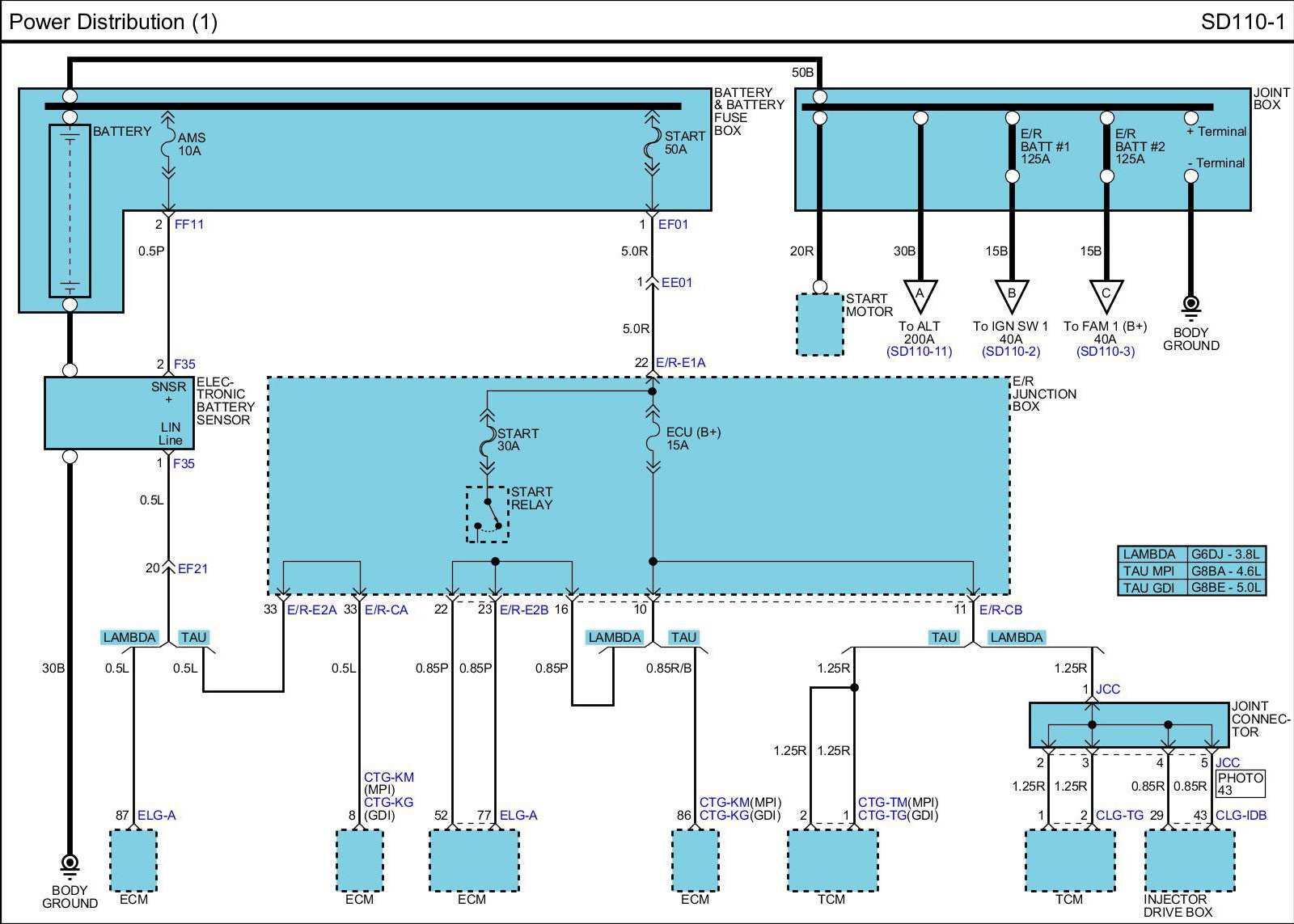

SD110-1 Power Distribution (1):

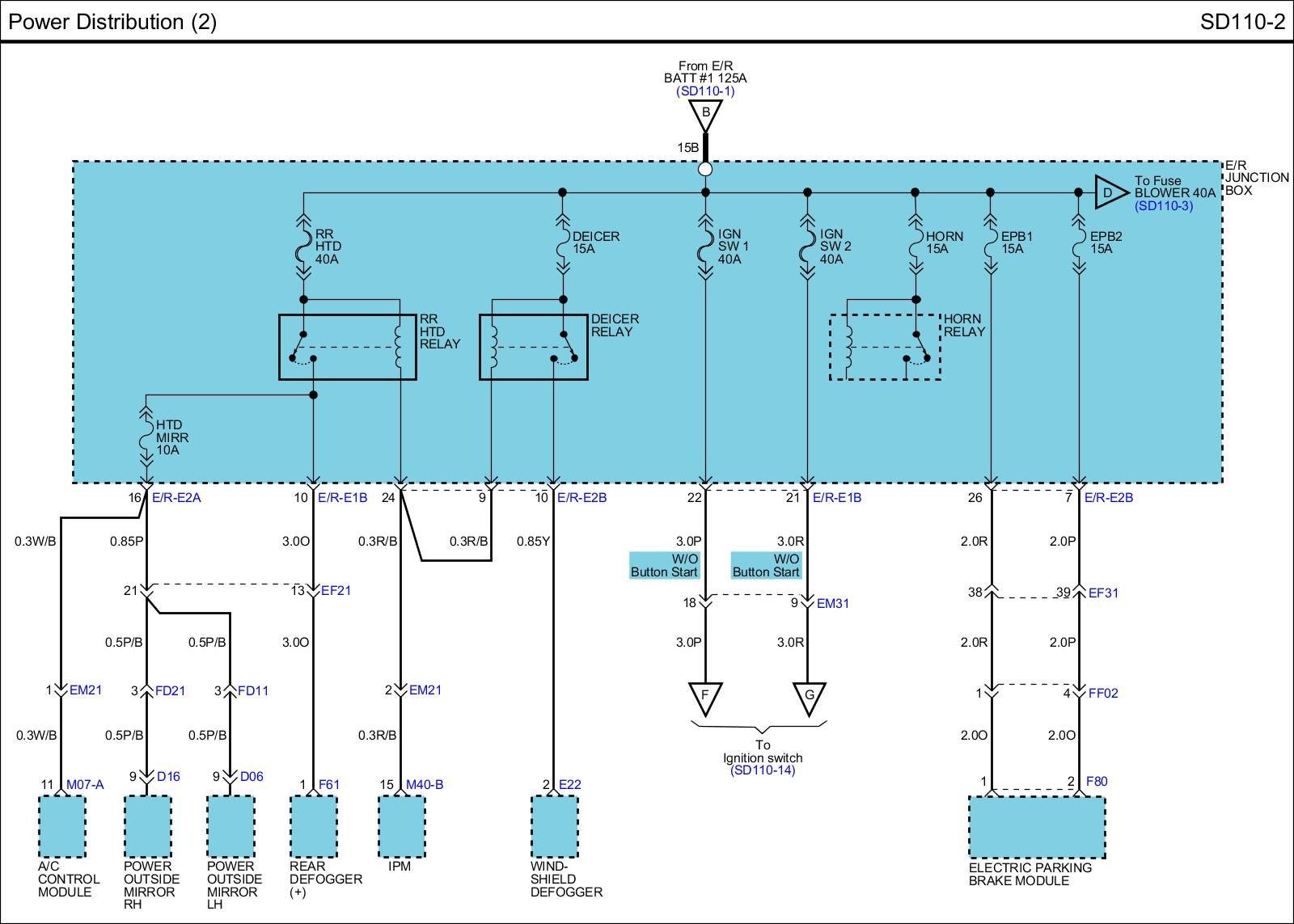

SD110-2 Power Distribution (2):

SD110-3 Power Distribution (3):

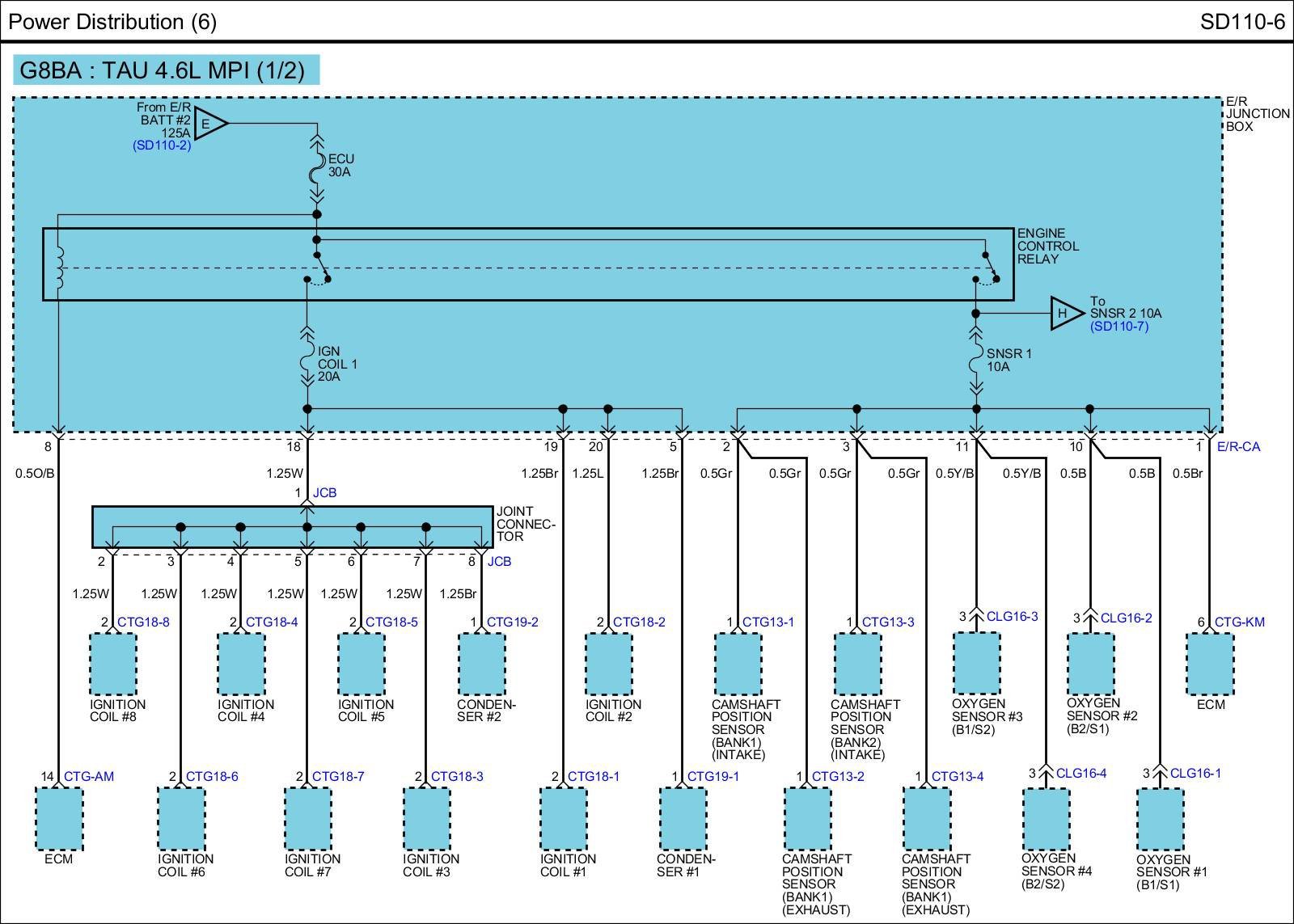

SD110-6 Power Distribution (6):

SD110-7 Power Distribution (7):

SD110-10 Power Distribution (10):

SD110-11 Power Distribution (11):

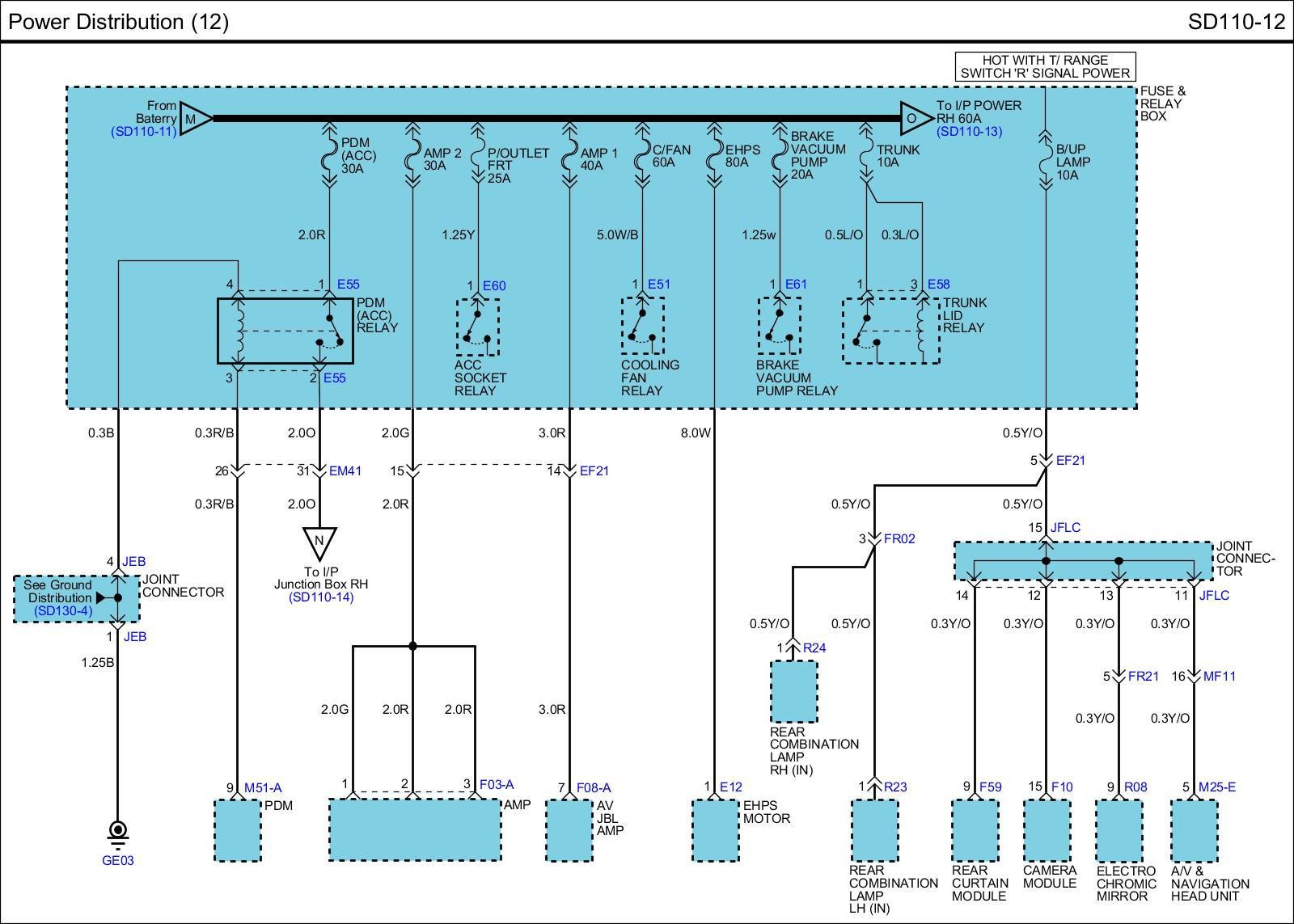

SD110-12 Power Distribution (12):

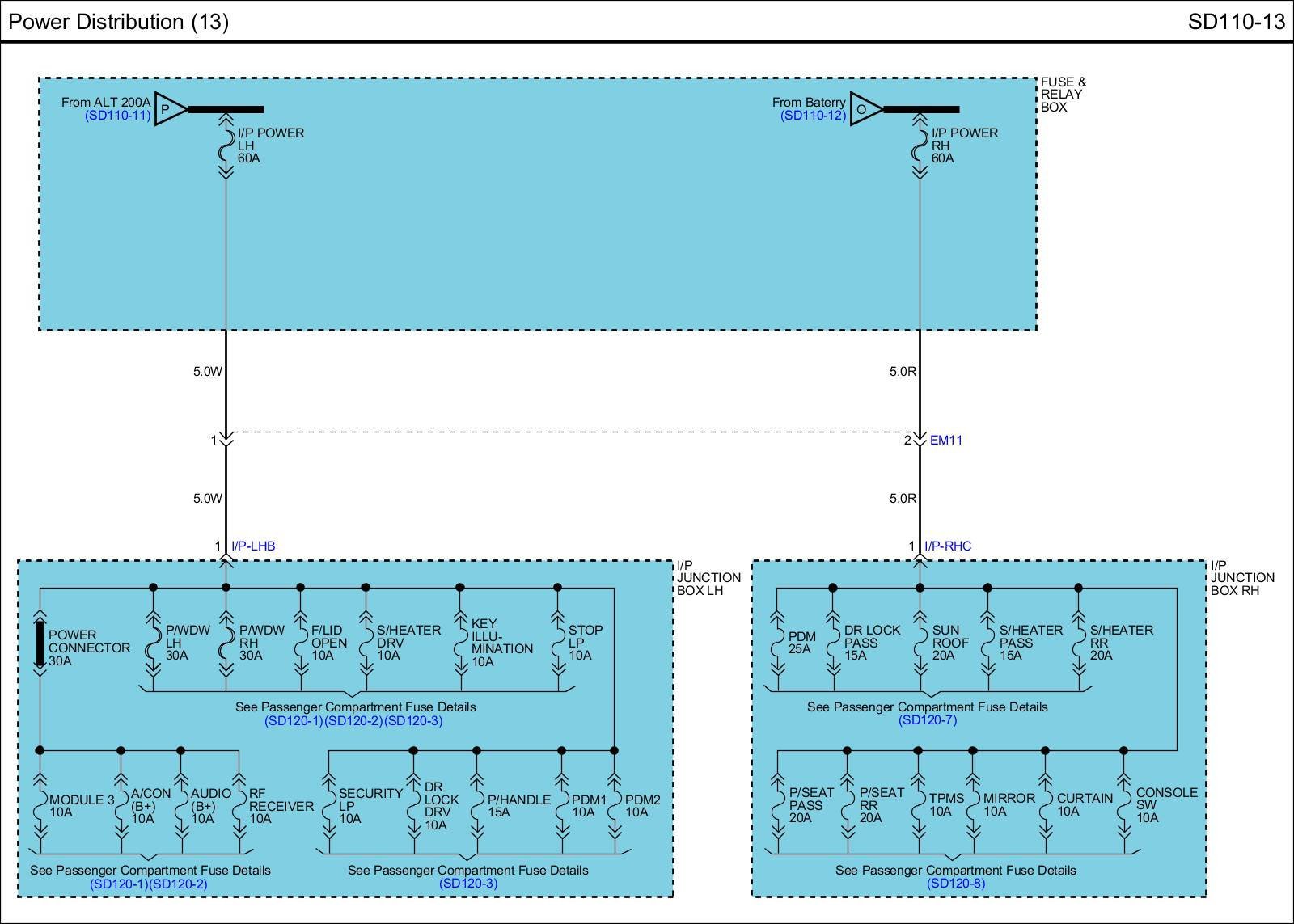

SD110-13 Power Distribution (13):

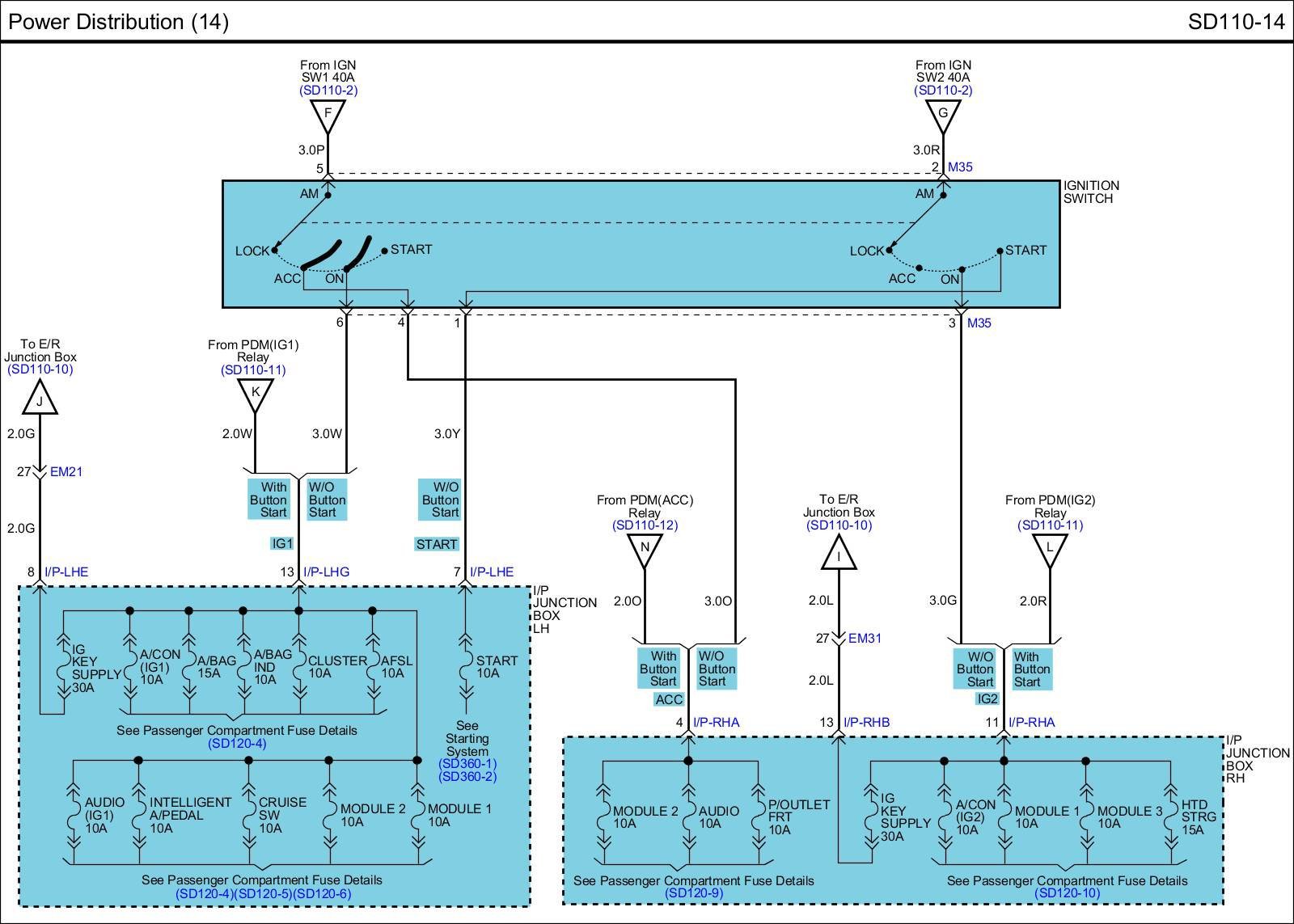

SD110-14 Power Distribution (14):
