Timing Cover

Timing Cover

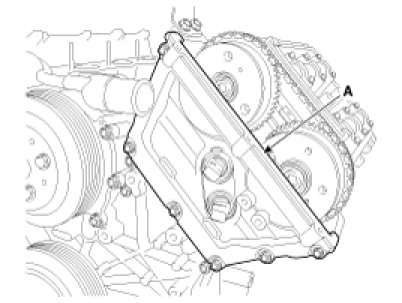

Install the timing chain lower cover (A).

Tightening torque 23.5 - 27.5N.m (2.4 - 2.8kgf.m, 17.4 - 20.3lb-ft)

[Front]






[Rear]






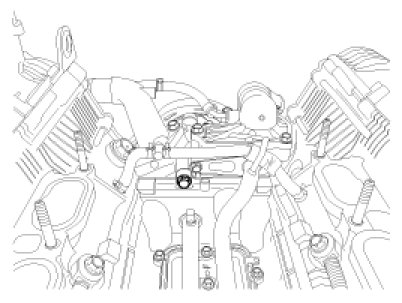

Install the timing chain upper cover (A).

Tightening torque 9.8 - 11.8Nm (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)
