Dome Lamp: Service and Repair

Inspection

Room Lamp

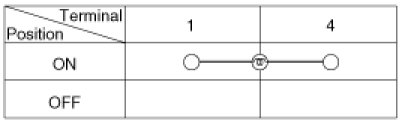

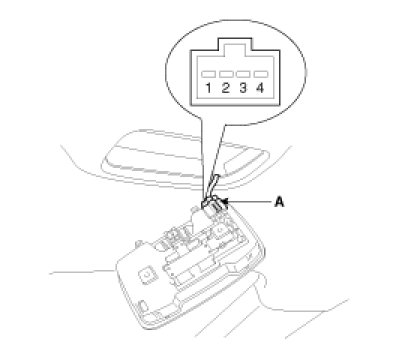

1. Check that the switch operates properly after disconnecting the room lamp connector (A).














Removal

Room Lamp
1. Disconnect the negative(-) battery terminal.
2. Carefully remove the lens (A) using a small screwdriver.

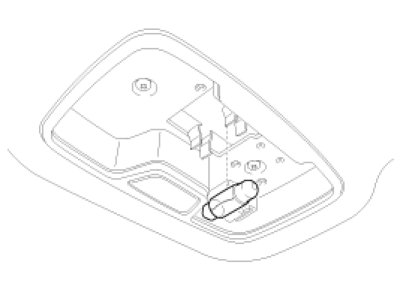

3. Remove the bulb.




4. Remove the room lamp after loosening the mounting screws.

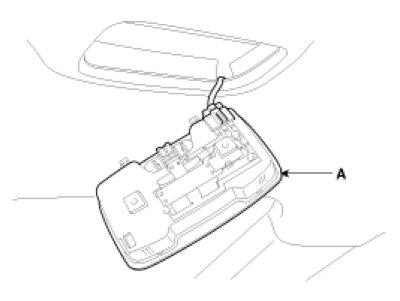

5. Remove the room lamp assembly (A) from the head lining after disconnecting the connector.





Vanity Lamp
1. Disconnect the negative (-) battery terminal.
2. Remove the vanity lamp (A) prying out with a small screwdriver.




3. Remove the vanity lamp assembly after disconnecting the connector (A).






Installation

Room Lamp
1. Reconnect the connector.
2. Install the room lamp assembly.
3. Install the len.

Vanity Lamp
1. Reconnect the vanity lamp connector.
2. Install the vanity lamp.
