Engine/Fuel - MIL ON/DTC P2562 Set
NUMBER12-EM-003
GROUP
ENGINE
DATE
JULY 2012
MODEL(S)
Sonata (YF)
SUBJECT:

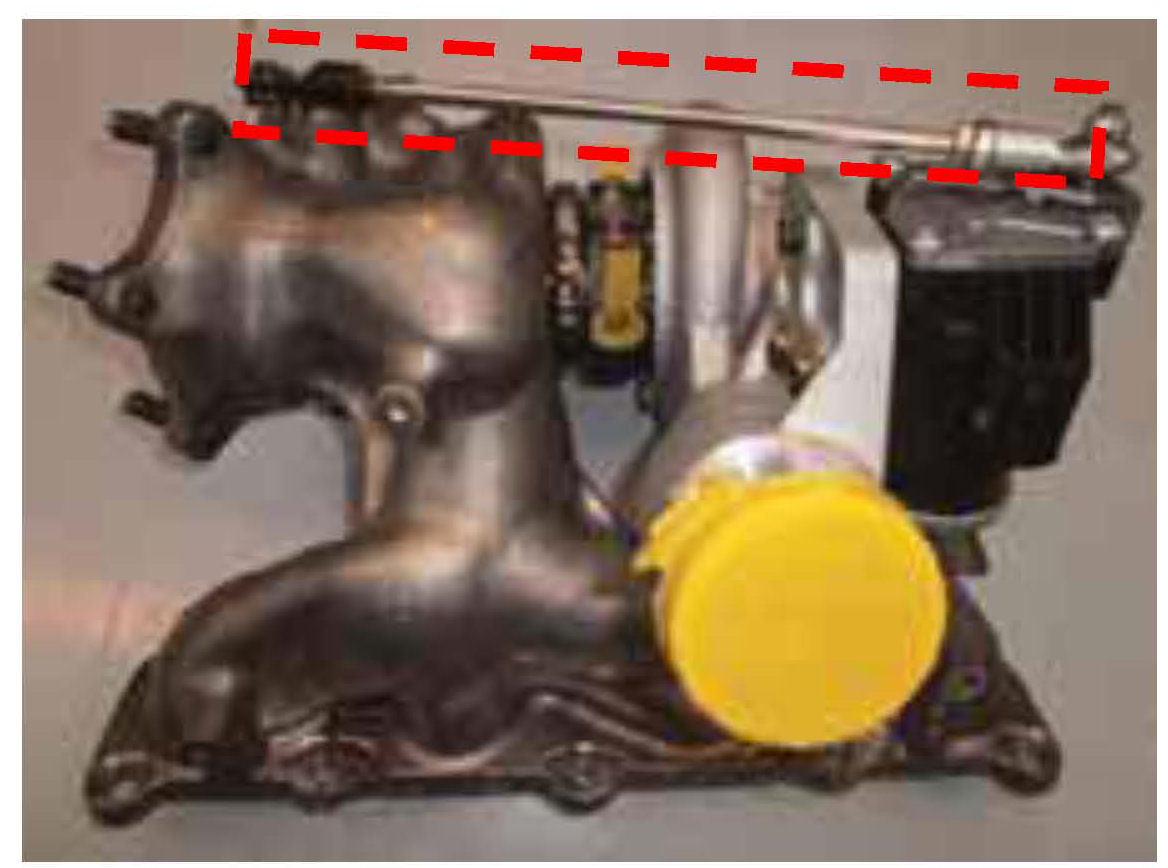

EXHAUST WASTE GATE ACTUATOR (EWGA)
INSPECTION AND ADJUSTMENT
This bulletin supersedes TSB 11-EM-001 to update the contents with the latest information.
Description:
On some 2011-2012 model year Sonata vehicles equipped with the 2.0T (turbo-GDI) engine, the malfunction indicator light may illuminate with DTC P2562 Turbocharger Boost Control Position Sensor "A" Circuit. This bulletin describes the procedure to inspect the voltage value for
boost pressure actuator position control by using GDS and adjust the EWGA rod length if necessary.
Applicable Vehicles:
Sonata (YF) equipped with the 2.0T engine produced beginning August 23,
2010 through January 5, 2012

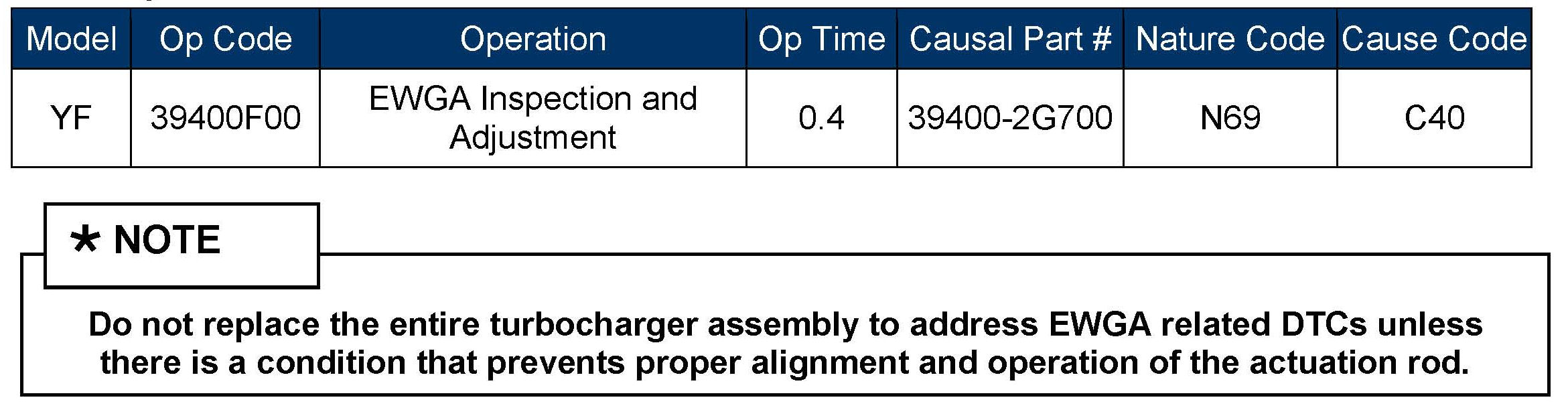

Warranty Information:
Inspection Procedure:

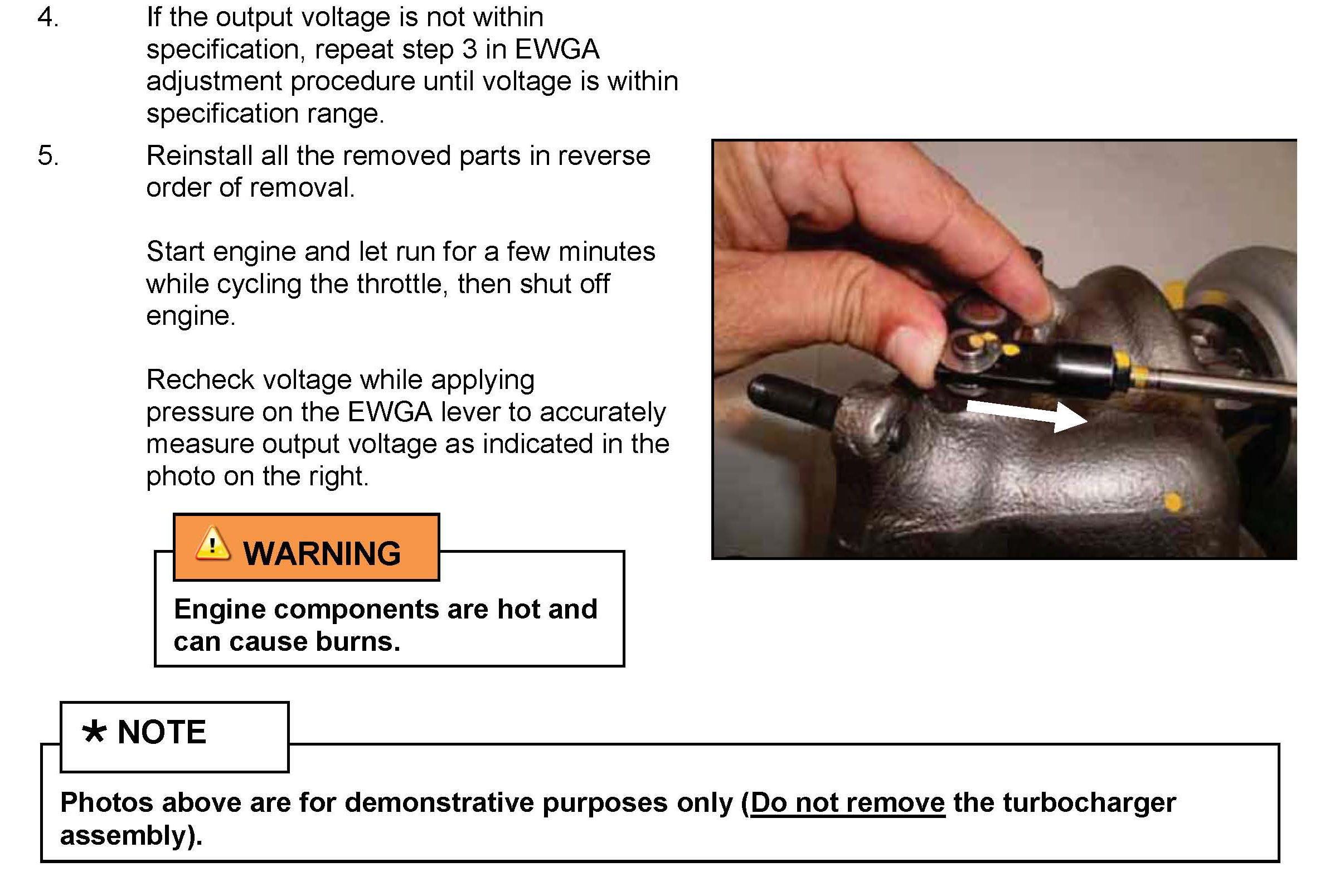

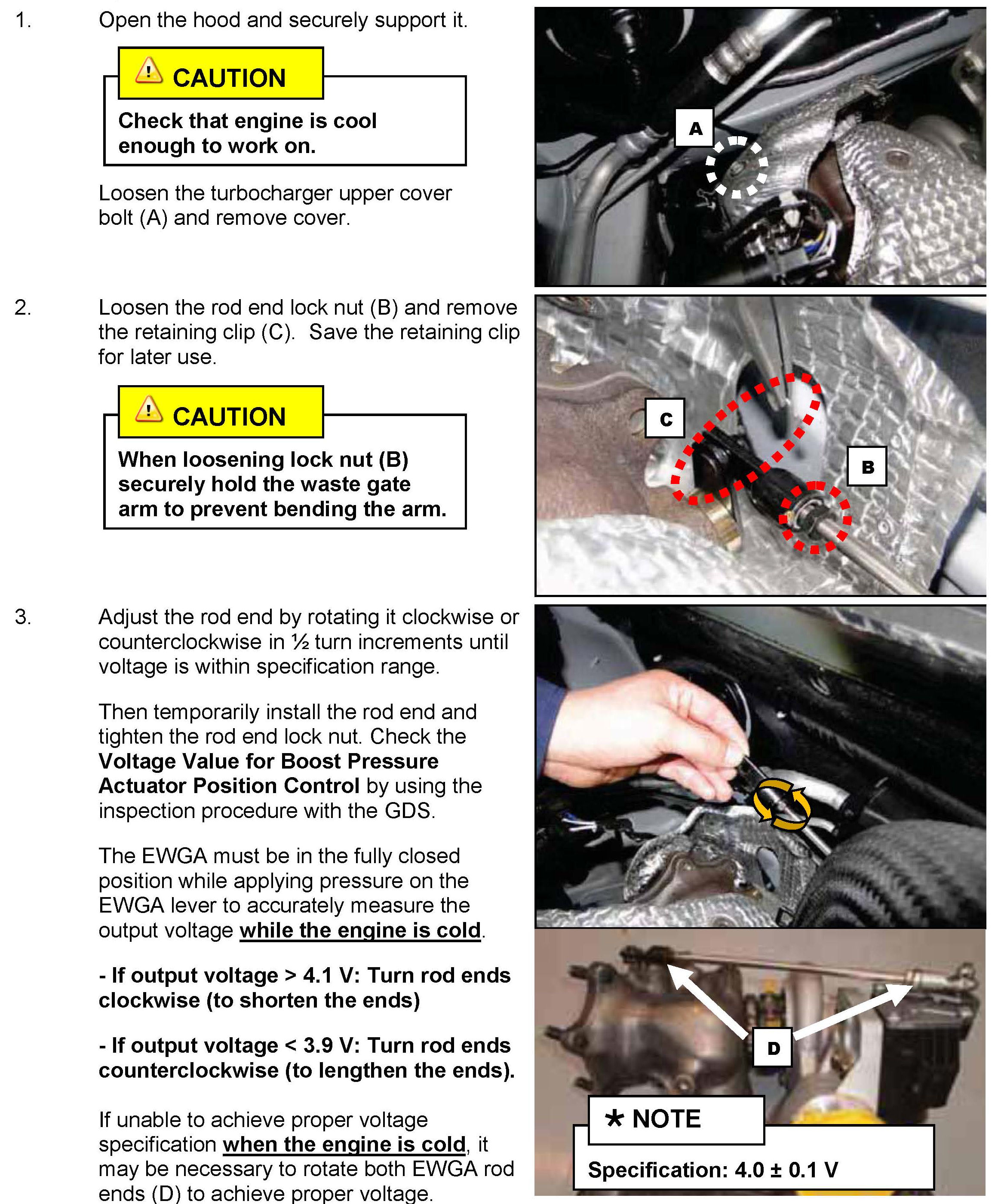

EWGA Adjustment Procedure:
