Home >> Hyundai >> 2012 >> Sonata L4-2.4L Hybrid >> Repair and Diagnosis >> Diagrams >> Connector Views >> Component Connectors >> M11 Clock (W/O Front Monitor)

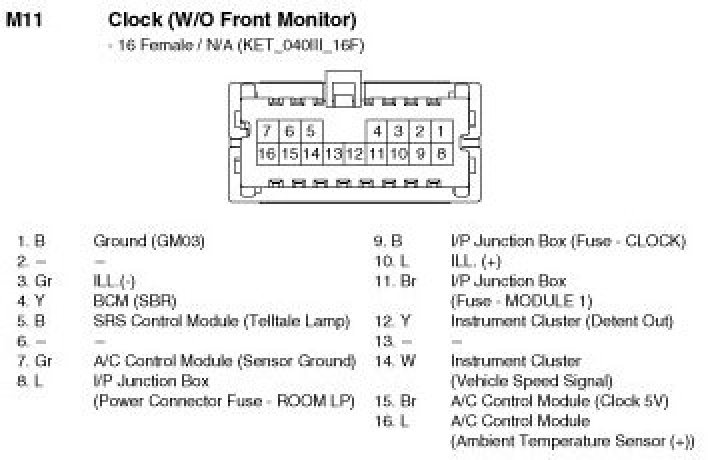

M11 Clock (W/O Front Monitor)

M11 Clock (W/O Front Monitor):
