Hybrid Starter & Generator Motor

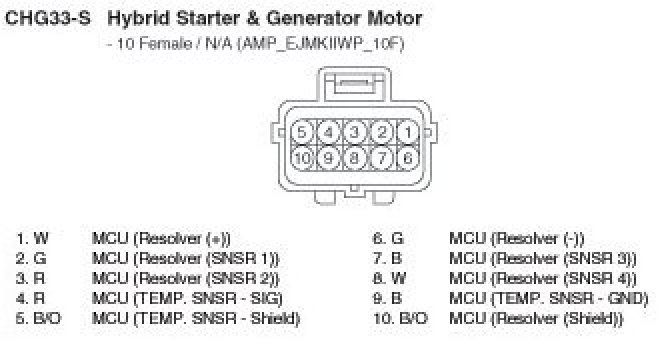

CHG33-S Hybrid Starter & Generator Motor:





CHG33-P Hybrid Starter & Generator Motor:
