Power Trunk / Liftgate Lock Switch
>>
License Lamp (Trunk Lid Switch & Rear Camera)
License Lamp (Trunk Lid Switch & Rear Camera)

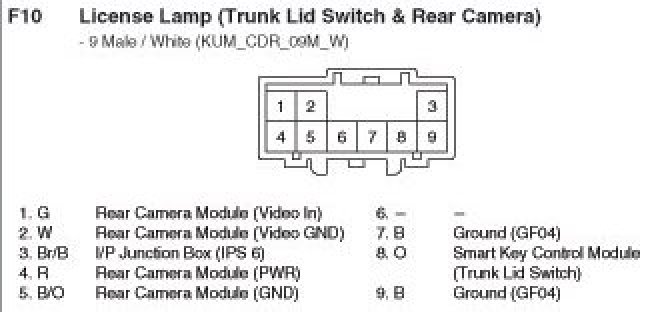

F10 License Lamp (Trunk Lid Switch & Rear Camera):
