Hyundai
>>
2012
>>
Sonata L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Number
>>
Diagram Set SD588 (Active Hydraulic Booster (AHB) System)
Diagram Set SD588 (Active Hydraulic Booster (AHB) System)

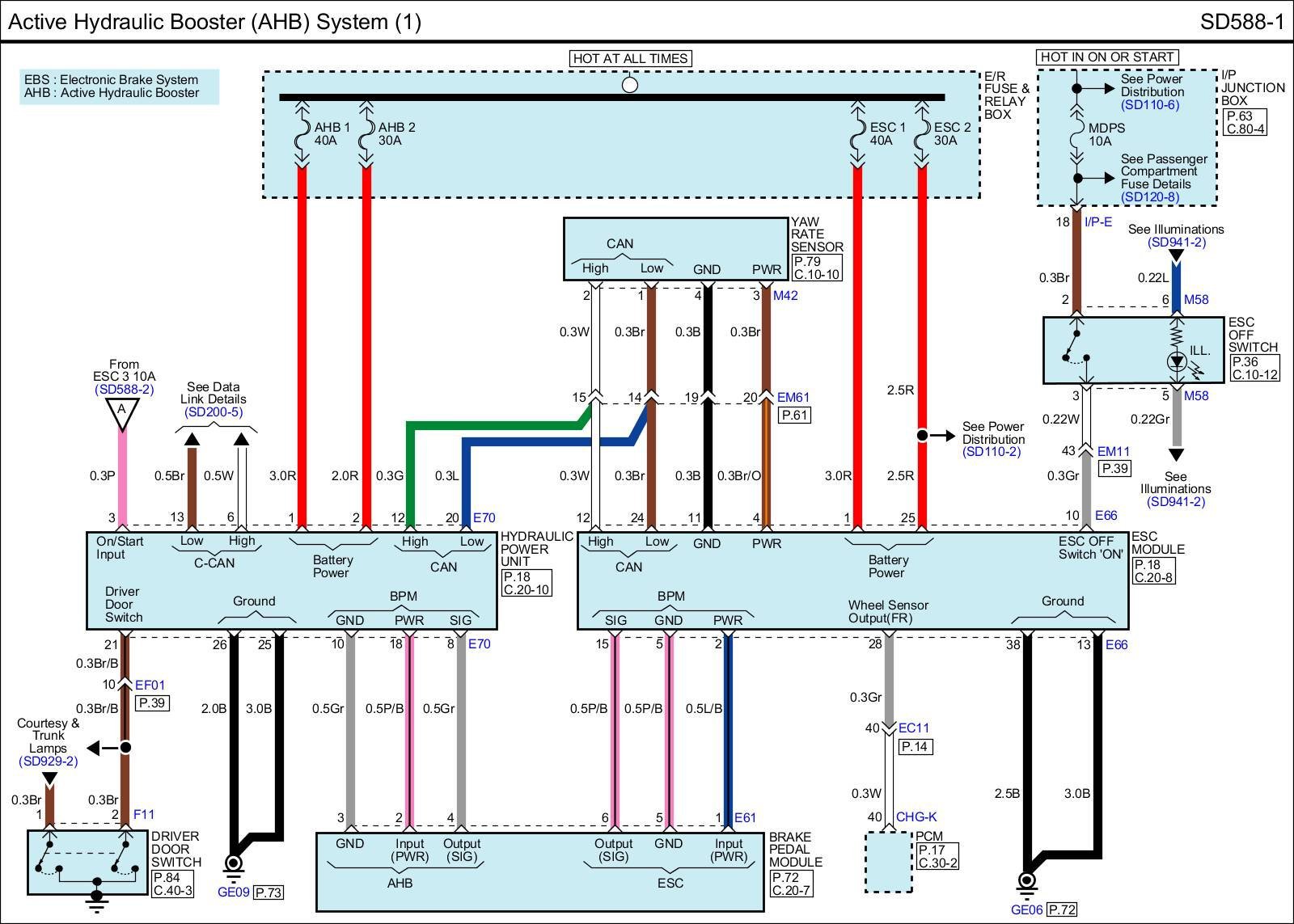

SD588-1 Active Hydraulic Booster (AHB) system (1):

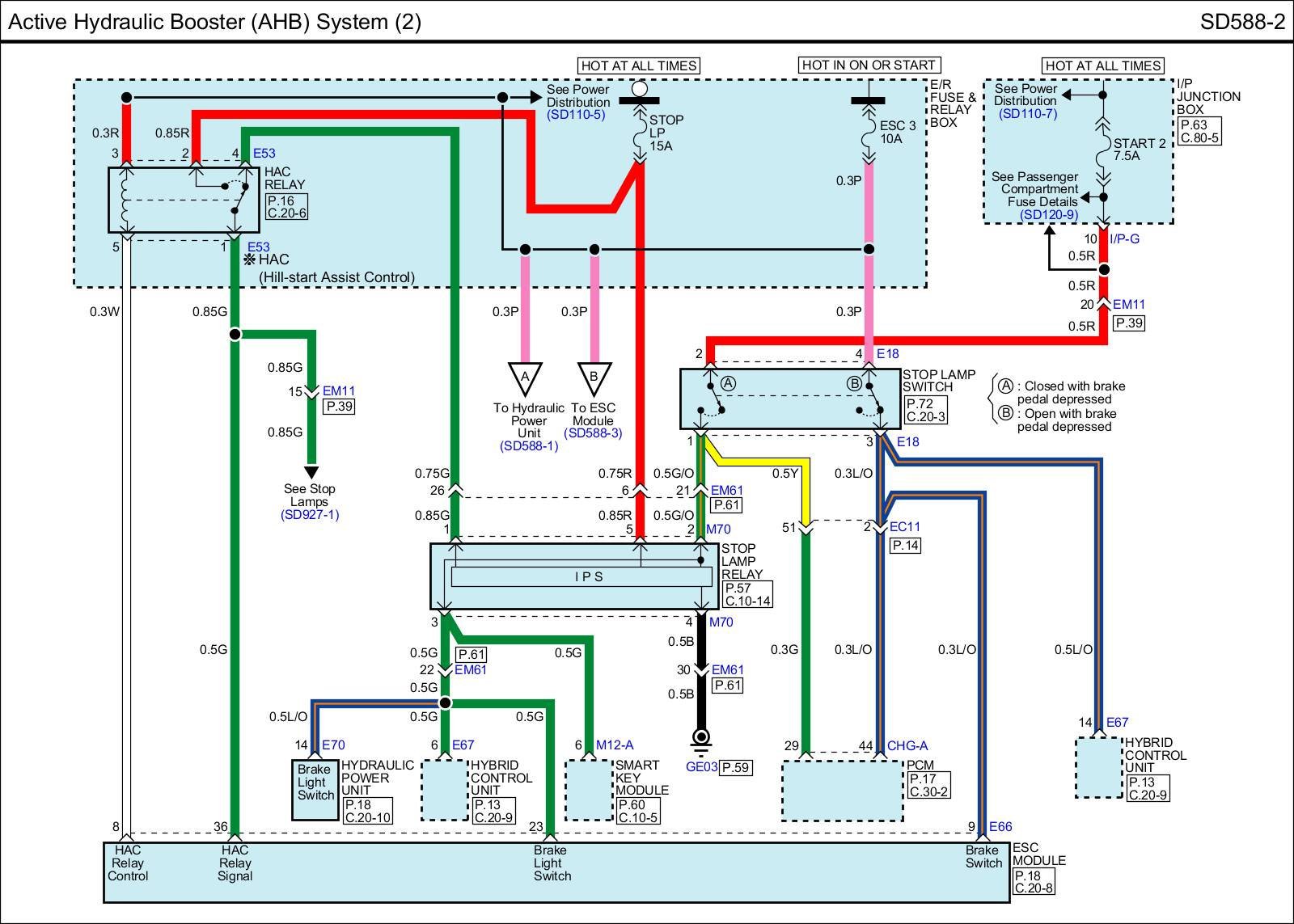

SD588-2 Active Hydraulic Booster (AHB) system (2):

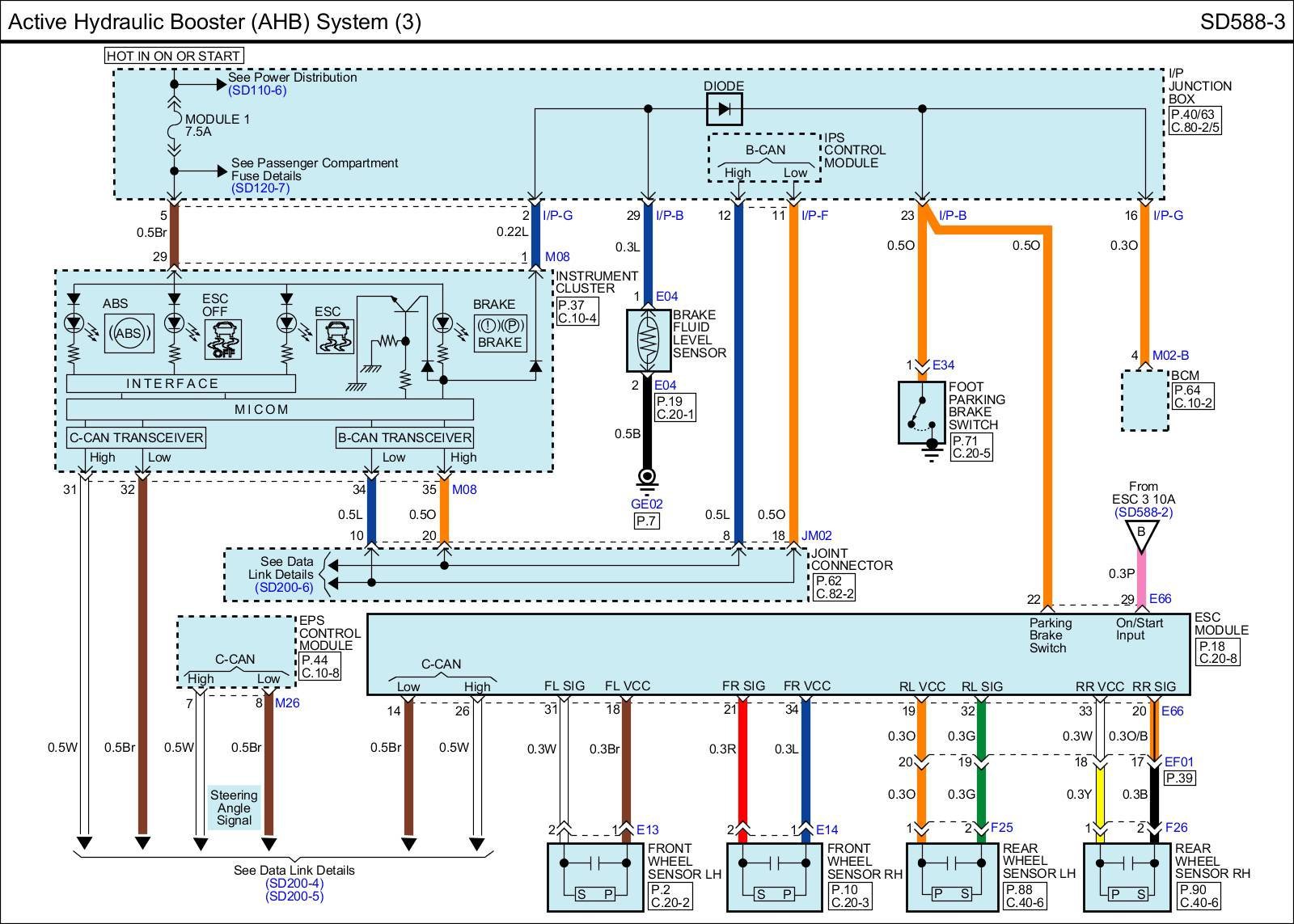

SD588-3 Active Hydraulic Booster (AHB) system (3):
