Diagram Set SD851 (Electro Chromic Mirror System)
Diagram Set SD851 (Electro Chromic Mirror System)
SD851-1 Electro Chromic Mirror System (1):
SD851-2 Electro Chromic Mirror System (2):

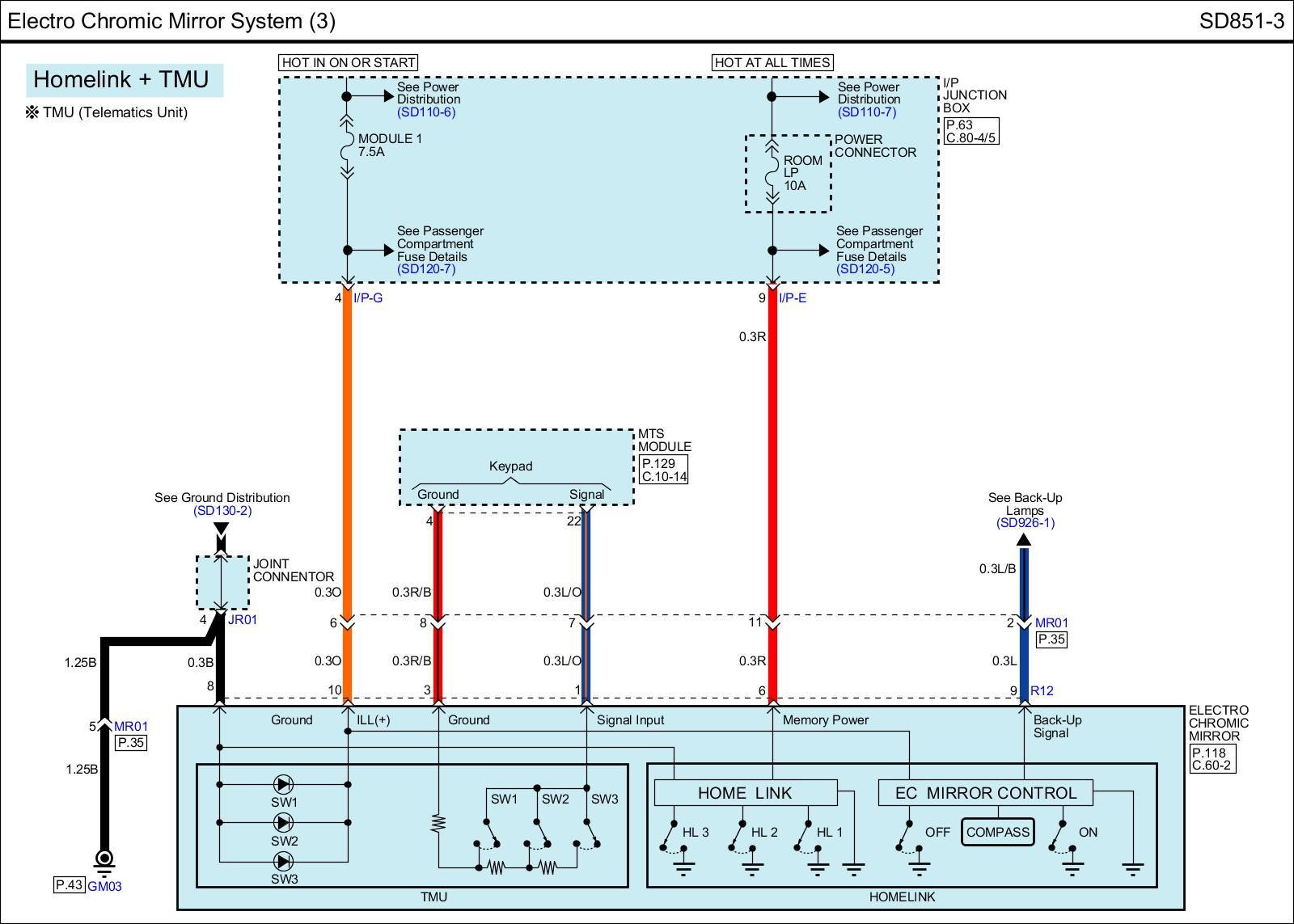

SD851-3 Electro Chromic Mirror System (3):
