Hybrid Motor System





Specifications

Hybrid Motor

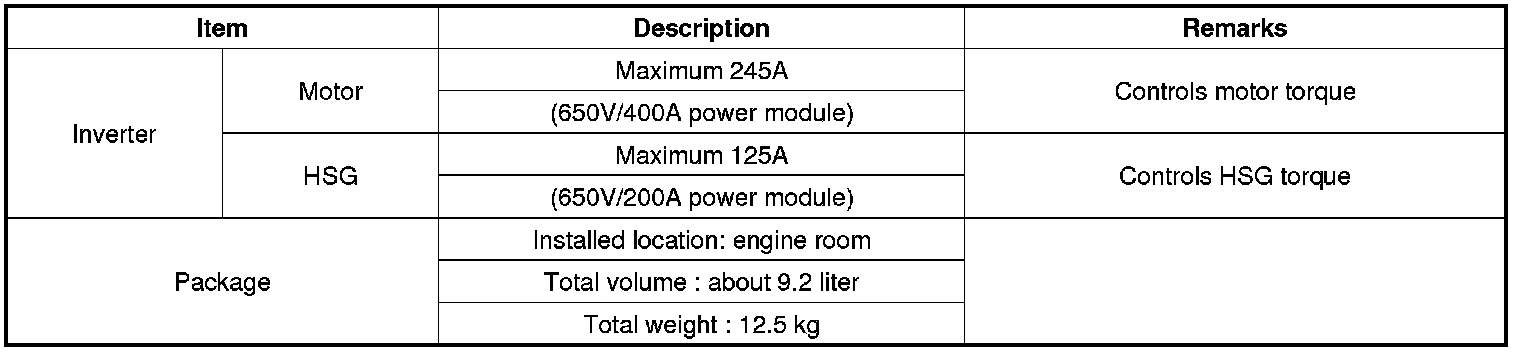

Inverter (MCU)

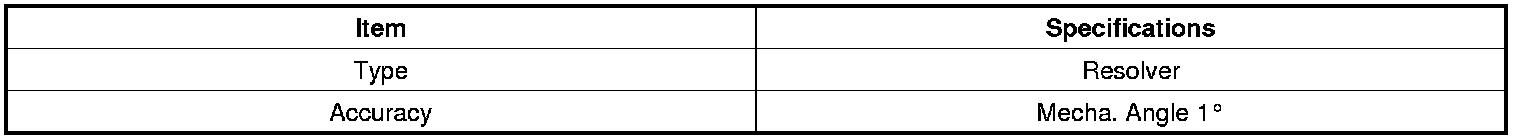

Resolver sensor

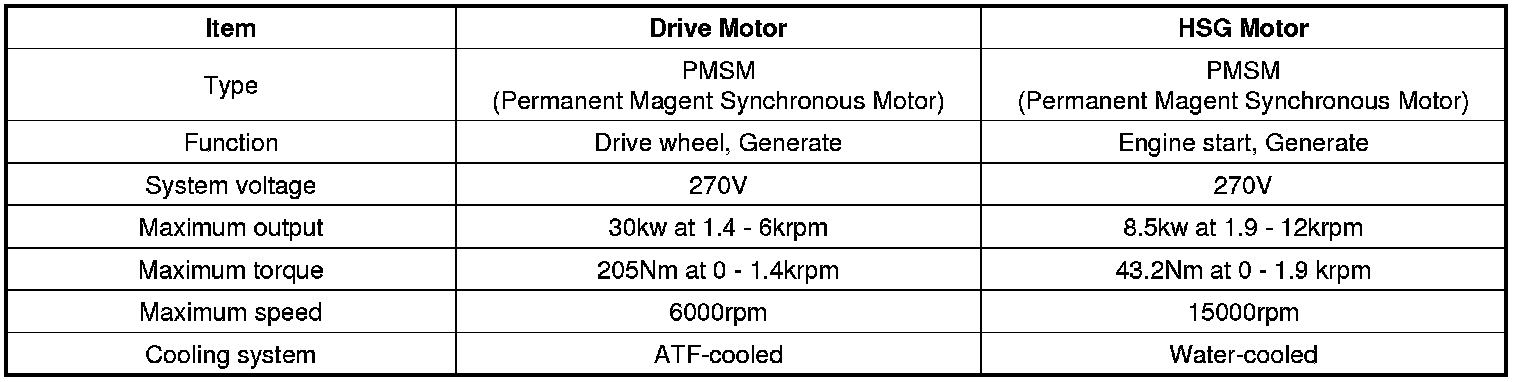

[Drive Motor]





[HSG Motor]

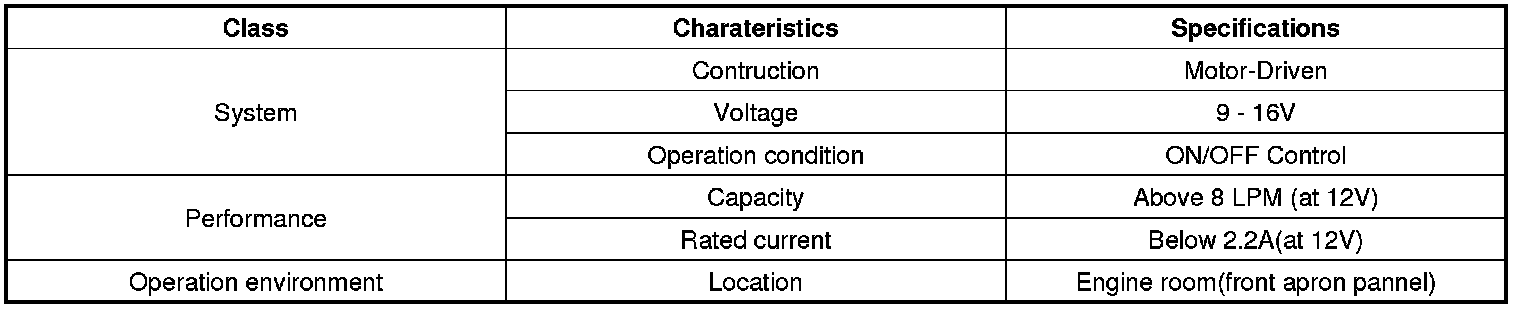

Electric Water Pump(EWP)

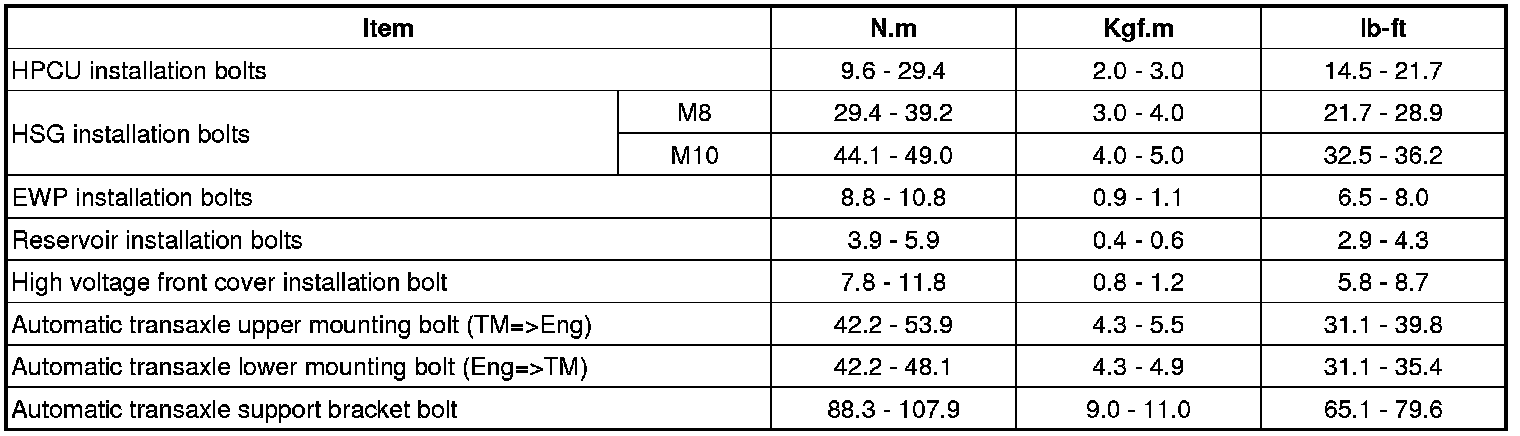

Tightening Torques
