Operation CHARM
: Car repair manuals for everyone.
Home
>>
Hyundai
>>
2012
>>
Sonata L4-2.4L Hybrid
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Service and Repair
>>
Indicators and Gauges
>>
Repair Procedures
Repair Procedures

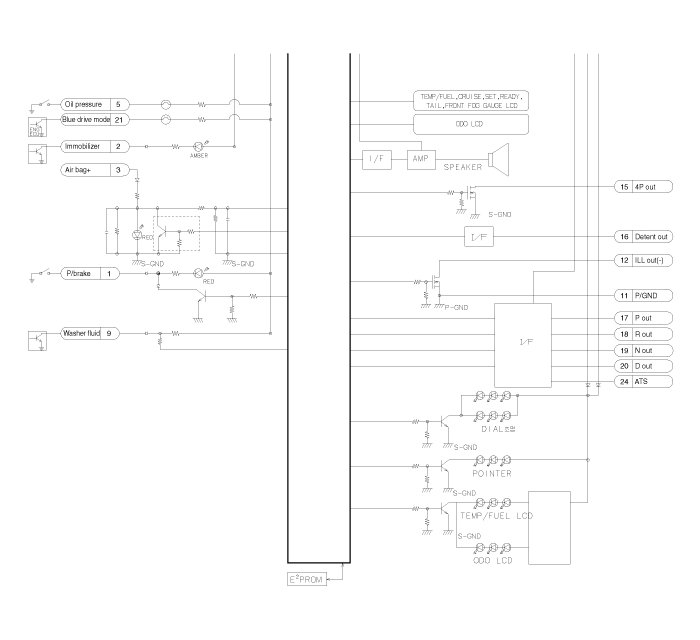

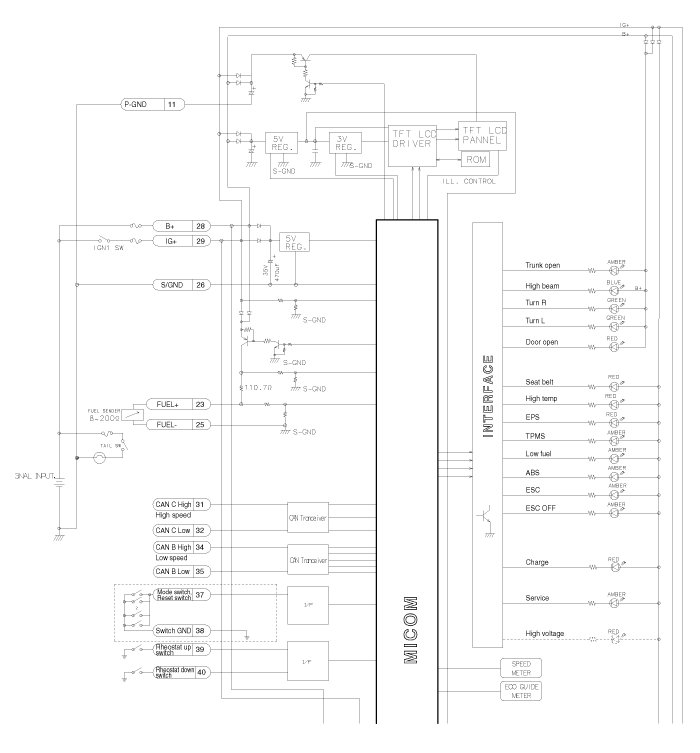

Circuit Diagram
Input/Output Specification
