26 Brake Control Solenoid Valve (26/B VFS)

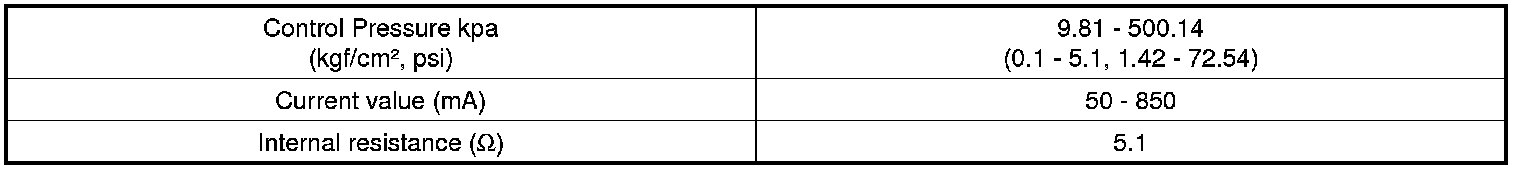

Specifications

Direct control VFS[26/B]
Control type : Normal low type
