Engine Control Module: Diagrams





ECM Terminal And Input/Output signal

ECM Harness Connector




ECM Terminal Function
Connector [CHG-K]













Connector [CHG-A]

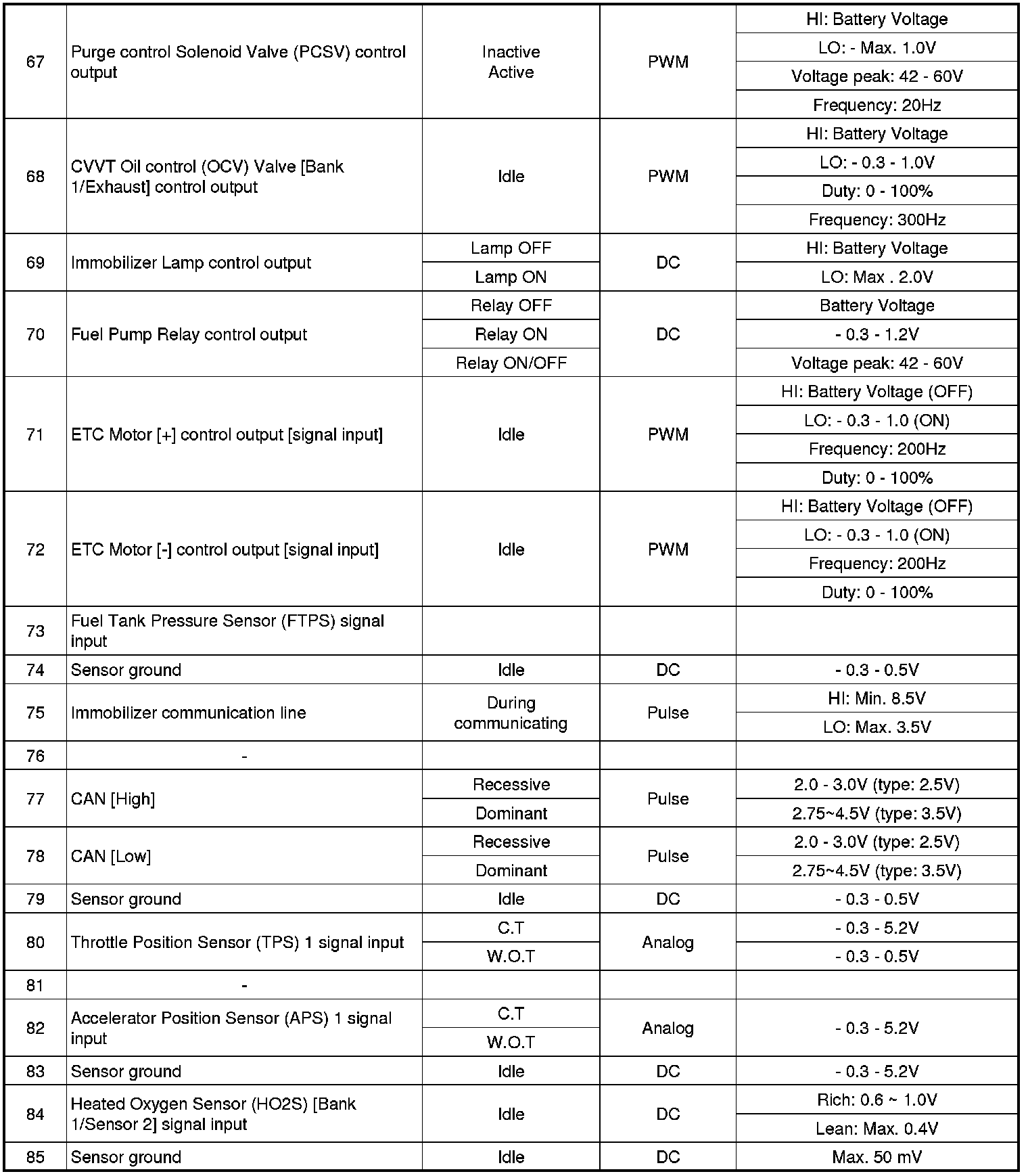

ECM Terminal Input/ Output signal
Connector [CHG-K]





















Connector [CHG-A]










Circuit Diagram
