Interior Moulding / Trim: Service and Repair

Replacement

Front Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damage clips.

Center Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

1. Remove the front seat belt lower anchor.
2. Remove the front door scuff trim and rear door scuff trim.
3. Remove the center lower trim (A).




4. Remove the center upper trim (B).




5. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Rear Pillar Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

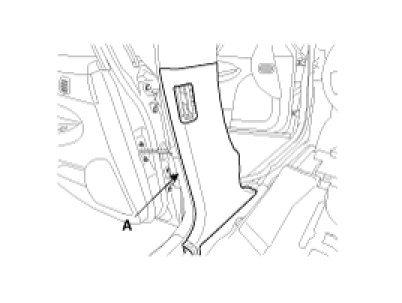

1. Remove the rear pillar trim (A).




2. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Door Scuff Trim Replacement

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to bend or scratch the trim and panels.

Front
1. Remove the front scuff trim (A).




2. Disconnect the connector (A).




3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Rear

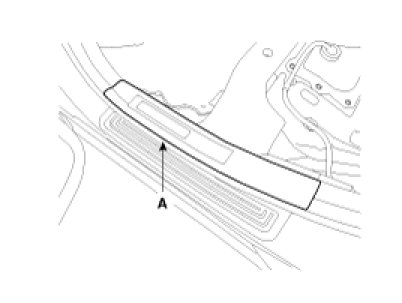

1. Remove the rear door scuff trim (A).

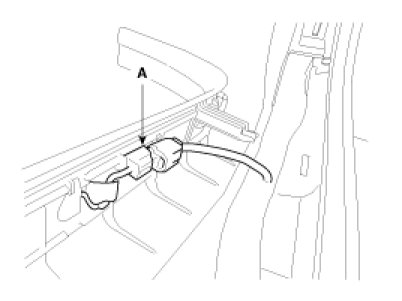

2. Disconnect the connector (A).




3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.

Package Tray Trim Replacement
1. Remove the rear seat assembly.
2. Remove the rear pillar trim (B).

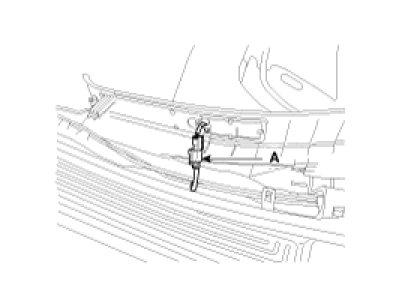

3. Disconnect the cover (A).

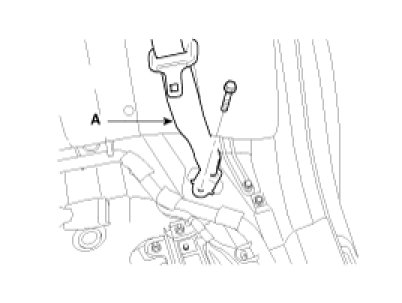

4. Remove the rear seat belt lower anchor (A).




5. After loosening the mounting screws, remove the package tray trim (A).




6. Installation is the reverse of removal.
