Remote Control, Audio - Stereo





Circuit Diagram

Steering Wheel Remote Control

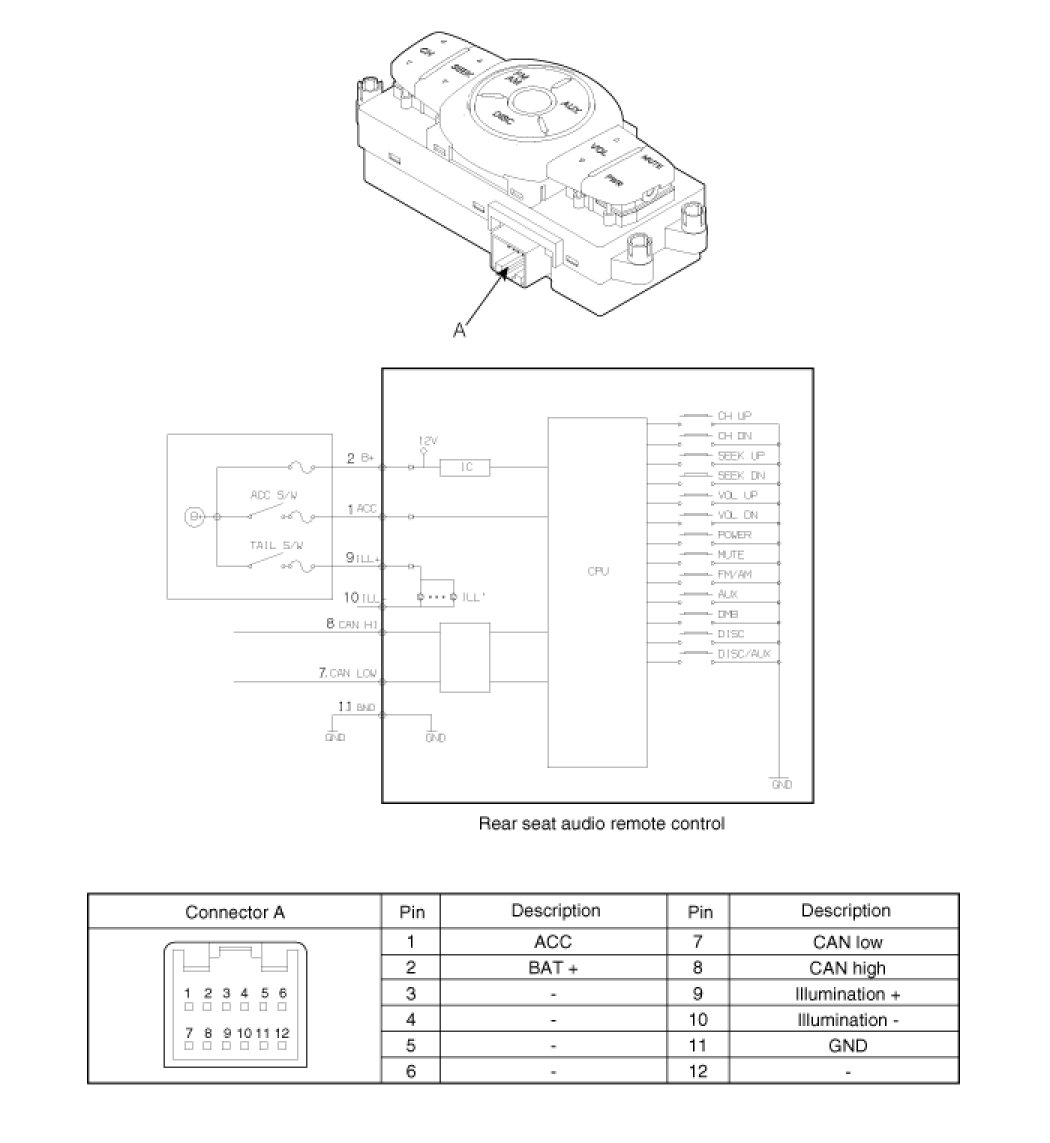

Rear Seat Audio Remote Control
