Axle Shaft Assembly





Specifications





Tightening Torques






CAUTION:
Replace self-locking nuts with new ones after removal.

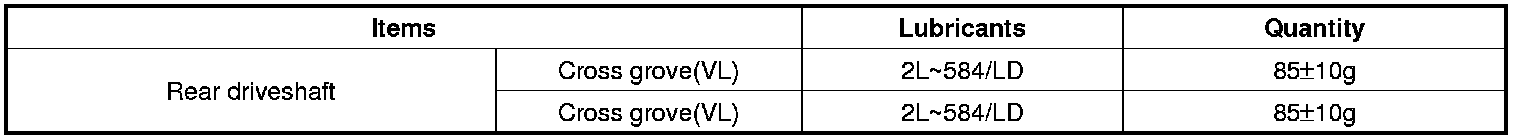

Lubricants
