System Specifications

Specifications

Front Suspension

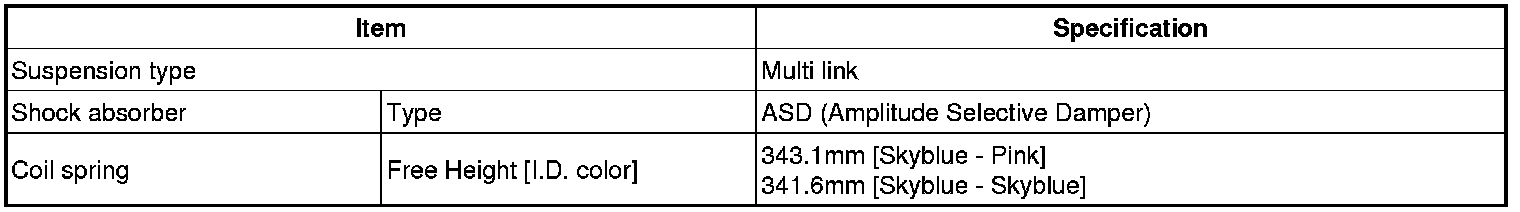

Rear Suspension

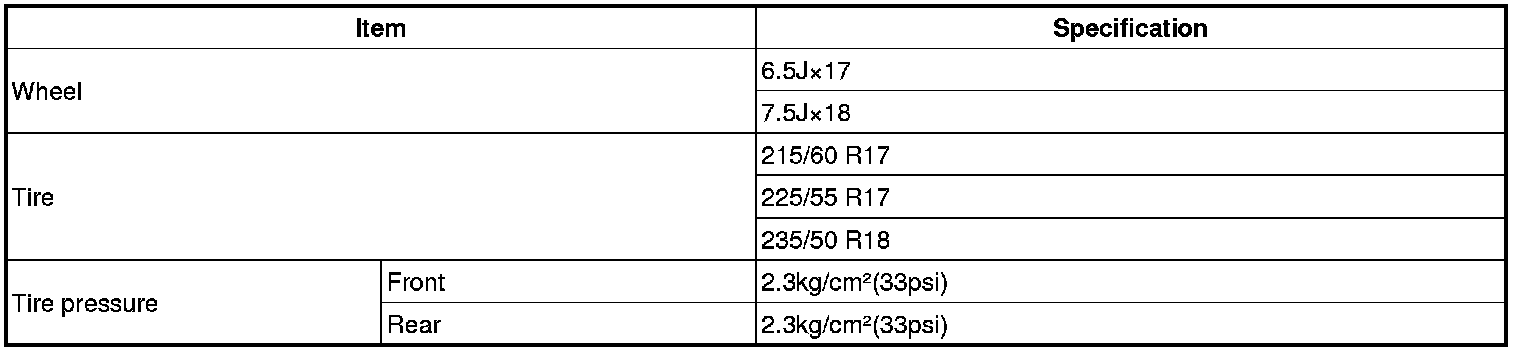

Wheel And Tire

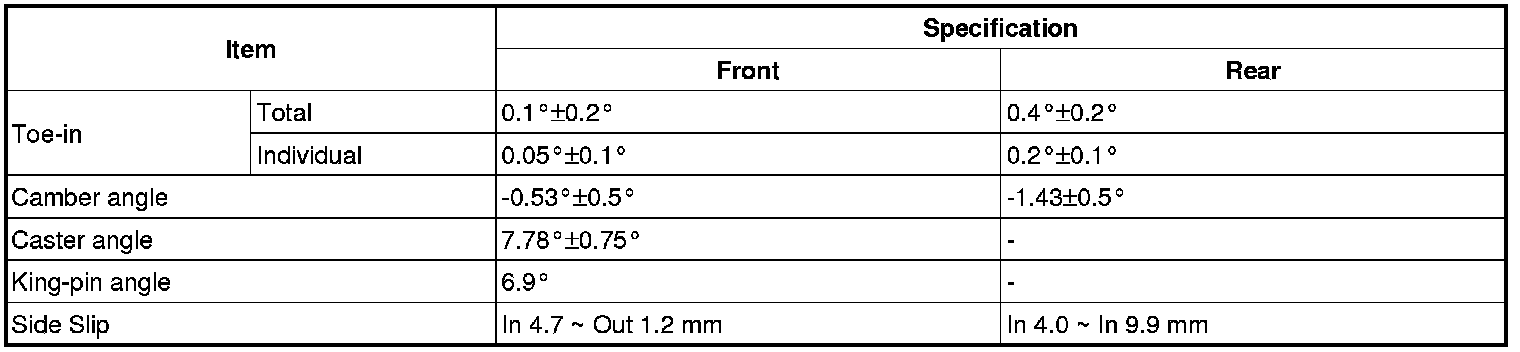

Wheel Alignment

Tightening Torques

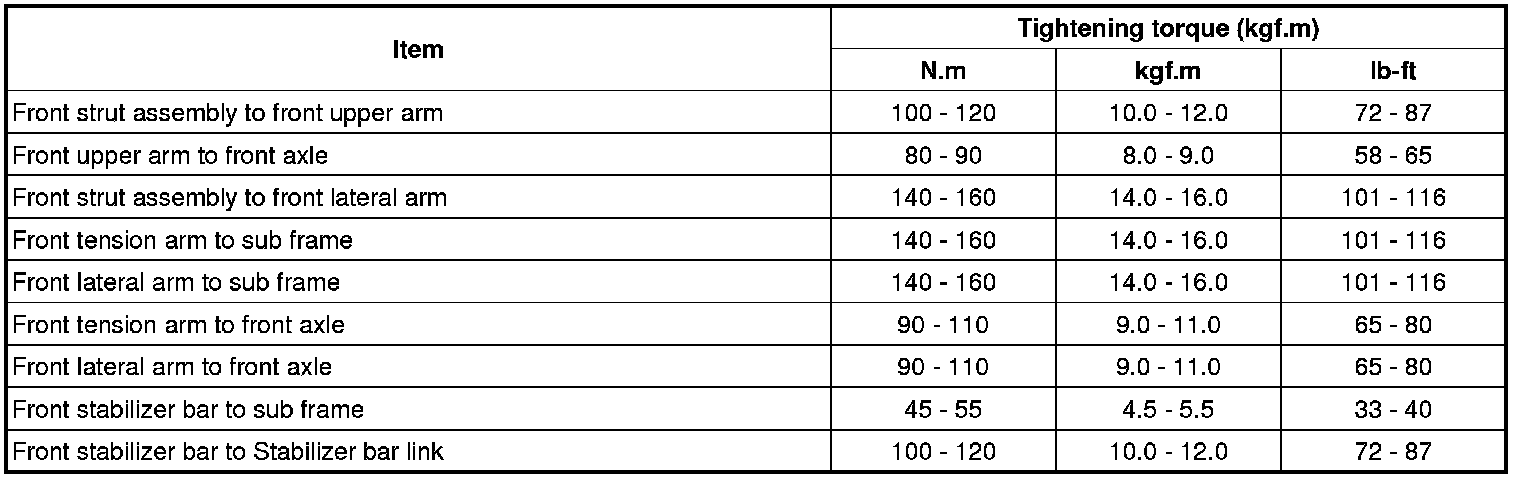

Front Suspension

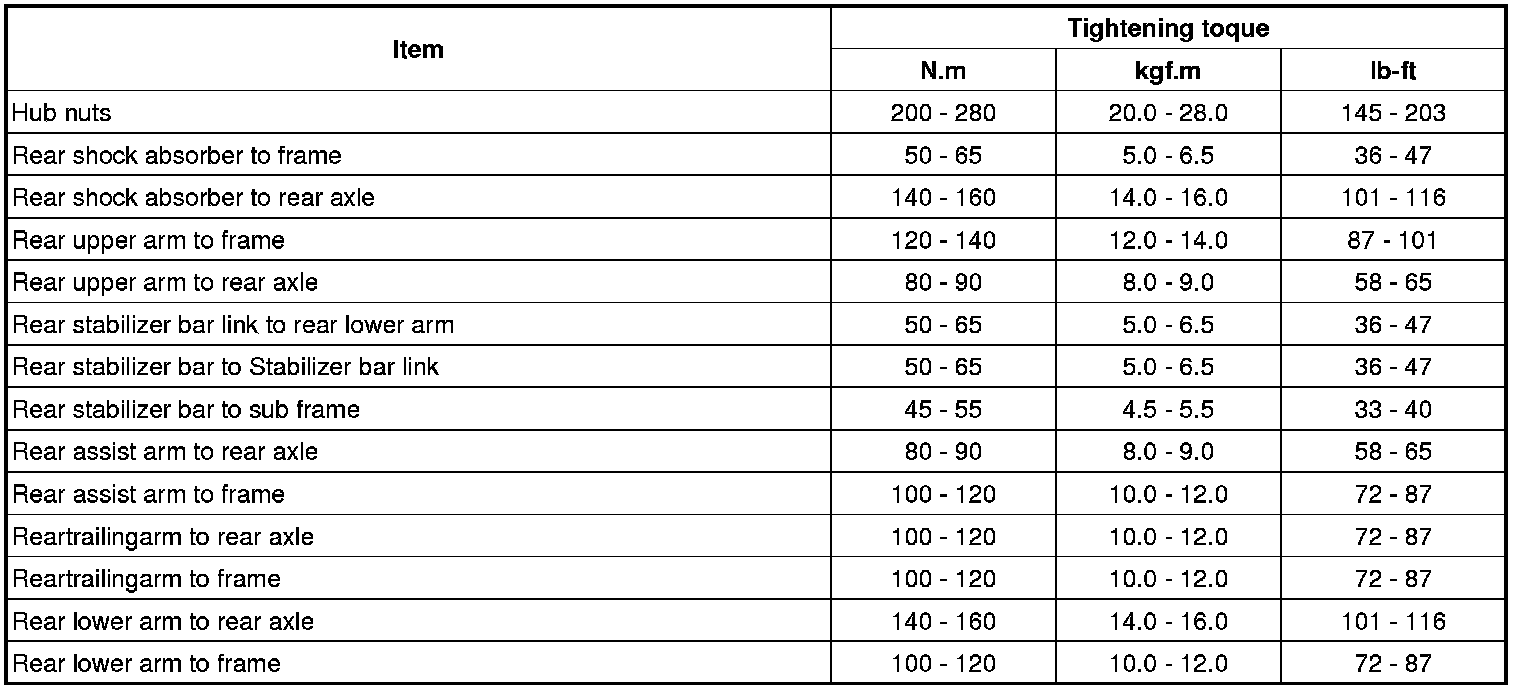

Rear Suspension
