Power Window Switch





Circuit Diagram

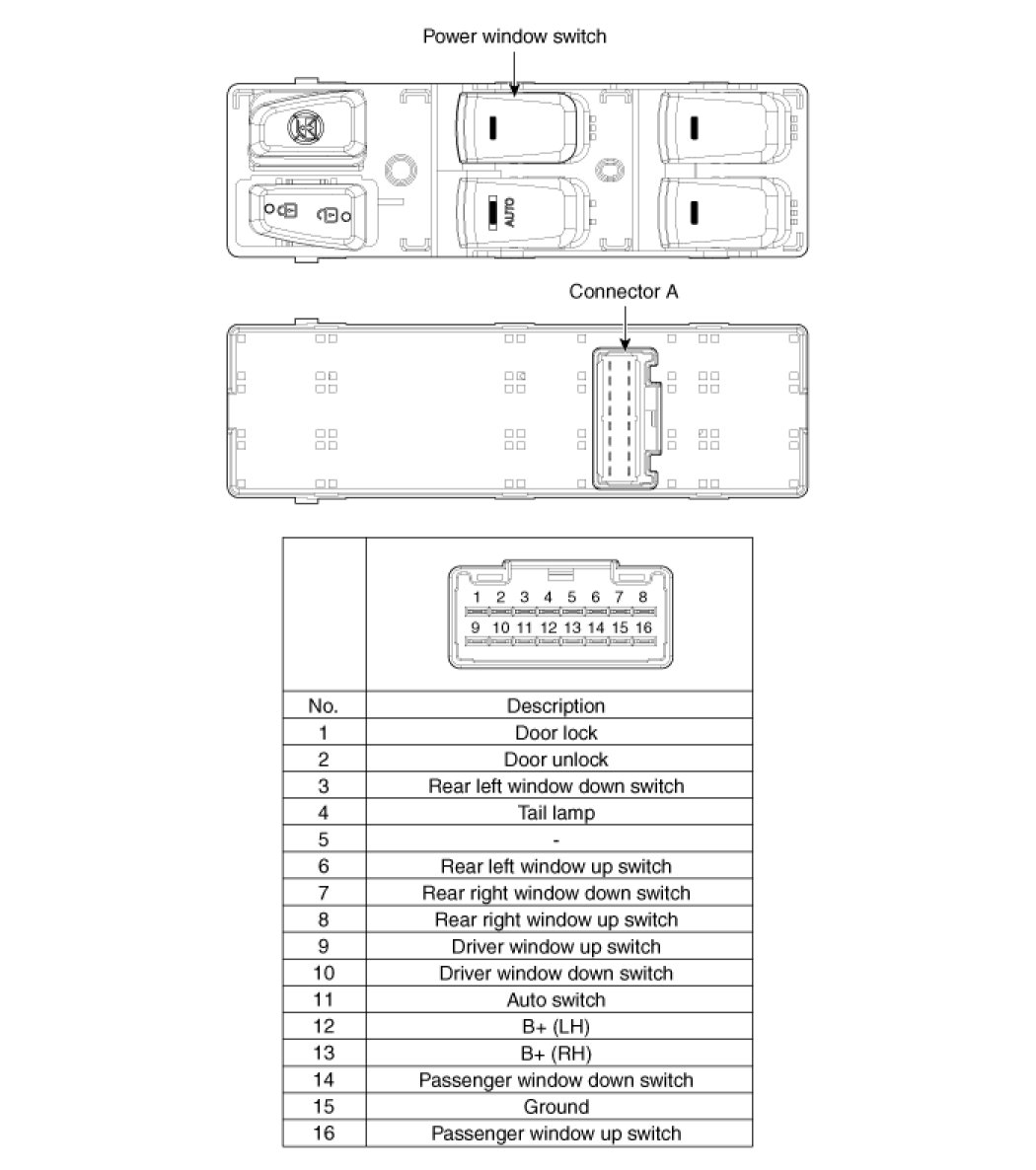

Driver Power Window Switch

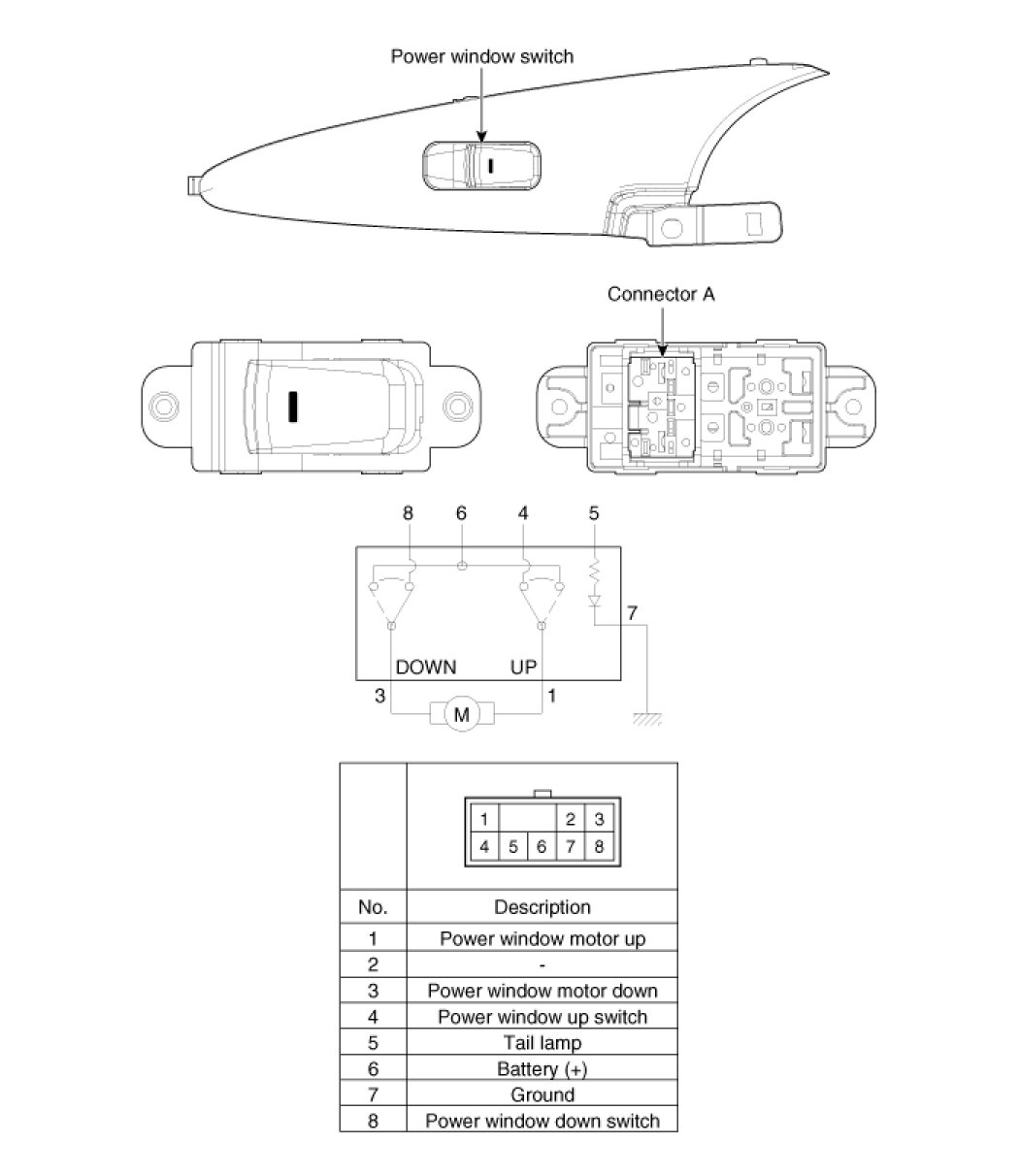

Passenger Power Window Switch





Rear Power Window Switch
