Trip Switch

Inspection

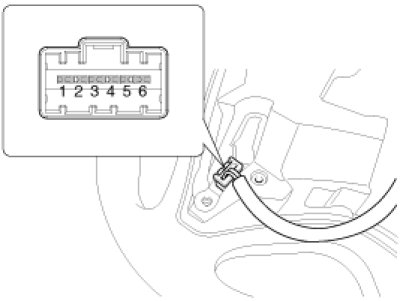

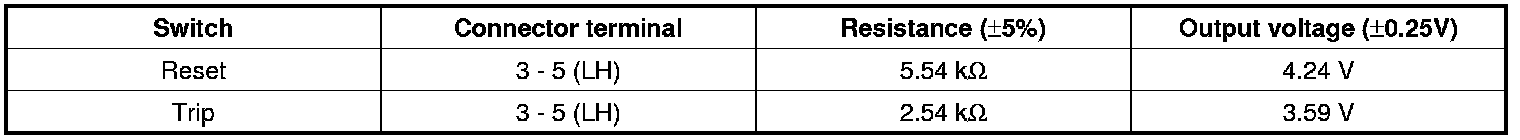

1. Check the audio remote control switch for resistance between No.3 and No.5 terminals in each switch position.

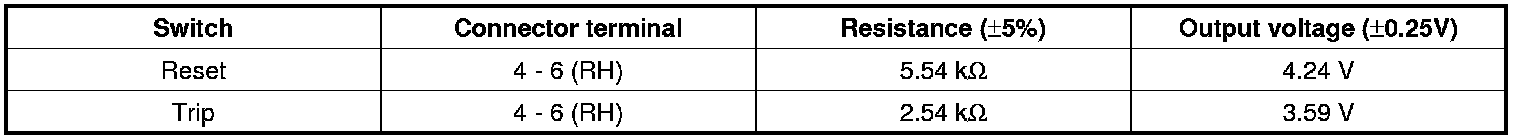

2. In case of RH, check the audio remote control switch for resistance between No.3 and No.4 (No.4 and No.6) terminals in each switch position.

[Trip + Mute]










[Trip Switch]










Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the driver airbag module.

3. Remove the steering wheel.

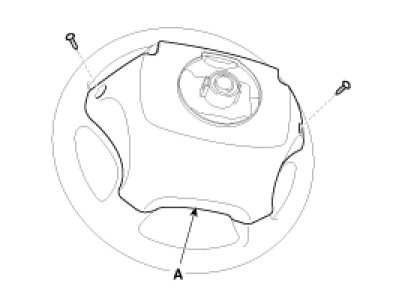

4. Remove the steering wheel cover (A) after loosening the screws.




5. Remove the steering wheel remote control switch connector (A) after loosening the mounting screws.






Installation

1. Reassemble the steering wheel remote control switch after connecting the connector.
2. Reassemble the steering wheel.
3. Reassemble the driver airbag module.

NOTE:
Make sure the audio remote control switch and the airbag module connectors are plugged in properly.
