Dimmer Switch: Service and Repair

Inspection

1. Disconnect the negative (-) battery terminal.
2. Remove the lower crash pad switch (A) from the side crash pad cover by using the scraper.

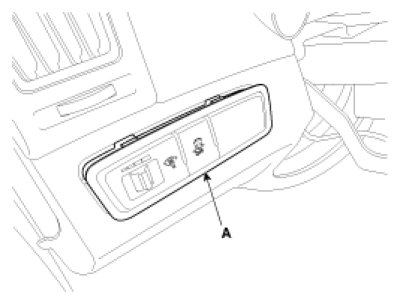

[LHD]

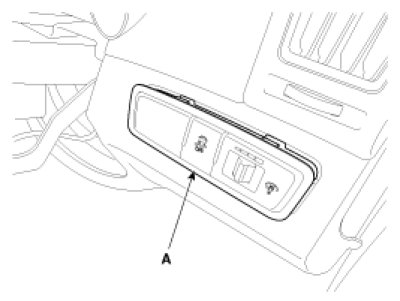

[RHD]




3. Disconnect the rheostat connector (A) from lower crash pad switch.

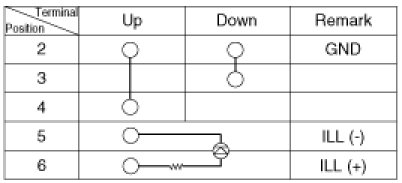

4. Operate the rheostat switch and check for continuity between terminals.
