License Plate Lamp: Service and Repair





Removal

1. Disconnect the negative(-) battery terminal.

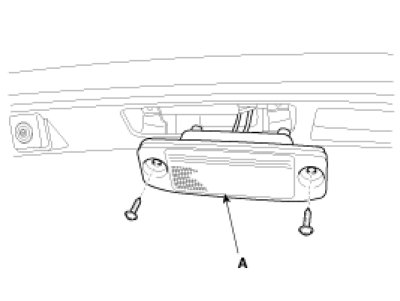

2. Remove the lens (A) after loosening the mounting screws.

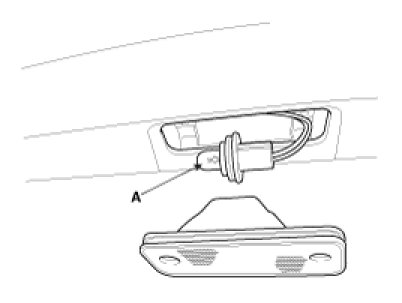

3. Replace the bulb (A).






Installation

1. Install the bulb.
2. Install the license lamp lens.
