Turn Signals: Service and Repair

Removal

1. Disconnect the negative (-) battery terminal.

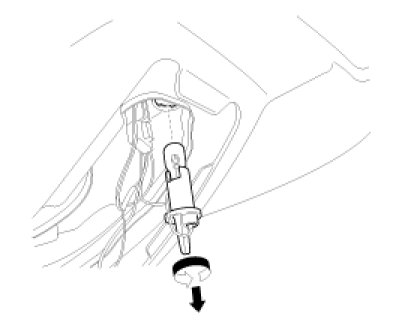

2. Remove the rear combination lamp cover (A).

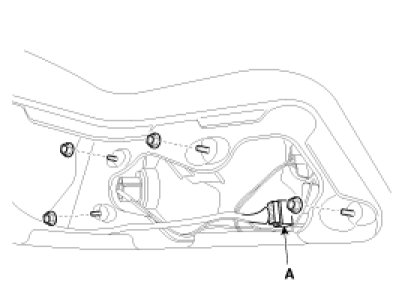

3. Remove the rear combination lamp after loosening the mounting nuts (4EA) and disconnecting the connector (A).




4. If necessary to remove the bulb, remove the bulb after removing rear combination cover.

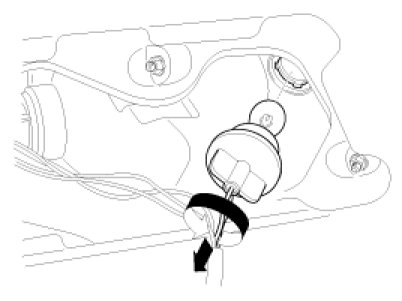

[Tail Lamp / Stop Lamp]

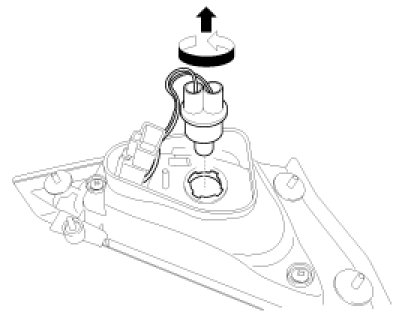

[Turn Signal Lamp]

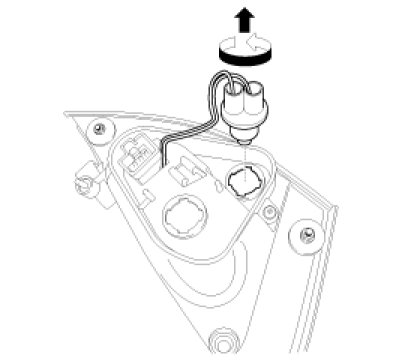

[Tail Lamp]




5. Remove the trunk lid trim.

6. Remove the trunk lid lamp assembly (A) after loosening the mounting nuts (3EA) and disconnecting the connector.
7. Replace the bulb after removing the trunk lid lamp assembly.

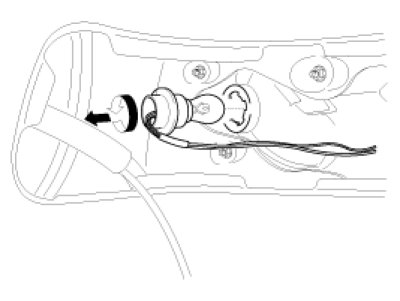

[Tail Lamp]





[Back Up Lamp]






Installation

1. Install the trunk lid lamp assembly.
2. Install the rear combination lamp.
